Product Details:
Payment & Shipping Terms:
|
| Core Components: | Engine | Outward Dimension (Length, Width, Height)mm: | 9920×2500×3990 |
|---|---|---|---|
| Condition: | Used | Tire Number: | 12 |
| Horsepower: | 371hp | Front Axle: | HF9 |
| Tire: | 1200R20 | Water Tank Volume (L): | 450 |
| High Light: | 12CBM Used Concrete Mixer Truck 180HP,Used Concrete Mixer Truck 10m3,10m3 Concrete Mixer Machine Vehicle 180HP |
||

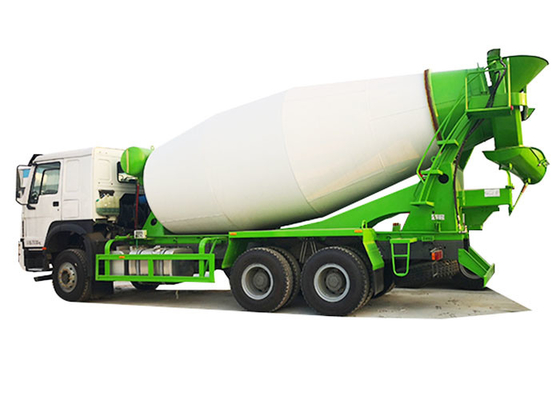

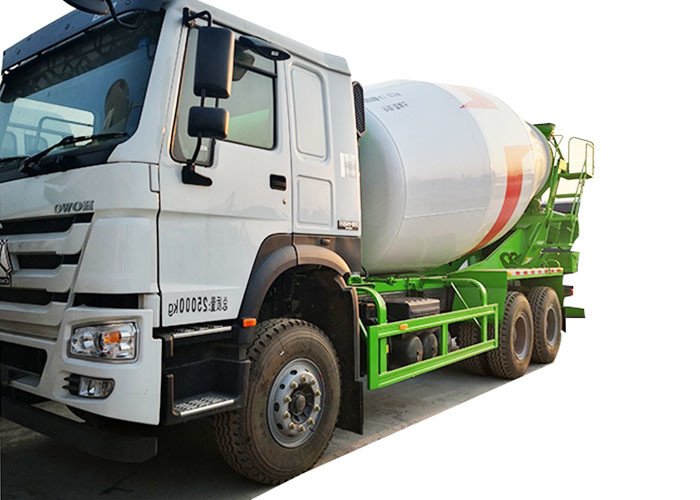

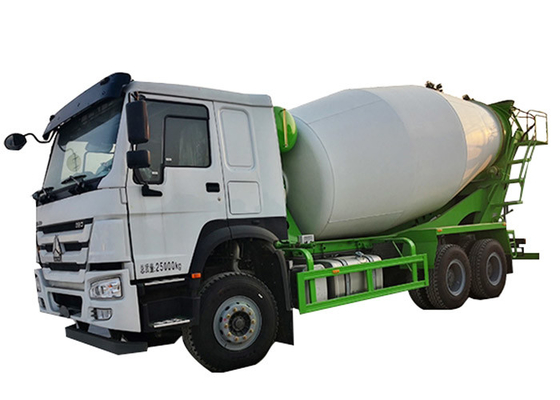

Sinotruck Howo Sinotruk 9 Cubic Meters 10m3 12CBM Cement Mixer Truck Concrete Mixer Truck Price
Product Features:
1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades of discharge are installed on the outlet of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation
of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame uses high intensity square tube with damping in the central area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move more smoothly.
3. The upload production of this mixer adopts multiple advanced technology, which can produce various types of mixer in volume such as 3CBM, 5CBM, 6CBM, 8CBM, 9CBM,10CBM, 12CBM,18CBM etc.
Used Concrete Mixer Truck Of Product parameters:
| Dimension (L*W*H)(mm) | 11250*2500*3980 |
| Tank volume(m3) | 15 |
| Max speed (km/h) | 90 |
| Curb weight (kg) | 16980 |
| Loading Weight (kg) | 30000 |
| Fuel tanker capacity (L) | 300 |
| Fuel consumption (L/km) | 28L/100 |
| Clutch | Single-plate dry clutch Φ 430mm |
| Fuel type | Diesel |
| Horse Power, max (kw/rpm) | 371HP |
| Emission | EURO III |
| Transmission | HW15710 , 10 forwards and 2 reverse |
| Brake system | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | ZF8118 hydraulic steering with power assistance |
| Front axle | HF9 , Steering with double T-cross section beam |
| Rear axle | HC16,Pressed axle housing,central double reduction with differential locks between axles and wheels |
| Color | Optional(as your needs) |
| Tyre | 12.00R20 |
Used Concrete Mixer Truck Of Details:
The advantage of small concrete truck for sale:
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Nude and wax, shipped in bulk or RO-RO ship or flat-deck
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
