Product Details:
Payment & Shipping Terms:
|
| Core Components: | Engine | Drive Wheel: | 6x4 / 10 Wheel / Extended Cab |
|---|---|---|---|
| Condition: | Used | Tire Number: | 10 |
| Horsepower: | 371hp | Front Axle: | HF9 |
| Tire: | 1200R20 | Drive Axle: | HC16 |
| High Light: | 8CBM 6X4 Used Concrete Mixer Truck,6x4 Used Concrete Mixer Truck 8CBM,8CBM Concrete Lorry Mixer Second Hand |
||

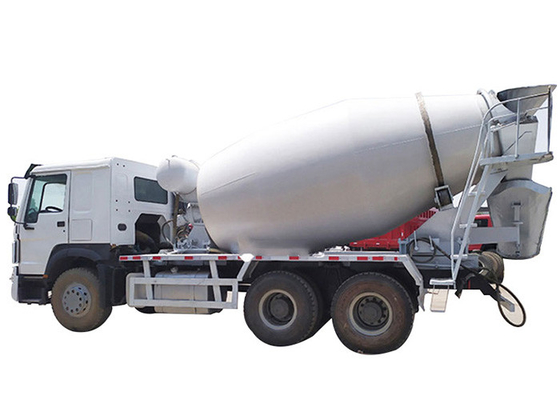

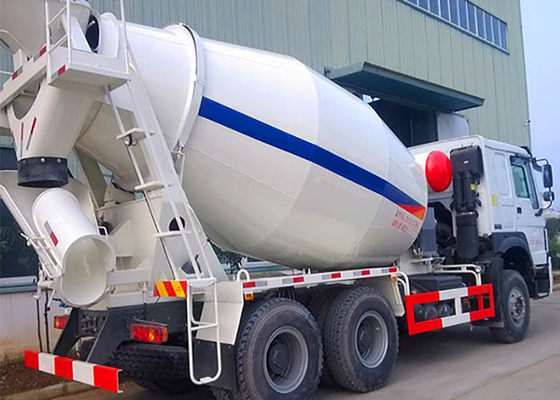

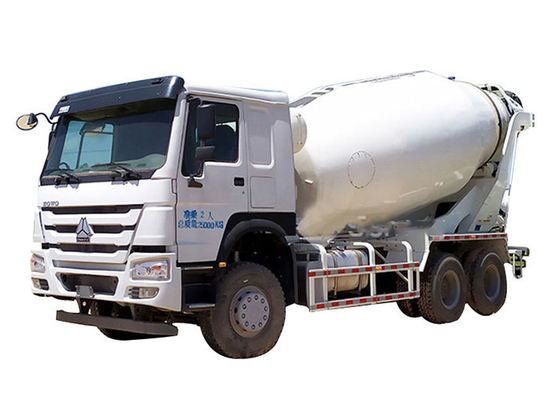

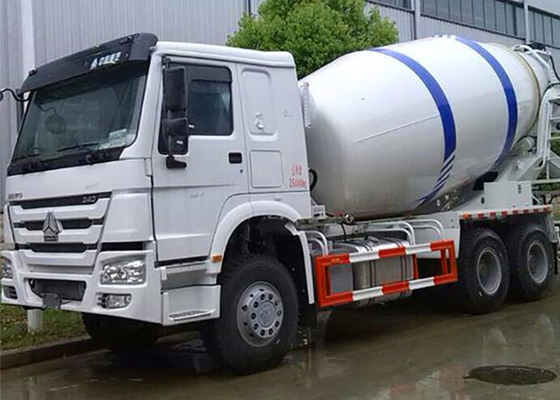

Used Concrete Mixer Truck 6x4 10 Wheel 8 10 12 CBM Concrete Mixing Truck
Used Concrete Mixer Truck Of Product Description:
Model: HW76
Tурe: Extended cab, single berth, up and down front and rear adjustable wheels, VDO instrumentation and control module, double-locking seat belt outer sunshade
1. There are six types of mixer trucks in three countries, five countries, and HOWO at all levels and years, and regular auto trade. Guaranteed accident-free car, modified car. no routine.
2. The company sells original second-hand concrete mixing tanks all the year round, 12, 14, 16, 18, 20, 22, mixing tanks, second-hand cars, new inventory, light-duty mixing tank trucks for 10 to 19 years, including HOWO and other brands.
3 You get what you pay for, please find a regular merchant to buy a car, and all vehicles can be transferred by documents!
Only by looking for a regular dealer can you enjoy regular treatment and help you buy a car that is satisfactory, cost-effective and can make more money.
Used Concrete Mixer Truck Of Product parameters:
|
Model
|
W0615.87
|
WD615.69
|
WD615.69
|
WD615.47
|
WD615.87
|
WD615.69
|
|
Rated PowerKw/rpm
|
213/2200
|
247/2200
|
247/22000
|
213/2200
|
273/2200
|
247/2200
|
|
Maximum torqueNm/rpm
|
1160/1100-1600
|
1350/1100-1600
|
1460/1100-1600 |
1460/1100-1600
|
1160/1000-1600
|
1350/1100-1600
|
|
Displacement
|
9.726L
|
|
||||
|
Tурe:
|
Six cylinders inline,two valve, supercharge intercooler, supercharge postposition.
|
|||||
|
Clutch
|
430diaphragm spring clutch,hydraulic control air assisted.WD615.69. WD615.47 standard430B,
WD615.87 standard430C
|
||||
|
Transmission
|
SINOTRUK HW series 10 gears transmission,main and auxillary transmission structure.main transmission with double counter shaft
auxililary transmission with planetary reduction.wD615.87 HW15710 is standard.WD615.69 and WD615.47 HW19710 is standard. |
||||
|
Front axle
|
HF9 drum-type, rated load of 9t
|
||||
|
Drive axle
|
HC16 double reduction (central reduction+wheel reduction), speed ratio:5.73 4.8
|
||||
|
Suspension
|
Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer, rear suspension is disconnected type. with transverse stabilizer.
|
||||
|
Steering system
|
ZF8098 steering gear,ZF steering gear, ZF steering oil pump. system pressure 18MPa
|
||||
|
Braking system
|
Service brake; dual-circuit air pressure brake:parking brake:spring storage energy without air; auxiliary brake;Engine
exhaustbraking. Engine EVB is optional, and with ABS and optional auto clearance adjusting arm |
||||
|
Electrical system
|
Voltage:24V:generator;1540W:starter:24V.7.5kw;battery; 12V/145AH,2pleces
|
||||
|
Tyre
|
12.00R20: 12.00R24; 12.00-24 Tyre is optional
|
||||
|
Tank volume L
|
300
|
||||
Used Concrete Mixer Truck Of Our Advantages:
1. Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Warranty: One year which comes to the first for the engine, gear box, and axles.
4. After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
1. Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province, which is the manufacturing center of construction machinery. We have passed ISO and CE certificates and our products have been exported to over 20 countries.
2. Why choose us?
A: We only produce very high-quality products, which is cost-effective and win good reputation.
3. Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configurations.
4. How about your After-sales service?
A: We have 3 after-sales, and can provide 24-hour technical support by phone and email.
5. What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days.
6. Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
