Product Details:
Payment & Shipping Terms:
|
| Core Components: | Engine | Driving Type: | 6x4, LHD/ RHD |
|---|---|---|---|
| Condition: | Used | Front Axles Loading Capacity: | 9000 KGS |
| Rear Axles Loading Capacity: | 16000 KGS | Max. Driving Speed(km/h): | 90 |
| Horse Power(HP): | 371 | Tanker Rotate Speed(rpm): | 0~17 |
| High Light: | Sinotruk Used Concrete Mixer Truck,Used Concrete Mixer Truck 10m3,12m3 Second Hand Transit Mixer |
||

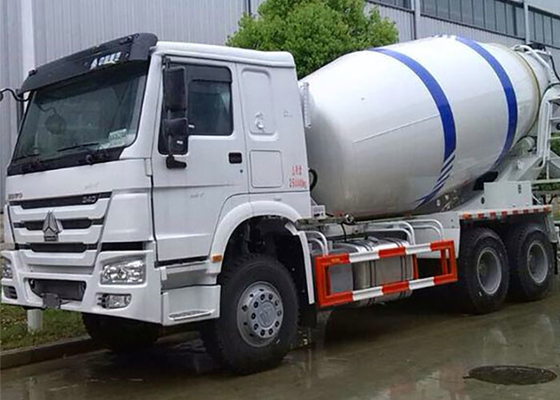

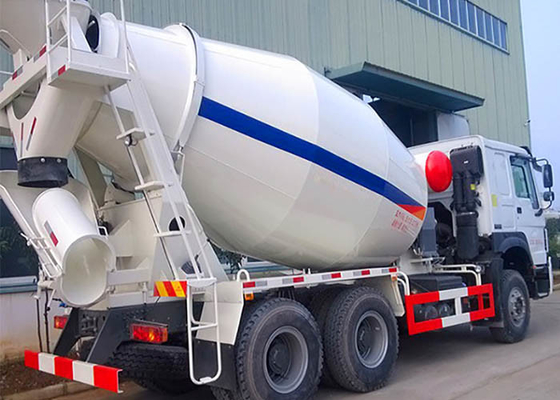

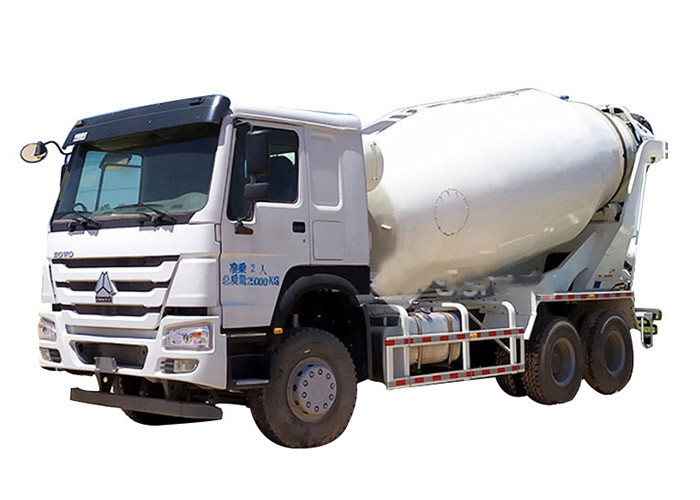

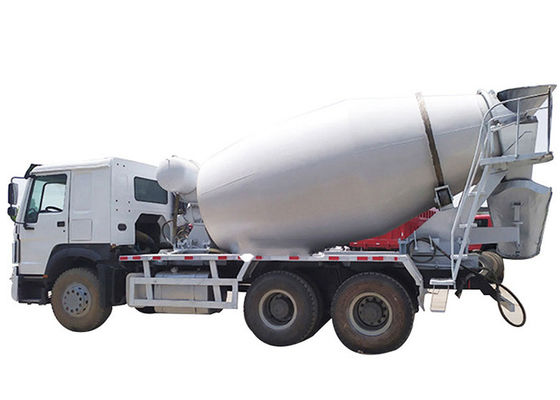

Sinotruk Howo Used Concrete Mixer Truck 8m³ 10m³ 12m³ Concrete Cement Mixer Truck
Used Concrete Mixer Truck Of Product Description:
1. Fully integrated into the customer personalized demand and user-friendly design concept,which is the high-end products of the concrete mixing transportation equipment.
2. Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading residual rate,large volume,high efficiency.
3. Mixing body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can guarantee longer&enough life-span.
4. Mixing leaf has the excellent mixing function to make the finished concrete more uniformly,and to maintain the quality of the concrete;High strength,toughness beam, minimizing vibration.
5. The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle according to the weight and road environment.
Used Concrete Mixer Truck Of Product parameters:
|
brand
|
Sinotruk Howo
|
|
|
Cabin
|
Driving type 6x4, LHD/ RHD
|
|
|
HW76 single bed
|
||
|
Vehicle Main Dimensions
|
Overall dimensions (L x W x H)mm
|
8560*2496*3048mm
|
|
Wheel base (mm)
|
3825+1350
|
|
|
Wheel track (front/rear) (mm)
|
1500/1860
|
|
|
Approach/Departure angle(°)
|
16/24
|
|
|
Weight in KGS
|
Tare Weight
|
10580
|
|
payload
|
14580
|
|
|
Front axles loading capacity
|
9000
|
|
|
Rear axles loading capacity
|
16000
|
|
|
Max. driving speed(km/h)
|
90
|
|
|
Engine
|
Brand
|
Weichai Engine
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
|
Model
|
WD615.47
|
|
|
Horse Power(HP)
|
371
|
|
|
Emission standard
|
Euro II
|
|
|
Gearbox
|
10 forwards & 2 reverse
|
|
|
Steering
|
Left hand drive
|
|
|
Tire
|
12R22.5 tubeless tires with one spare
|
|
|
Mixer Drum
|
Mixer Capacity
|
10 cubic meters
|
|
Drum thickness
|
6mm
|
|
|
Blade thickness
|
4mm
|
|
|
Tanker Material:
|
16MnQ345 Carbon Steel
|
|
|
Filling Rate(%)
|
59
|
|
|
Input Speed (m3/min)
|
≥2.8
|
|
|
Output Speed (m3/min)
|
≥1.2
|
|
|
Surplus Ratio
|
≤0.5
|
|
|
|
Tanker Rotate Speed(rpm)
|
0~17
|
|
|
Hydraulic Pump
|
Italy Brand: PMP
|
|
Drum Drive System
|
Hydraulic Motor
|
Italy Brand: PMP
|
|
|
Speed Reducer
|
Germany Brand: ZF
|
|
|
Radiator
|
KAITONG
|
|
|
Water Tank Volume(L)
|
400
|
Used Concrete Mixer Truck Of Other Brands:
Used Concrete Mixer Truck Of Our Advantages:
1. Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Warranty: One year which comes to the first for the engine, gear box, and axles.
4. After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
1. Can it be customized to my needs?
Of course, the sales manager and technical staff will customize the car according to your needs, confirm the plan and details for you, and arrange production after you sign and confirm!
2. How long is the lead time?
Trailer production cycle is 7-25 days, we will reasonably arrange the production time of the factory according to your urgency, and there are some stock available for you to choose.
3. How long is the warranty period?
We will provide spare parts for free within one year, and provide you with vehicle operation and maintenance skills, life-long vehicle consultation, and we promise that you will receive timely feedback and solutions for any suggestions on trailers
4. What is the price of the trailer?
Different configurations and different prices, the sales manager will provide more cost-effective products according to your budget.
5. What payment methods are available?
You can choose T/T, L/T or other feasible payment methods
