Product Details:
Payment & Shipping Terms:
|
| Dimension(Lx W XH)(unloaded)(mm): | 6900×2300×2800 | Cubage (m³): | 4/6 |
|---|---|---|---|
| Approaching Angle/Departure Angle(°): | 15/16 | Overhang(front/rear) (mm): | 1500/2240 |
| Wheel Base (mm): | 3800 | Power, Max(kw/rpm): | 180HP |
| Thickness: | 4-6mm | Hydraulic Pump: | ARK Brand |
| High Light: | ISO Sinotruk Used Cement Mixer Truck,Used Cement Mixer Truck 180Hp,180Hp 8 Wheeler Concrete Truck |
||

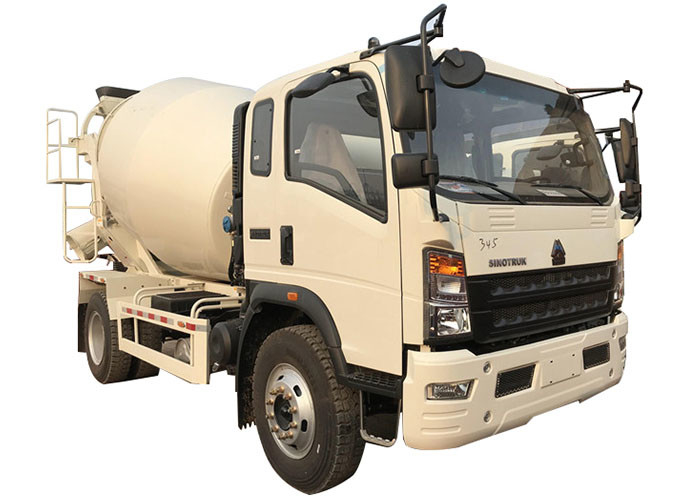

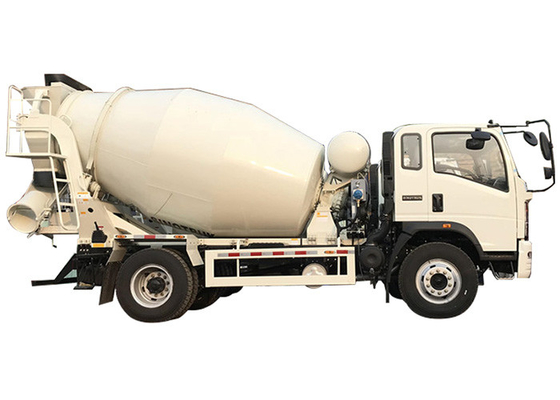

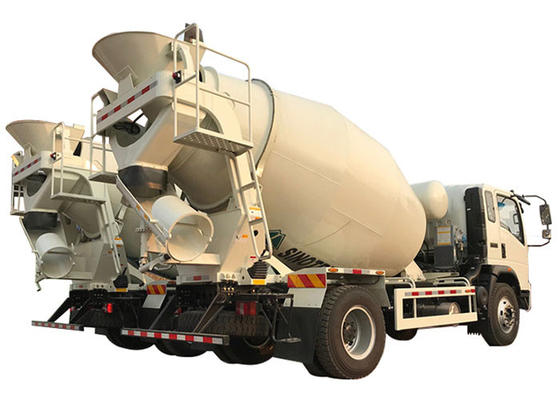

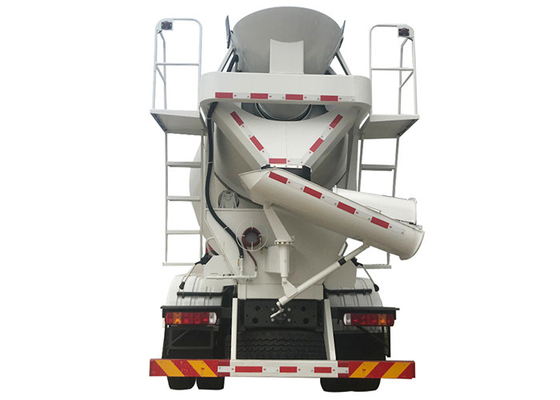

Sinotruk Howo 8m³ Small 4x2 180 Hp Used Concrete Mixer Truck Good Condition
Used Concrete Mixer Truck Of Product Description:
1. Fully integrated into the customer personalized demand and user-friendly design concept,which is the high-end products of the concrete mixing transportation equipment.
2. Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading residual rate,large volume,high efficiency.
3. Mixing body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can guarantee longer&enough life-span.
4. Mixing leaf has the excellent mixing function to make the finished concrete more uniformly,and to maintain the quality of the concrete;High strength,toughness beam, minimizing vibration.
5. The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle according to the weight and road environment.
Used Concrete Mixer Truck Of Product parameters:
| CHASSIS SPECIFICATION | |||
| Dimension(Lx W xH)(unloaded)(mm) | 6900×2300×2800 | ||
| Cubage (m³) | 4/6 | ||
| Approaching angle/Departure angle(°) | 15/16 | ||
| Overhang(front/rear) (mm) | 1500/2240 | ||
| Wheel base (mm) | 3800 | ||
| Max speed(km/h) | 90 | ||
| Curb weight(kg) | 9500 | ||
| Rated Weight(kg) | 7000 | ||
|
Engine (Steyr technology, made in China) |
Model | MC05.180-40 | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 180HP | ||
| Emission | EURO 2/ 3/ 4 | ||
| Dislacement | 4.58L | ||
| Fuel tanker capacity (L) | 200L | ||
| Transmission | HW90510. | ||
| Front axle | 1090 | ||
| Rear axle | 9T | ||
| Tire | 9.00R20 | ||
| Brake System |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | 2080 with half bed and with air condition | ||
| Mixer Tank Specification | |||
| Mixing capacity | 4-6 cubic meters | ||
| Thickness | 4-6mm | ||
| Reduction gear | Italian TOP | ||
| Hydraulic pump | ARK Brand | ||
| Motor | ARK Brand | ||
| Feeding speed | ≥4m3/min | ||
| Discharge speed | ≥3m3/min | ||
| Discharge residual rate | ≤0.8% | ||
Used Concrete Mixer Truck Of Details:
Used Concrete Mixer Truck Of Our Advantages:
1. Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Warranty: One year which comes to the first for the engine, gear box, and axles.
4. After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
