Product Details:
Payment & Shipping Terms:
|
| Dimension(Lx W XH)(unloaded)(mm): | 6900×2300×2800 | Cubage (m³): | 4/6 |
|---|---|---|---|
| Approaching Angle/Departure Angle(°): | 15/16 | Overhang(front/rear) (mm): | 1500/2240 |
| Wheel Base (mm): | 3800 | Power, Max(kw/rpm): | 180HP |
| Thickness: | 4-6mm | Hydraulic Pump: | ARK Brand |
| High Light: | 3800mm Used Concrete Mixer Truck,Used Concrete Mixer Truck Howo 8m3,8m3 Concrete Mobile Mixer |
||

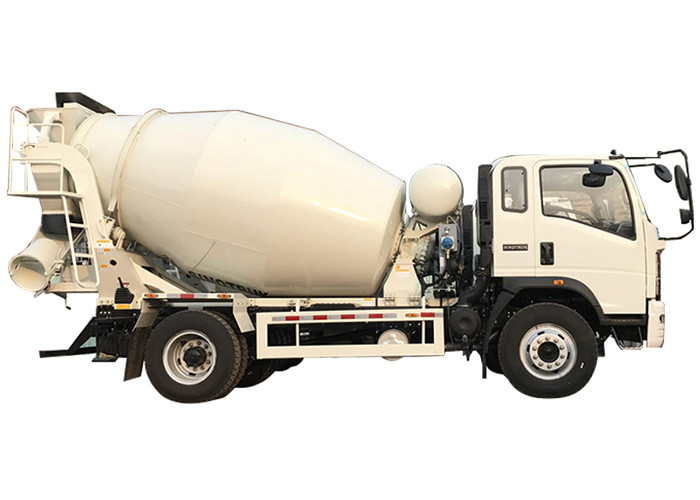

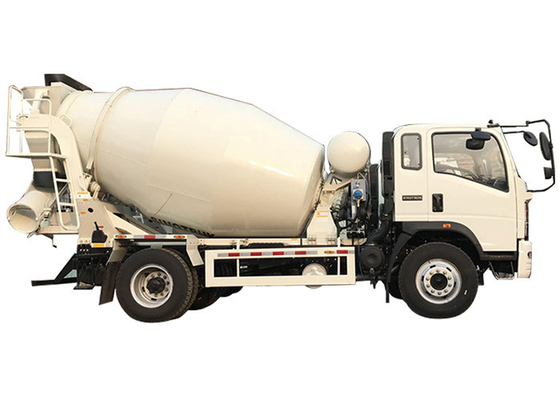

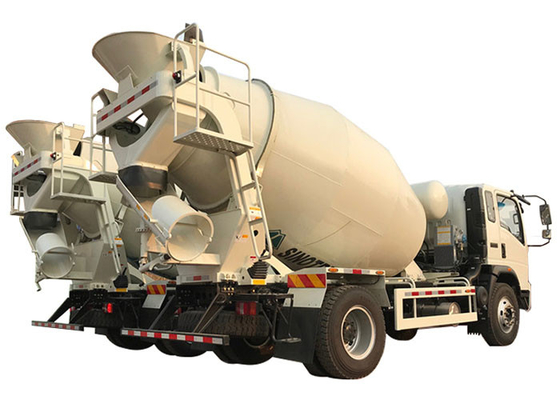

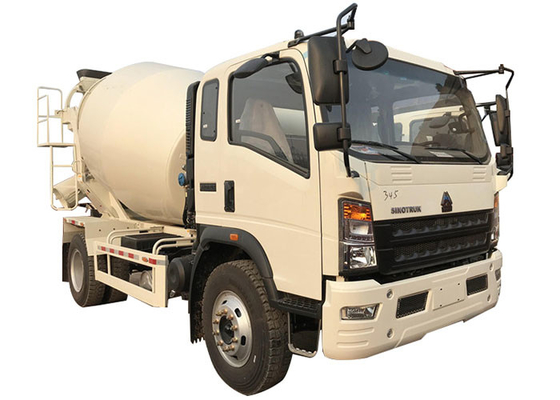

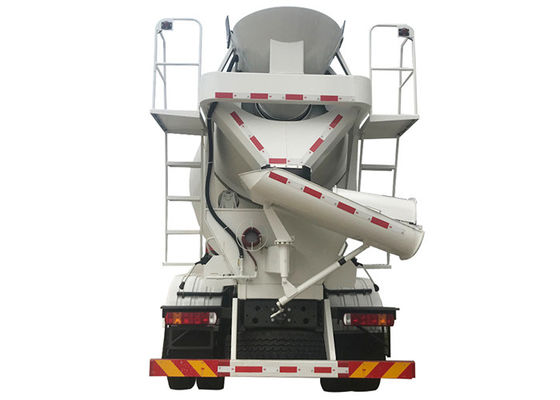

Sinotruk Howo 8m³ Small 4x2 180 Hp Used Concrete Mixer Truck Good Condition
Used Concrete Mixer Truck Of Product Description:
This Concrete Mixer Truck series of products produced according to Germany's proprietary technologySteel material requirements
production process and acceptance criteria all adopt the technology provided by the German standards.
This products use the imported Brand of reducer,motor and hydraulic pump.Dynamic force output by the second class chassis full power take off through the shaft power to the hydraulic pump,hydraulic pump produces hydraulic energy through tubing to the hydraulic motor,hydraulic motor to convert hydraulic energy into kinetic energy and through reducer then reduce and increase twist to the mixing tankby adjusting the(double acting variable)servo controller of hydraulic pump Angle so as torealize controlling turning and speed of mixing drum then to realize the concrete charging, stir and discharging operation.
Used Concrete Mixer Truck Of Product parameters:
| CHASSIS SPECIFICATION | |||
| Dimension(Lx W xH)(unloaded)(mm) | 6900×2300×2800 | ||
| Cubage (m³) | 4/6 | ||
| Approaching angle/Departure angle(°) | 15/16 | ||
| Overhang(front/rear) (mm) | 1500/2240 | ||
| Wheel base (mm) | 3800 | ||
| Max speed(km/h) | 90 | ||
| Curb weight(kg) | 9500 | ||
| Rated Weight(kg) | 7000 | ||
|
Engine (Steyr technology, made in China) |
Model | MC05.180-40 | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 180HP | ||
| Emission | EURO 2/ 3/ 4 | ||
| Dislacement | 4.58L | ||
| Fuel tanker capacity (L) | 200L | ||
| Transmission | HW90510. | ||
| Front axle | 1090 | ||
| Rear axle | 9T | ||
| Tire | 9.00R20 | ||
| Brake System |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | 2080 with half bed and with air condition | ||
| Mixer Tank Specification | |||
| Mixing capacity | 4-6 cubic meters | ||
| Thickness | 4-6mm | ||
| Reduction gear | Italian TOP | ||
| Hydraulic pump | ARK Brand | ||
| Motor | ARK Brand | ||
| Feeding speed | ≥4m3/min | ||
| Discharge speed | ≥3m3/min | ||
| Discharge residual rate | ≤0.8% | ||
Used Concrete Mixer Truck Of Details:
Used Concrete Mixer Truck Of Our Services:
1. One year quality assurance for three key parts: axles, engine, transmission.
2. Other spare part could be supplied by OEM at coast prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
5. All trucks and trailers are new and be customized to meet all your requirement.
6. All trucks and trailers are with 12 months quality guarantee.
7. CKD and SKD are available.
8. Technical support are provided.
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
