| Core Components: | Engine | Outward Dimension (Length, Width, Height)mm: | 9920×2500×3990 |
|---|---|---|---|
| Condition: | Used | Tire Number: | 12 |
| Horsepower: | 371hp | Front Axle: | HF9 |
| Tire: | 1200R20 | Water Tank Volume (L): | 450 |
| High Light: | Used Concrete Mixer Truck 450L,8X4 Used Concrete Mixer Truck,450L 12 Wheel Sinotruk Transit Mixer |
||

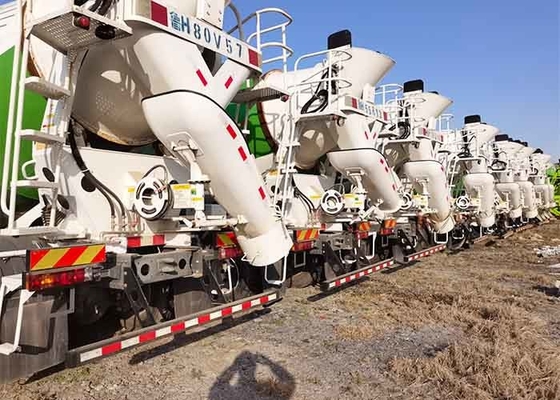

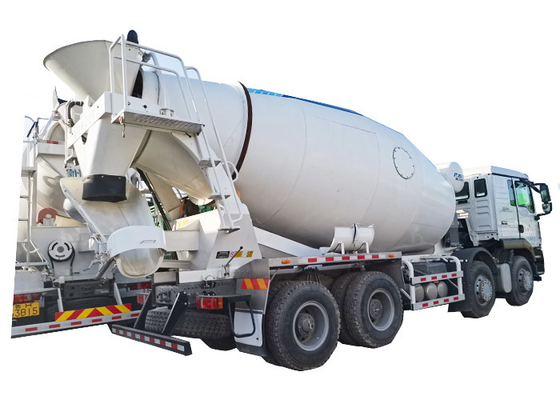

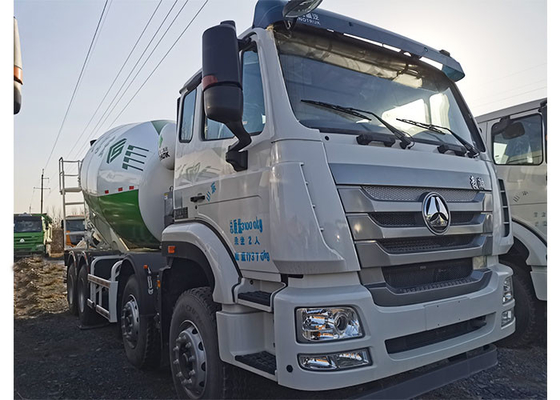

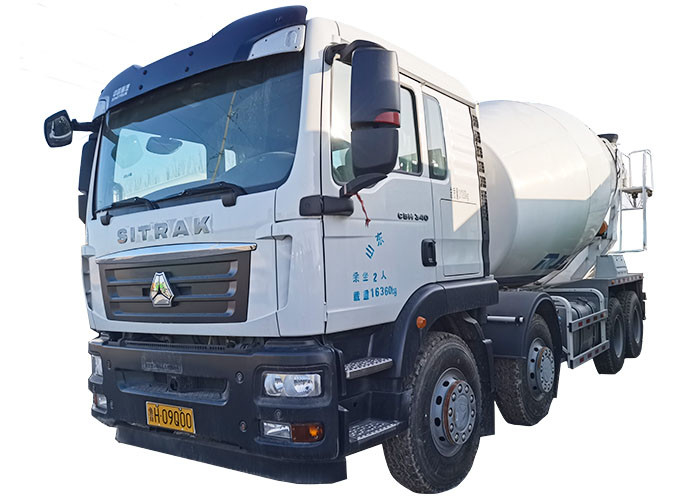

Used and New Howo 8X4 12 Wheel Euro 2 4 Concrete Cement Mixer Truck For Sale
Used Concrete Mixer Truck Of Product Description:
Description
A concrete mixer truck (often colloquially called a cement mixer) is a device that homogeneously combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.
Application
Concrete mixer truck is made to mix concrete and transport it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They also be loaded from a " central mix" plant; with this process the material has already been mixed prior to loading.
Used Concrete Mixer Truck Of Product parameters:
| CHASSIS SPECIFICATION | |||
| Dimension(Lx W xH)(unloaded)(mm) | 6900×2300×2800 | ||
| Cubage (m³) | 4/6 | ||
| Approaching angle/Departure angle(°) | 15/16 | ||
| Overhang(front/rear) (mm) | 1500/2240 | ||
| Wheel base (mm) | 3800 | ||
| Max speed(km/h) | 90 | ||
| Curb weight(kg) | 9500 | ||
| Rated Weight(kg) | 7000 | ||
|
Engine |
Model | MC05.180-40 | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 180HP | ||
| Emission | EURO IV | ||
| Dislacement | 4.58L | ||
| Fuel tanker capacity (L) | 200L | ||
| Transmission | HW90510. | ||
| Front axle | 1090 | ||
| Rear axle | 9T | ||
| Tire | 9.00R20 | ||
| Brake System |
Service brake: dual circuit compressed air brake |
||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | 2080 with half bed and with air condition | ||
| Mixer Tank Specification | |||
| Mixing capacity | 4-6 cubic meters | ||
| Thickness | 4-6mm | ||
| Reduction gear | Italian TOP | ||
| Hydraulic pump | ARK Brand | ||
| Motor | ARK Brand | ||
| Feeding speed | ≥4m3/min | ||
| Discharge speed | ≥3m3/min | ||
| Discharge residual rate | ≤0.8% | ||
Used Concrete Mixer Truck Of Details:
The advantage of small concrete truck for sale:
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Our Service:
High quality first based on our products
We are a professional truck and trailer supplier, and we have many kinds of trucks and trailers for your reference and choices.
Thoughtful and meticulous one-on-one service
We have professional sales who can answer your questions and meet your requirements according to your inquiry. Besides, our professional senior engineers can design and produce the product according to your requirements.
Customers first and perfect service
We will accurately define, fully understand your needs and try our best to meet your requirements quickly. We also provide all the whole service during pre-sale, in sale and after-sale.
