Product Details:
Payment & Shipping Terms:
|
| Model: | GCW40000kgs Driving Type 6×4 | Wheel Base (mm): | 3825+1500 |
|---|---|---|---|
| Condition: | Used/New | Tire Number: | 10+1 |
| Front Wheel Track (mm): | 2022/2041 | Rear Wheel Track (mm): | 1830 |
| Front Overhang (mm): | 1500 | Wheel: | Rims: 8.5-20,10 Hole-steel |
| High Light: | 6X4 Used Concrete Mixer Truck,HOWO Used Concrete Mixer Truck,1500mm Used Concrete Mixer Truck |
||

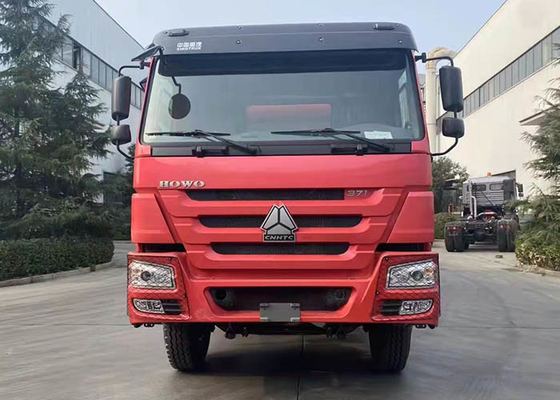

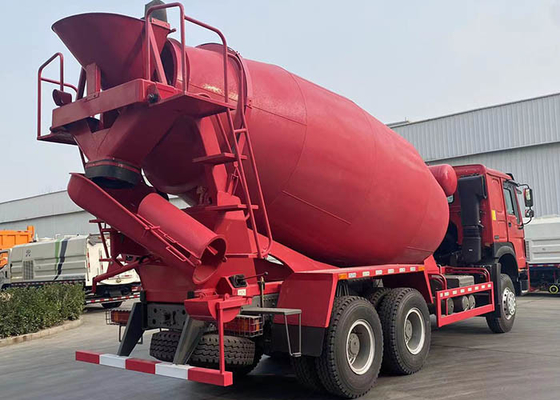

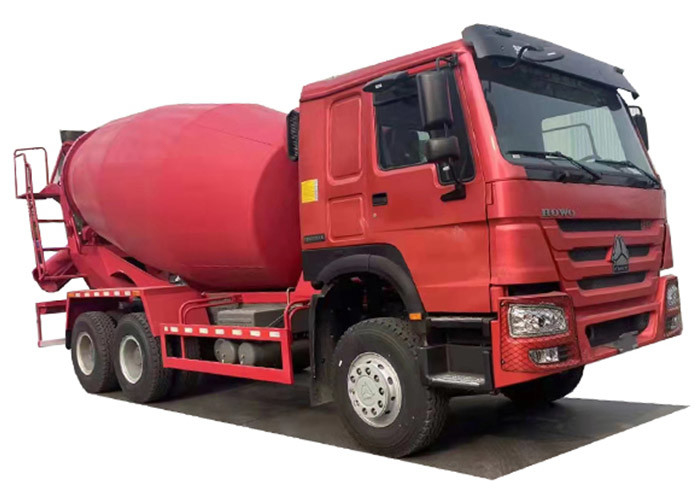

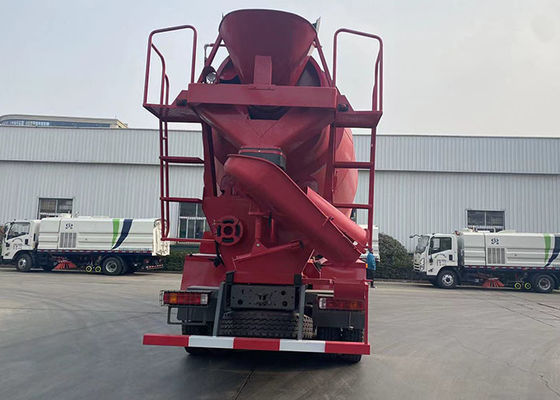

2021 Sinotruck HOWO 6X4 10 Wheels Used Concrete Mixer Truck
Used Concrete Mixer Truck Of Product Description:
1.Fully integrated into the customer personalized demand and user-friendly design concept,which is the high-end products of the heavy duty concrete mixer transportation equipment.
2.Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading residual rate,large volume,high efficiency,for the heavy duty concrete mixer.
3.The heavy duty concrete mixer body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can guarantee longer&enough life-span.
4.The heavy duty concrete mixer leaf has the excellent mixing function to make the finished concrete more uniformly,and to maintain the quality of the concrete;High strength,toughness beam, minimizing vibration.
5.The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle according to the weight and road environment,for heavy duty concrete mixer.
6.Design of the luxury dashboard.Preferably with the interior material of the cab.Both sound insulation and tightness are good. Indoor noise less than 70 db.
7.The heavy duty concrete mixer can satisfy Euro2, Euro3 and Euro4 emissions. Light weight, reduce fuel consumption and good economy.
8.Low maintenance cost, integrated design, ultra-long (60,000km) oil change interval and maintenance interval.Electric control high pressure common rail technology, Bosch 3 technology, the only authorized use in China.
9.The heavy duty concrete mixer key components are imported from the original, and other major components are sourced globally,to ensure the quality of products.
Used Concrete Mixer Truck Of Product parameters:
| Model | GCW40000kgs Driving Type 6×4 | |
| Engine | Engine model: WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turo-charging & intercooling Maximum output: 371hp(273Kw) at 2200 rpm according to DIN Maximum torque: 1450Nm at 1300~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio: 17:1 Specific fuel consumption: 198g/kWh; Engine oil filling quantity: 20L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 71oC Rigid fan Twin cylinder air compressor |
|
| Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
|
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam |
|
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 5.73 |
|
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs and bogie springs Spare wheel carrier: with one spare wheel |
|
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
|
| Braking System | Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
| Wheel & Types | Rims: 8.5-20,10 hole-steel Types: 12.00R20, |
|
| Driver's cab | HW76 Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air conditioner, adjustable steering wheel. | |
| Electrical System | Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Dimensions in mm | Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Tank capacity (mm) |
3825+1500 2022/2041 1830 1500 1850 19 23 10CBM Imported pump, motor and reduer |
| Weight in kg | Permissible loading capacity (kg) Dead weight (kg) Gross vehicle weight (kg) Gross combination weight (kg) Front axle loading capacity (kg) Rear axle loading capacity (kg) |
30000 12090 25000 30000 9000 2×16000 |
| Performance | Maximum driving speed(km/h) Maximum gradeability (%) Minimum ground clearance(mm) Minimum turning radius (m) Fuel consumption(L/100km) |
78(reference data) 36 314 15 40(reference data) |
Used Concrete Mixer Truck Of Our Advantages:
1. Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Warranty: One year which comes to the first for the engine, gear box, and axles.
4. After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
1. Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province, which is the manufacturing center of construction machinery. We have passed ISO and CE certificates and our products have been exported to over 20 countries.
2. Why choose us?
A: We only produce very high-quality products, which is cost-effective and win good reputation.
3. Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configurations.
4. How about your After-sales service?
A: We have 3 after-sales, and can provide 24-hour technical support by phone and email.
5. What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days.
6. Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
