Product Details:
Payment & Shipping Terms:
|
| Brand: | Sinotruk HOWO | Engine: | WD615.47 |
|---|---|---|---|
| Rear Axle: | HC16 | Front Axle: | HF9 |
| Tare Weight (Kg): | 12870 | G.R.V.W (Kg): | 25000 |
| Mixing Blades Thickness: | 4mm | Barrel Wall Thickness: | 5mm |
| High Light: | Used Concrete Mixer Truck Sinotruk,10 Wheeler Used Concrete Mixer Truck,12cbm Used Concrete Mixer Truck |
||

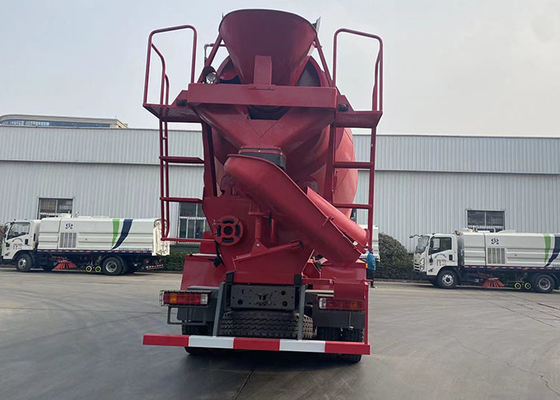

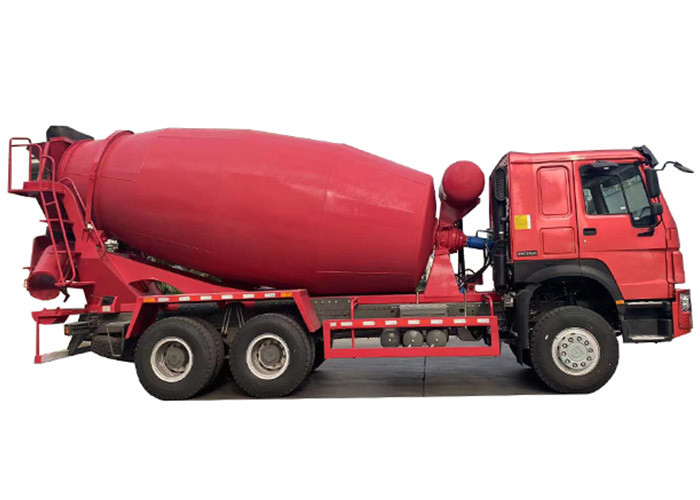

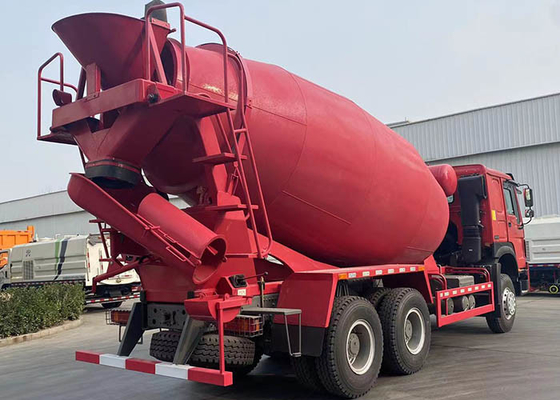

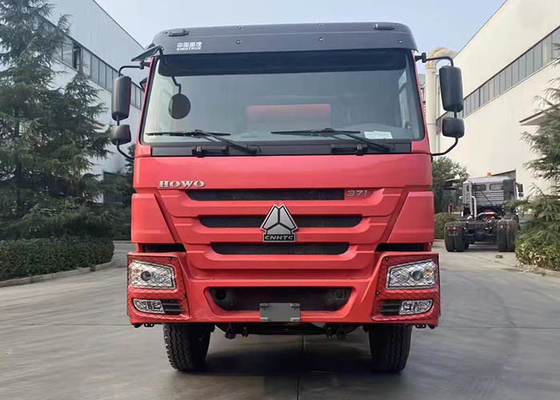

Sinotruk HOWO 10 Wheeler 12cbm 371HP Used Concrete Mixer Truck
Used Concrete Mixer Truck Of Product Description:
1.Fully integrated into the customer personalized demand and user-friendly design concept,which is the high-end products of the heavy duty concrete mixer transportation equipment.
2.Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading residual rate,large volume,high efficiency,for the heavy duty concrete mixer.
3.The heavy duty concrete mixer body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can guarantee longer&enough life-span.
4.The heavy duty concrete mixer leaf has the excellent mixing function to make the finished concrete more uniformly,and to maintain the quality of the concrete;High strength,toughness beam, minimizing vibration.
5.The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle according to the weight and road environment,for heavy duty concrete mixer.
6.Design of the luxury dashboard.Preferably with the interior material of the cab.Both sound insulation and tightness are good. Indoor noise less than 70 db.
7.The heavy duty concrete mixer can satisfy Euro2, Euro3 and Euro4 emissions. Light weight, reduce fuel consumption and good economy.
8.Low maintenance cost, integrated design, ultra-long (60,000km) oil change interval and maintenance interval.Electric control high pressure common rail technology, Bosch 3 technology, the only authorized use in China.
9.The heavy duty concrete mixer key components are imported from the original, and other major components are sourced globally,to ensure the quality of products.
Used Concrete Mixer Truck Of Product parameters:
1.The parameters of the special truck are just common configurations, not absolute.The specific configuration of the heavy duty concrete mixer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and thespecial truck, we are always welcome.
3.The final price of all heavy duty concrete mixer is determined by the special truck configuration you choose.Therefore, if you are interested in purchasing products, please contact us in time.
| RUCK SPECS | CHASSIS MODEL | ZZ1257N3847N1 | |
| Engine | Engine model | WD615.47 371HP EURO II | |
| Engine type | 6-cylinder in line, 4-stroke, water cooled, turbo-charged & inter-cooled, direct injection. | ||
| Displacement | 9.726L | ||
| Engine power | 273kw | ||
| Transmission | HW19710, 10 forward and 2 reverse | ||
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| G.R.V.W (Kg) | 25000 | ||
| Tare Weight (Kg) | 12870 | ||
| Max. Speed (Km/h) | 80 | ||
| Brakes | Air braking | ||
| Tyres | 12.00R20 with one spare tire | ||
| Outline Dimension (mm): | 9050 (L) x 2490 (W) x 3800 (H) | ||
| Cab | A7-W with one bed, with air condition | ||
| Steering gear | ZF8118 | ||
| TANK SPECS | Valid Mixer Tank Volume (m3) | 10 | |
| Barrel Wall Thickness | 5mm | ||
| Mixing Blades thickness | 4mm | ||
| Loading Speed (m3/min): | ≥ 3.2 | ||
| Discharging Speed(m3/min) | ≥ 2.2 | ||
| Rest rate (%) | ≤ 1 | ||
| Mixer Speed (rpm) | 0-16 | ||
| Mixer Tank angle | 13° | ||
| Driving system | Speed Reduction System | PMP PMB6.5 | |
| Pump | EATON 5423 | ||
| Motor Model | EATON 5433 | ||
Used Concrete Mixer Truck Of Our Advantages:
1. Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Warranty: One year which comes to the first for the engine, gear box, and axles.
4. After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Our Products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer /van container trailer / warehouse trailer, etc.)
1. who are we?
We start from 2017,sell to Africa(50.00%),South Asia(30.00%),Southeast Asia(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
tractor,Dump truck,semi-trailer,trailer,Second-hand trailer
4. why should you buy from us not from other suppliers?
LISHIXIN is a professional export and manufacturing service enterprise for commercial vehicles, semi-trailers, used cars and trailers. We provide high quality products and services at low price to foreign customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,CNY;
Language Spoken:English,Chinese
Contact Person: Ms. Amanda zhang
Tel: +8617760771335
Fax: 86-371-55980820
