| Model: | 6×4 | Wheel Base (mm): | 3825+1500 |
|---|---|---|---|
| Condition: | Used Or New | Tire Number: | 10+1 |
| Front Wheel Track (mm): | 2022/2041 | Rear Wheel Track (mm): | 1830 |
| Brand: | Howo | Rims: | 8.5-20,10 Hole-steel |
| High Light: | HOWO 10cbm Used Concrete Mixer Truck,Mounted Concrete Mixer Pump Trucks,12cbm Used Concrete Mixer Pump Truck |
||

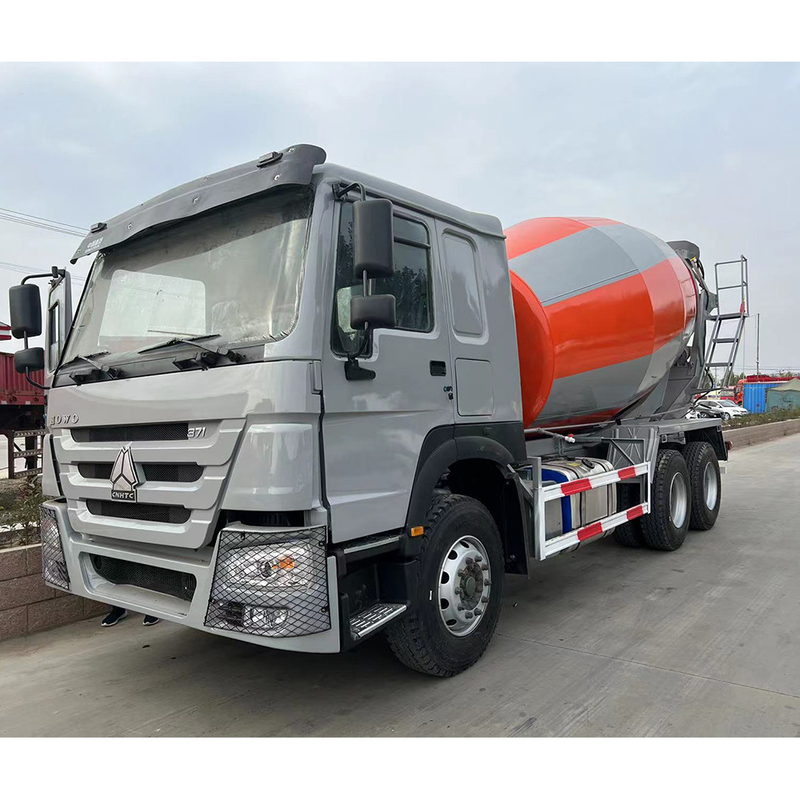

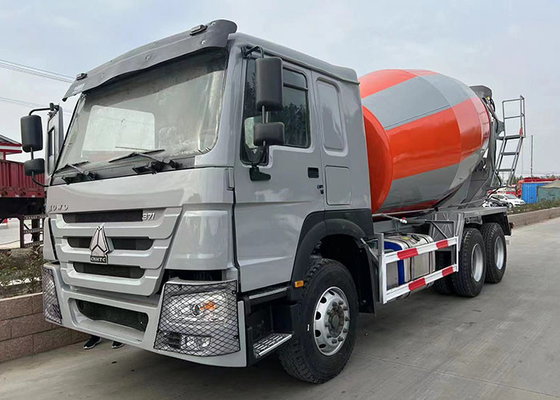

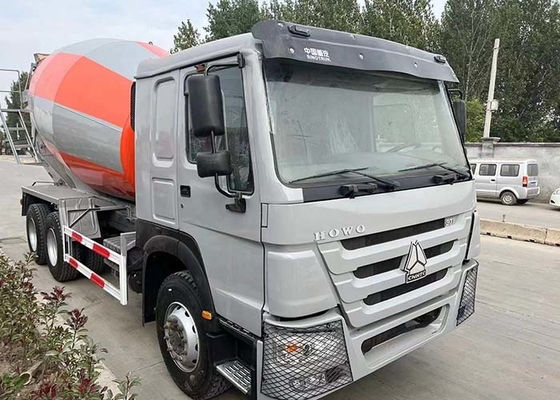

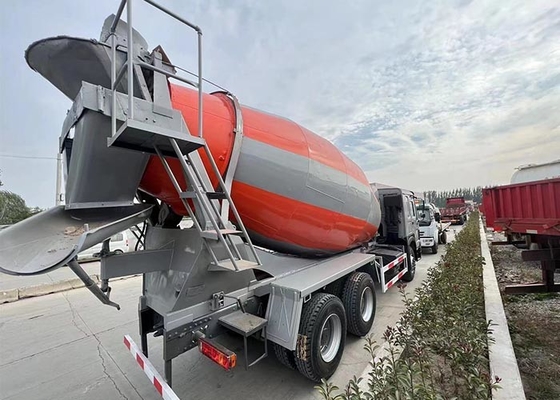

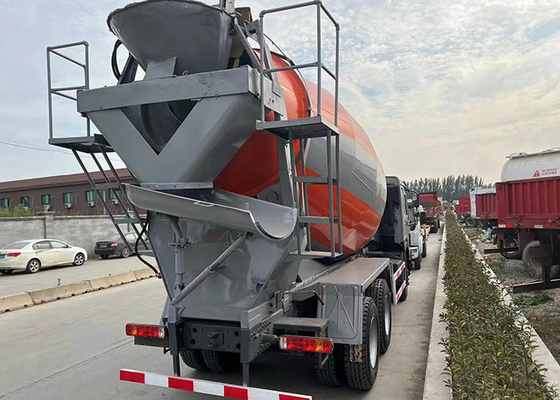

HOWO Truck Mounted Concrete Mixer Pump 10cbm 12cbm Trucks for Sale
Used Concrete Mixer Truck Of Product Description:
1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades of discharge are installed on the outlet of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame uses high intensity square tube with damping in the central area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move moresmoothly.
3. The upload production of this mixer adopts multiple advanced technology, which can produce various types of mixer in volume such as 3m3, 5 3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.
Used Concrete Mixer Truck Of Product parameters:
| Model | GCW40000kgs Driving Type 6×4 | |
| Engine | Engine model: WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turo-charging & intercooling Maximum output: 371hp(273Kw) at 2200 rpm according to DIN Maximum torque: 1450Nm at 1300~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio: 17:1 Specific fuel consumption: 198g/kWh; Engine oil filling quantity: 20L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 71oC Rigid fan Twin cylinder air compressor |
|
| Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
|
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam |
|
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 5.73 |
|
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs and bogie springs Spare wheel carrier: with one spare wheel |
|
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
|
| Braking System | Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
| Wheel & Types | Rims: 8.5-20,10 hole-steel Types: 12.00R20, |
|
| Driver's cab | HW76 Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air conditioner, adjustable steering wheel. | |
| Electrical System | Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Dimensions in mm | Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Tank capacity (mm) |
3825+1500 2022/2041 1830 1500 1850 19 23 10CBM Imported pump, motor and reduer |
| Weight in kg | Permissible loading capacity (kg) Dead weight (kg) Gross vehicle weight (kg) Gross combination weight (kg) Front axle loading capacity (kg) Rear axle loading capacity (kg) |
30000 12090 25000 30000 9000 2×16000 |
| Performance | Maximum driving speed(km/h) Maximum gradeability (%) Minimum ground clearance(mm) Minimum turning radius (m) Fuel consumption(L/100km) |
78(reference data) 36 314 15 40(reference data) |
Used Concrete Mixer Truck Of Details:
1. Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province, which is the manufacturing center of construction machinery. We have passed ISO and CE certificates and our products have been exported to over 20 countries.
2. Why choose us?
A: We only produce very high-quality products, which is cost-effective and win good reputation.
3. Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configurations.
4. How about your After-sales service?
A: We have 3 after-sales, and can provide 24-hour technical support by phone and email.
