Product Details:
Payment & Shipping Terms:
|
| Model: | Driving Type 6×4 | Total Weight(kg): | 25000 |
|---|---|---|---|
| Water Tank Capacity(L): | 350 | Tire Number: | 10+1 |
| Power(Kw/hp): | 154/210 | Hydraulic Motor: | PMP (Italy Brand) |
| Hydraulic Pump: | PMP (Italy Brand) | Speed Reducer: | PMP (Italy Brand) |
| High Light: | Howo Used Concrete 6x4 Mixer Truck,Cement Concrete Mixer Truck,10m3 Howo Used Concrete Mixer Truck |
||

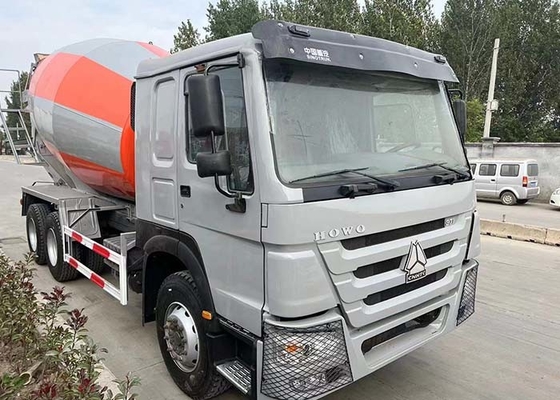

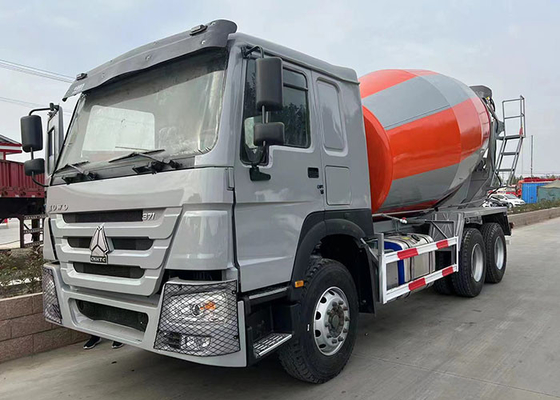

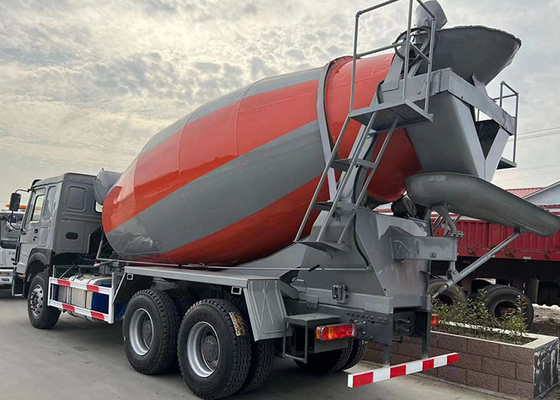

Howo 10m3 High Configurations Cement Concrete 6x4 Mixer Truck
Used Concrete Mixer Truck Of Product Description:
The engine is capable of running in dual-power, allowing it to adapt to different working conditions. With mixer truck matching technology, fuel consumption decreases by 10%.
The series' unprecedented "no sub-frame structure" drops the truck's deck by 140mm to 200mm. Years of investment in R&D has yielded an optimal frame structure that gives it stability and reliability.
By using a large-displacement power steering oil pump, the necessary operating force decreases by 40% and steering is facilitated. We've optimized the chassis pipeline and front axle's steering angle, decreasing the mixer truck's steering diameter by 15%. This gives you more control over even the smallest details of your mixer truck.

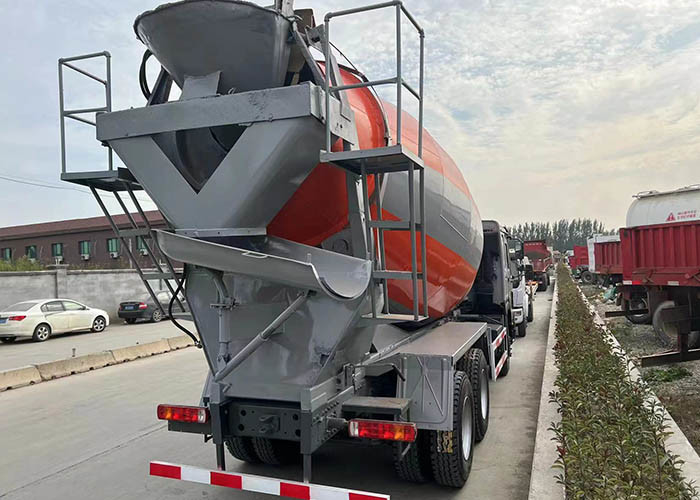

The built-in three-section folded blade helps increase the discharge glide angle, decreasing buildup. In addition, a flushing device, innovative front taper and bal-crown connecting structure are installed at the rear taper to clear stagnant aggregate in the dead space and to prevent aggregate from piling up at front and rear tapers. With this, the residual rate at the discharge port declines to 0.4%.
The truck is equipped with a GPS system, mixer truck monitoring, record playback, event alarm, truck management, and statistics. You can instantly monitor the mixer truck's location, oil level, and discharge.
Used Concrete Mixer Truck Of Product parameters:
| Name of product | Concrete Mixer | Trade Mark | FOSION |
| Total weight(kg) | 25000 | Tank volume(m3) | 8 |
| Rated load weight(Kg) | 11805 | Overall dimensions(mm) | 7720×2500×3750 |
| Curb weight(Kg) | 12900 | Carriage size(mm) | ×× |
| No of axles | 3 | Tread(mm): | 4200, 2 axles |
| Model of chassis | EQ1250GFJ3 | Chassis name | Load truck chassis, Cat.II |
| Chassis size(mm) | 8460,8000,8300×2740×2850 | No of tires | 10 |
| Fuel | Diesel | Tire size | 10.00 R20 |
| Emission Standard | GB3847-2005,GB17691-2005,China emission | ||
| Engine model | YC4EG200-30 | Displacement(ml) | 5200 |
| Engine factory | YUCHAI | Power(Kw/hp) | 154/210 |
| Water tank capacity(L) | 350 | Radiator | KAIPENG-18L |
| Reducer | PMP6.5 | Oil pump | INTERPUMP PMP90 |
| Motor | INTERPUMP PMP90 | Material of tank body & blade |
Q345B 4.0MM |
Used Concrete Mixer Truck Of Details:
1. Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province, which is the manufacturing center of construction machinery. We have passed ISO and CE certificates and our products have been exported to over 20 countries.
2. Why choose us?
A: We only produce very high-quality products, which is cost-effective and win good reputation.
3. Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configurations.
4. How about your After-sales service?
A: We have 3 after-sales, and can provide 24-hour technical support by phone and email.
