Product Details:
Payment & Shipping Terms:
|
| Tire: | 12.00R20 | Cab: | HW76 |
|---|---|---|---|
| Emission Standard: | Euro 2 | Fuel Type: | Diesel |
| Capacity (Load): | 31 - 40T | Engine: | WD615.69 |
| Rated Load: | 12420~12700 | Gross Vehicle Weight: | 25000 |
| High Light: | 371hp Sinotruk Howo 6x4 Tipper Truck,Sinotruk Howo 6x4 Tipper Truck HW76,HW76 Used 10 Wheeler Dump Trucks |
||
Factory direct sale in China used Hand Dump Truck Sino Sinotruk Howo 371 6x4 Tipper Used Dump Trucks For Sale Price
Product introduction:
1. We have more than 90 units dump truck ready in stock and in good condition, can send to you immediately
2. The used dump truck are slightly used, all after 2015 year, with a short driving mileage
3. Our dump truck can change new tires, new seats, new center console, new gearbox, new clutch, new engine, etc based on your requirements
4. Various shipping methods, bulk cargo ship, ro-ro ship, and 40FT flat rack container, we can do SKD, CKD ship by 40HQ container which can help you save cost and import tax
For More Information About Us Please See Following!
Product parameters:
| Specification | ||||||
| Vehicle series | HOWO-7 6x4 Tipper | |||||
| Cab | HW76 | |||||
| Engine | Model | Euro 3:WD615.95C/WD615.96C | ||||
| Power(Ps/rpm) | 249/1900;279/2000 | |||||
| Maximum torque(Nm/rpm) | 1490/1200-1500;1590/1200-1500 | |||||
| Displacement(L) | 9.726 | |||||
| Comprehensive fuel consumption | 23.7 | |||||
| L/ 100km | ||||||
| 50km / h no load constant speed fuel consumption | 17.2 | |||||
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD615.95C,WD615.96C standard HW19710 | |||||
| Clutch | Φ430 diaphragm spring Clutch,Hydraulic control air assisted. WD615.95Cstandard430B ,WD615.96Cstandard430A | |||||
| Front axle | HF9 drum-type, rated load of 9t | |||||
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |||||
| Steering system | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | |||||
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer | ||||
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |||||
| Braking system | Service brake | dual-circuit air pressure brake | ||||
| Parking Brake | spring storage energy without air | |||||
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |||||
| Electric system | Voltage | 24V | ||||
| Generator | 2240W | |||||
| Batteries | 12V/165Ah,2 pieces | |||||
| Starter Power | 24V,7.5kW | |||||
| Wheels & Tyres | Tyres | 12.00R20 | ||||
| Optional | 12.00R24,12.00-24 | |||||
| Fuel Tank | Capacity | 300 Liter | ||||
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 | ||||
| Gross Vehicle Weight | 25000 | |||||
| Rated load | 12420~12700 | |||||
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 | ||||
| Wheelbase | (3225~3825)+1350 | |||||
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) | |||||
| Wheel track of front axle | 2041 | |||||
| Wheel track of rear axle | 1830/1850 | |||||
| Dump box Dimensions | 5600×2500×1500mm() | |||||
| Performance | Maximum speed(km/h) | 79/83 | ||||
| Maximum gradeability(%) | 20 | |||||
| Minimum turning diameter(m) | 15/16/17 | |||||
What is the details of our dump truck?
-Truck body:from 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.
--Options for tires:12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Standard color: White, Red, Yellow (Other color is optional)
--Dump body:5400x2300x1500mm, Steel thickness (mm) :Bottom 8 , front6mm,side 6
--Hydraulic lifting system:Middle lifting (HYVA front lifting is optional)

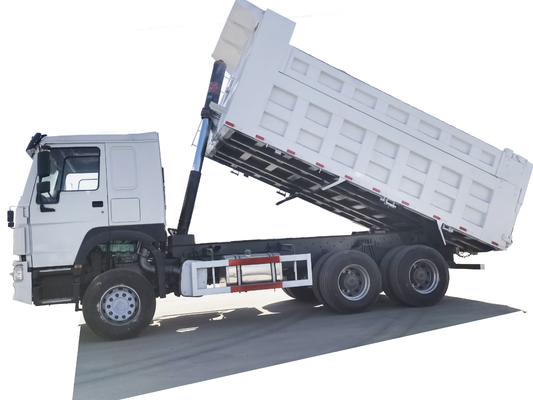

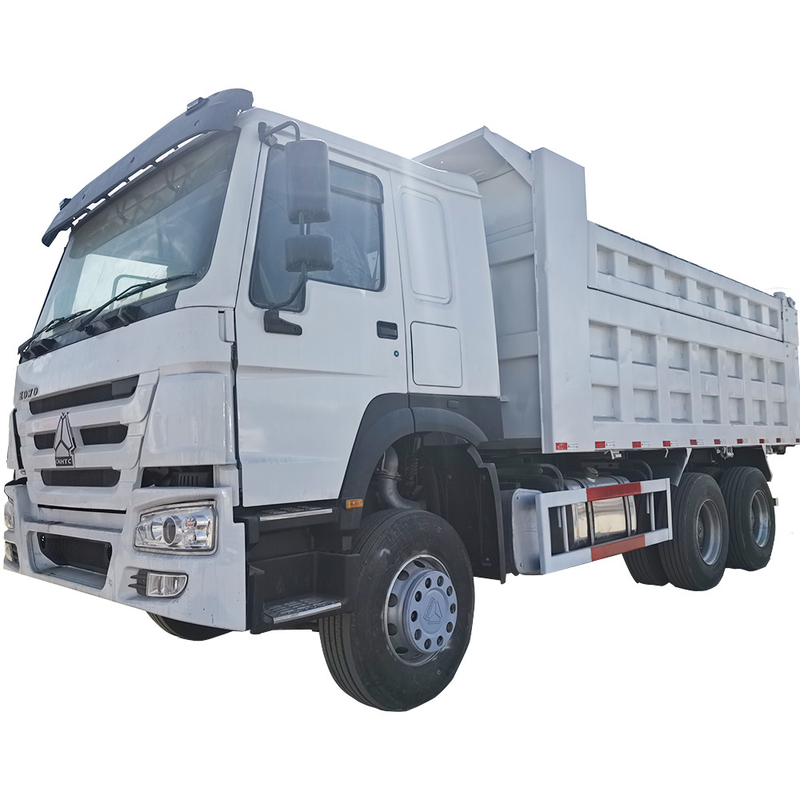

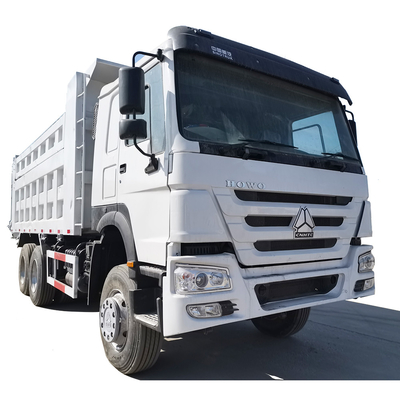

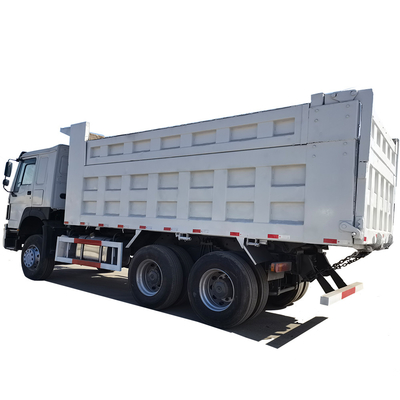

Product pictures:
Our advantage:
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you more competitive advantages.
Factory Tour:
FAQ:
1. What are our strengths.
a. Near China National Heavy Duty Truck Group;
b. 16 years of production and trade experience;
c. Good quality and good after-sales service;
d. All kinds of trucks and trailers give customers the best advice and cost performance
b. Always conduct final inspection before shipment;
c. Each process is strictly inspected.
2. What can you buy from us?
Sinotruk howo howoA7 locomotive, heavy-duty gravel/mining/mud dump truck, custom low-bed semi-trailer, oil tanker for bulk cement semi-trailer, milk truck
3. Why should you buy from us instead of other suppliers?
Our company has advanced production and processing equipment to ensure product quality! We transport trailers by container, pallet, bulk or ro-ro. Our factory has long-term cooperation with shipping agents and can provide you with the lowest freight.
