Product Details:
Payment & Shipping Terms:
|
| Condition: | Used | Horsepower: | 351 - 450hp |
|---|---|---|---|
| Transmission Type: | Manual | Load: | 30-40 TONS |
| Driving Type: | LHD Or RHD | Fuel Type: | Diesel Fuel |
| Year: | 2015-2020 | Cab: | Howo Cab |
| High Light: | 30 Tons Used Automatic Dump Trucks Howo,Used Automatic Dump Trucks Howo 6X4,Howo 6X4 Second Hand 10 Wheeler Tipper |
||

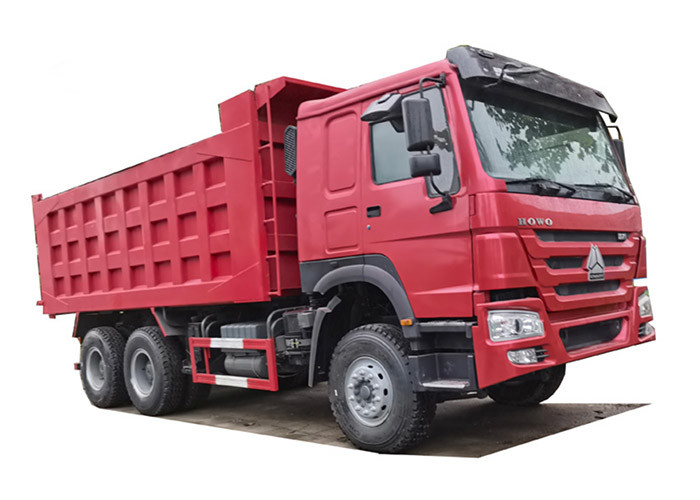

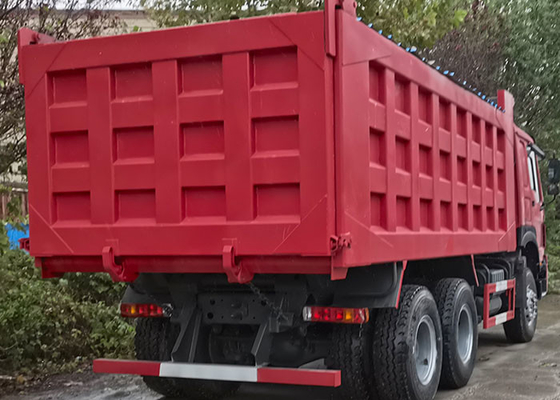

30Tons Load Sinotruk Howo 6X4 Used Dump Truck 371Hp 10 Wheels Tipper Truck
Used Dump Truck Of Product description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
2. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
3. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
4. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.
Used Dump Truck Of Product parameters:
|
Chassis Dimensions( mm): 6x4
|
|||
|
Overall chassis length
|
7800
|
||
|
Cab width
|
2500
|
||
|
Cab height (unladen)
|
3210
|
||
|
Wheel base
|
3800+1350
|
||
|
Front overhang
|
1500
|
||
|
Rear overhang
|
900
|
||
|
vehicle weights(kg)
|
|||
|
G.V.W
|
25000
|
||
|
Curb weight(chassis)
|
10500
|
||
|
Frame profile Dimensions(mm)
|
|||
|
Frame width (front )
|
940
|
||
|
Frame width ( rear )
|
860
|
||
|
Section height
|
300
|
||
|
Section width
|
90
|
||
|
Engine
|
Type
|
Cummins LK375 33
|
|
|
Emission level
|
Euro III(EGR)
|
||
|
Maximum power
|
276 Kw at 2000 rpm
|
||
|
Maximum torque
|
1600N.m at 1400 rpm
|
||
|
Number of cylinders
|
6
|
||
|
Displacement (lit)
|
9.5
|
||
|
Cylinder bore (mm)
|
116.5
|
||
|
Stroke (mm)
|
148
|
||
|
System
|
Water cooled, turbocharged, after cooled
|
||
|
Clutch
|
Type
|
SACHS
|
|
|
Plate's diameter
|
¢430mm
|
||
|
operating system
|
Hydraulic control with air booster, pulling
|
||
|
Gear box
|
Type
|
Fast 12JSD180T
|
|
|
Number of gears
|
12forward gears& 2 reverse ,synchronization
|
||
|
Ratios
|
15.53,12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.10,1.64,1.28,1.0,R1 14.86,R2 3.33
|
||
|
Brake System
|
Full air brake system, split pneumatic circuit ;
parking spring brake acting on rear axles , exhaust brake |
||
|
Cab
|
Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab
suspension , adjustable driver's seat, air conditioning system |
||
|
Axle
|
Front
|
Elliot type, I beam section
|
|
|
Load capacity(ton)
|
9
|
||
|
Rear
|
Hub reduction , tandem axle, with axle lock and wheel lock , ratio 5.26/5.92
|
||
|
Load capacity(ton)
|
22*2
|
||
|
Tyres
|
12.00R20
|
||
|
Suspension
|
Front
|
Leaf spring with shock absorber
|
|
|
Rear
|
leaf spring
|
||
|
Battery
|
Voltage (V)
|
24
|
|
|
Battery capacity (A.h)
|
165X2
|
||
|
Fuel tank
|
Type
|
Steel fuel tank
|
|
|
Capacity
|
280lit
|
||
|
Cargo Dimensions
|
5600mmX2300mmX1400
|
||
Popular dump truck models include: Sinotruk HOWO 336hp 6X4 10-wheel 16m3 dump truck, Sinotruk 371hp 10-wheel 30-ton 20m3 dump truck, Sinotruk howo 8X4 12-wheel 40-ton dump truck and so on.
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment .
Q. How long time you could delivery goods to customer ?
A: Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
