| Axle: | 3 Axle | Support Legs: | JOST Brand |
|---|---|---|---|
| Side Beam: | 16mm Or 18mm Channel Stee | Size: | 13000mm*12500mm*2860mm |
| Max Payload: | 60T | Material: | Steel |
| Tire: | 12R22.5 | Tare Weight: | 6.5-7.2T |
| High Light: | 500mm Side Wall Semi Trailer,Side Wall Semi Trailer 6.5T,6.5T Bulk Cargo Trailer |
||

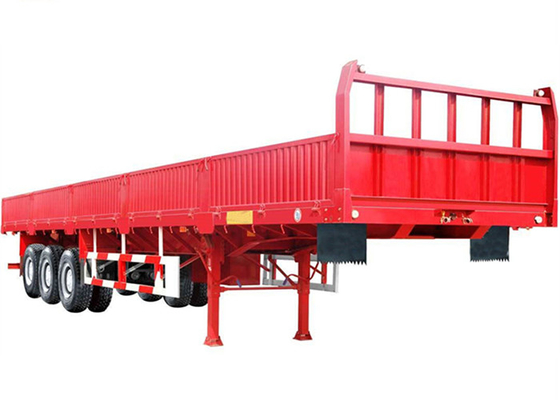

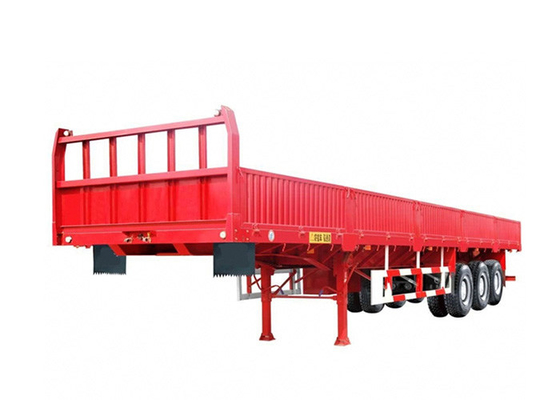

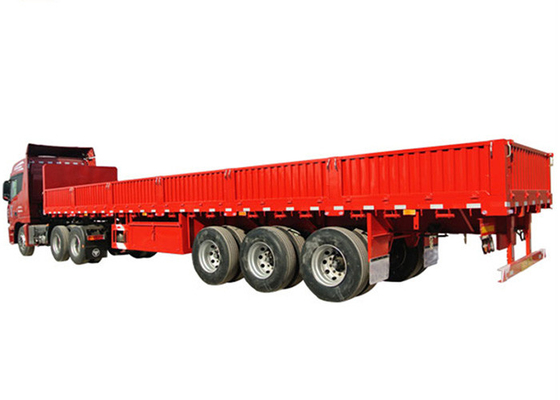

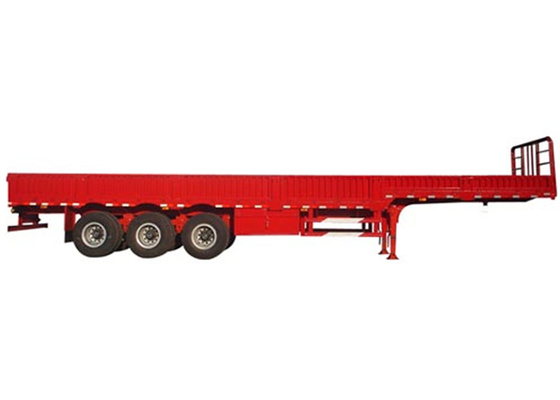

Side Wall Semi Trailer 3 axle 60t bulk cargo sidewall truck trailer semi trailer
Side Wall Semi Trailer Of Product parameters:
|
Specifications
|
|
|
Tare Weight
|
About 6.5— 7.6T
|
|
Dimension
|
8500mm-13000mm*2490mm-2500mm*2860mm-2900mm (Size can be choose freely)
|
|
Loading Capacity (T)
|
≤ 60 T
|
|
Axle
|
13 T/16T, FUWA /BPW /Huajing Brand
|
|
Rim
|
9.00-22.5 8.5-20
|
|
Tire
|
12.00R22.5/ 315 80R22.5 11.00R20
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type)
|
|
Or Air suspension (China brand or BPW brand )
|
|
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
|
Support leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
|
Main beam
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
|
|
down plate is 16mm ; Material is Q345B Steel .
|
|
|
Side beam
|
16mm or 18mm channel steel ( Material is Q235steel ).
|
|
Side Wall
|
600mm-1500mm ,or can be do box type ,for choose
|
|
Brake chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist Locks
|
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
|
|
Valve
|
WABCO valve (especial for exporting market)
|
|
Light
|
LED light (especial for exporting market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways (7 wire harness)
|
|
Tool box
|
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) |
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|
Shipping Terms:
|
By bulk cargo carrier, RORO or 40HQ container.
|
Side Wall Semi Trailer Of Our advantage:
Our factory with more than 20 years experience. Being famous in domestic and foreign countries, we concentrate on tank container and trailer's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time
4. We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.
5. Our company promises to provide one-year warranty for all new equipment and free consulting service for life.
6. After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
FAQ:
1. What is your MOQ?
A: One unit.
2. Can you meet my special requirements?
A: Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A: High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A: You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A: It's totally acceptable.
6: What is the delivery time?
A: The delivery time is within 30-50 working days after receiving your prepayment.
