| Gross Weight: | About 7.5 Tons | Outer Side Dimension(mm): | 13000 × 2500 × 2850 |
|---|---|---|---|
| Loading Capacity (T): | ≤ 50T | Condition: | New |
| Voltage: | 24V | AXLES: | 13 T /PER, 3axles FUWA Brand, |
| Tire: | 12.00R22.5/ 315 80R22.5 11.00R20 | Rim: | 9.00-22.5 8.5-20 |
| High Light: | 12.00R22.5 Trailer Side Wall,Trailer Side Wall 13Ton,13Ton Fuwa 3 Axles Trailer |
||
The side wall semi-trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.
This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
|
Gross Weight
|
About 7.5 tons
|
|||
|
Outer side dimension(mm)
|
13000 × 2500 × 2850
|
|||
|
Loading Capacity (Ton)
|
≤ 50T
|
|||
|
AXLES
|
13 T /PER, 3axles FUWA Brand,
|
|||
|
Tire
|
12.00R22.5, 13pieces Triangle or double coin brand
|
|||
|
Rim
|
9.00-22.5, 13pieces China Brand
|
|||
|
Suspension
|
Mechanical suspension (America Type)
|
|||
|
Spring leaf
|
90(W)mm*13(Thickness)mm *10pices, heavy duty type
|
|||
|
King pin
|
JOST brand 2.0 or 3.5 inch bolts type
|
|||
|
Support leg
|
28T or JOST brand E100
|
|||
|
Main Beam
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel . |
|||
|
Plateform
|
3mm diamond plate steel
|
|||
|
Side beam
|
16# channel steel
|
|||
|
Brake chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank
|
|||
|
Fuel tank
|
1000L
|
|||
|
Hooks
|
With
|
|||
|
Twist Locks
|
12 pieces (Lifting type)
|
|||
|
Valve
|
WABCO valve
|
|||
|
ABS
|
Without
|
|||
|
Light
|
LED light
|
|||
|
Voltage
|
24V
|
|||
|
Receptacle
|
7 ways (7 wire harness)
|
|||
|
Tool box
|
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) |
|||
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|||
|
Shipping Terms
|
Transport by RORO or 45FT container.
|
|||

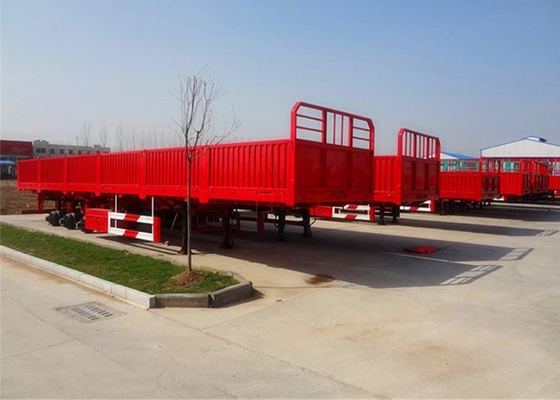

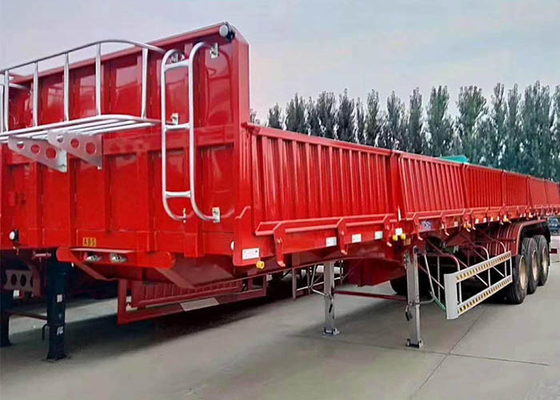

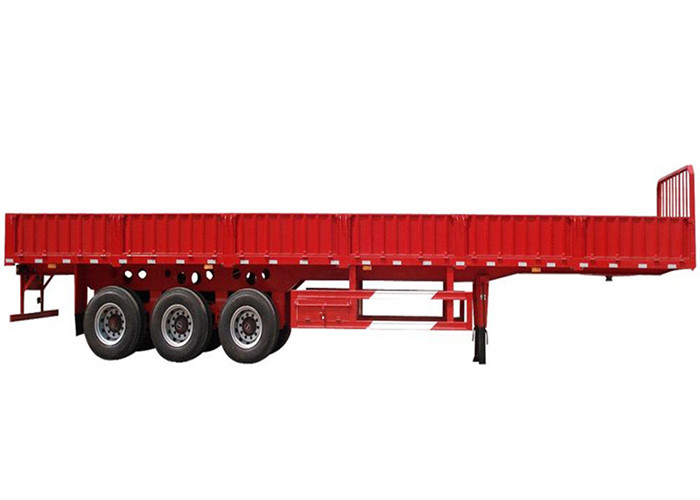

Side Wall Semi Trailer Of Details:
Side Wall Semi Trailer Of Our Advantages:
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.
Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
Q: How to guarantee customers get the goods smoothly after they pay ?
A: Don’t worry, dear. we joined the trade assurance. you can place the order by trade
Q: Could you special design and produce for you?
Sure, we have all kinds of professional engineers,Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
