| Brand Name: | DONGFENG | Engine Brand: | YUCHAI |
|---|---|---|---|
| Segement: | Heavy Truck | Tire: | 12.00R20 |
| Color: | Optional | Transmission: | Manual Transmission |
| Capacity (Load): | 41 - 50T | Driving Type: | LHD/RHD |
| Highlight: | Dongfeng Used 12 Wheel Truck 8x4,Used 12 Wheel Truck 8x4 380Hp,380Hp Second Hand Dumper Trucks |
||

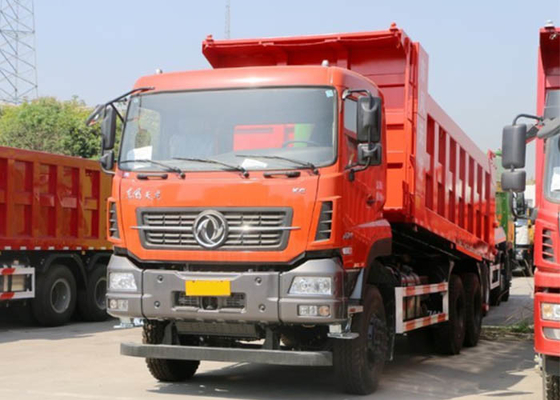

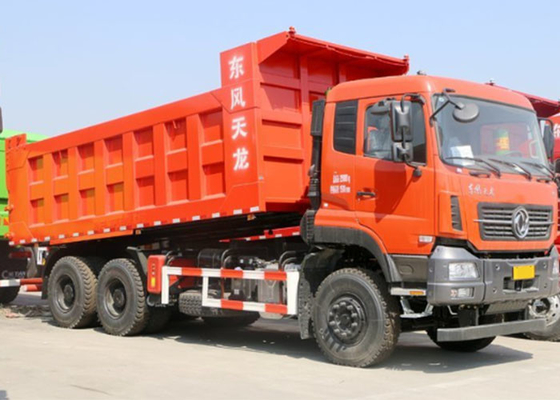

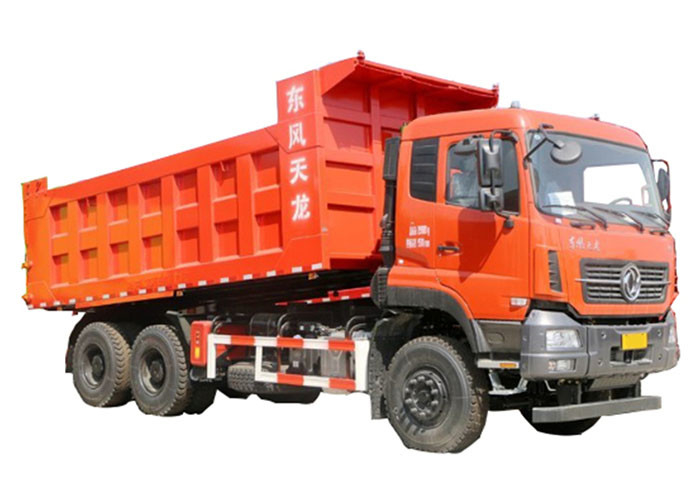

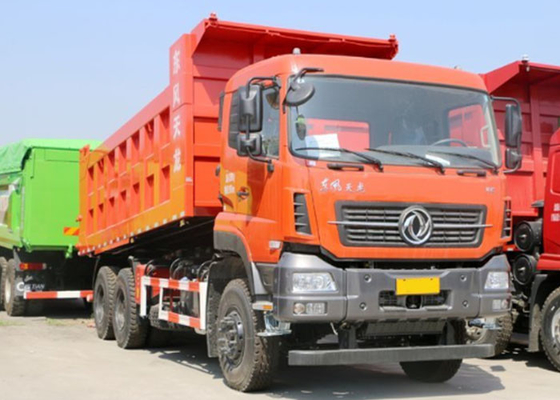

Dongfeng Mining Truck Heavy Duty Truck 371Hp 380Hp 8x4 12 Wheels Used Dump Truck
Used Dump Truck Of Product description:
Used Dump Truck Of Product parameters:
| Specification | Driving form | 8*4 |
| Vehicle Length × width × height (mm) | 10660*2545*3250mm | |
| Wheelbase (mm) | 1950+3750+1350mm | |
| Front/ Rear wheel distance (mm) | 2010/2010mm,1874/1874mm | |
| Total weight (kg) | 15000 | |
| Curb weight (kg) | 30000 | |
| Crew numbers | 2,3 | |
| Approaching/ leaving angle | 20/17 | |
| Dump box size | Optional | |
| Engine & gearbox | Model | 380 HP EURO2/3 |
| Engine displacement (L) | 9.762 | |
| Power rating (kw) | 314Kw | |
| Rated speed(r/pm) | 2000 | |
| Rated torque(N.m) | 1850N.m/1200~1600 | |
| Gear box | Fast 12speed | |
| Gear model | Manual | |
| Tank | 400L | |
| Chassis | Front axle | 9.5T |
| Rear Axle | 16T*2 i=5.92 | |
| Leaf spring (N/mm) | 10/12 | |
| Tyre | 12.00R20/12R22.5 | |
| Frame Specification (mm) | 300*80*8 | |
| Cab | Flat top & short half cab,Air-conditioning system,2 Seats,1 Sleeper,locker,Rear view,Windows,Lifting pump and the other optional specification | |
