| AmbieAmbient Temp. Rangent Temp. Range: | -19°C To +80°C | Air Source Pressure: | 0.25-0.3 MPa |
|---|---|---|---|
| Design Pressure: | 0.2MPa | Test Pressure: | 0.3MPa |
| Gross Weight: | 33,000Kg | Payload: | 29100 Kg |
| Curb Weight: | 3900Kg | Volume: | 23,000L |
| Certification: | ISO9001/CCS | ||
| High Light: | CSC Bulk Tank Container,Bulk Tank Container 23000L,23000L Bulk ISO Tank Containers |
||
China Factory 20FT Powder Transport Bulk Cement ISO Tank Container For Sale
Product introduction
1: This series tank container are suitable for the transportation of Bulk
Cement/Flour/Coal/Plaster/Lithium hexafluorophosphate/Plastics Granules etc.
Powder Material.
2: The volume varies widely from 20cube meters to 52cube meters, we can
manufacture it according to your needs.
parameter:
| Product | 20feet bulk cement container tank | |||||||
| Design standard | GB /T 1413-2008 series 1 container classification , size and mass gross | |||||||
| Tank body : made of steel Q345R, 4mm thickness ; dish end: steel Q 345R, 4mm thickness | ||||||||
| Gross weight | 33,000Kg | payload | 29100 Kg | Curb weight | 3900Kg | |||
| Medium | Bulk cement | |||||||
| Overall dimension | L*W*H 6058x2438x2591mm | |||||||
| Design pressure | 0.2MPa | Air supply | ≥ 8 | |||||
| Test pressure | 0.3MPa | Allowable stacking weight 1.8g | 192,000 kg | |||||
| Design temperature | -19 to +80 ℃ | Manhole DIA | 500mm | |||||
| Air source pressure | 0.25-0.3 MPa | Air-inlet DIA mm | 2 " male adaptor | |||||
| Outlet DIA mm | 4" male adaptor | Average discharge speed | Cement: 2 t / min | |||||
| Remnant Ratio | Lower than 100kg | |||||||
| Tank barrel | ||||||||
| Volume | 23,000L | Inner DIA | 6000*2420 | |||||
| Density | 1250kg/m3 | Compartment | 2 pcs | |||||
| Manhole | 2 pcs | Quick-open type | ||||||
|
1) Tank shell and Dish end: Q 345R ; 2) Top side rail, end rails, internals, walkway : Q 235; 3) Corner posts, end arc support rings: Q 345B; 4) Corner fittings: SCW 49; 5) Pipe: 20-GB 8163 6) Valves: cast steel 7) Ventilation membrane: Synthetic fabric 8) Screws and bolts: Q 235 9) Tank construction : factory standard |
||||||||

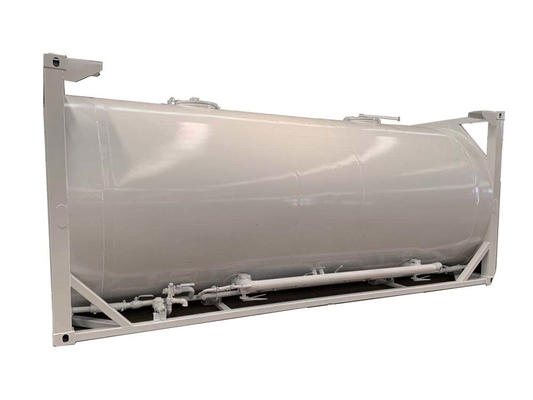

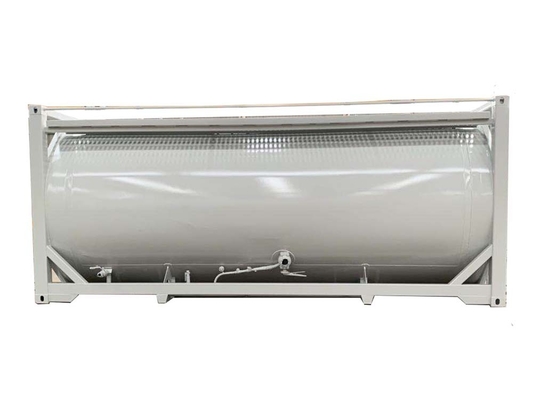

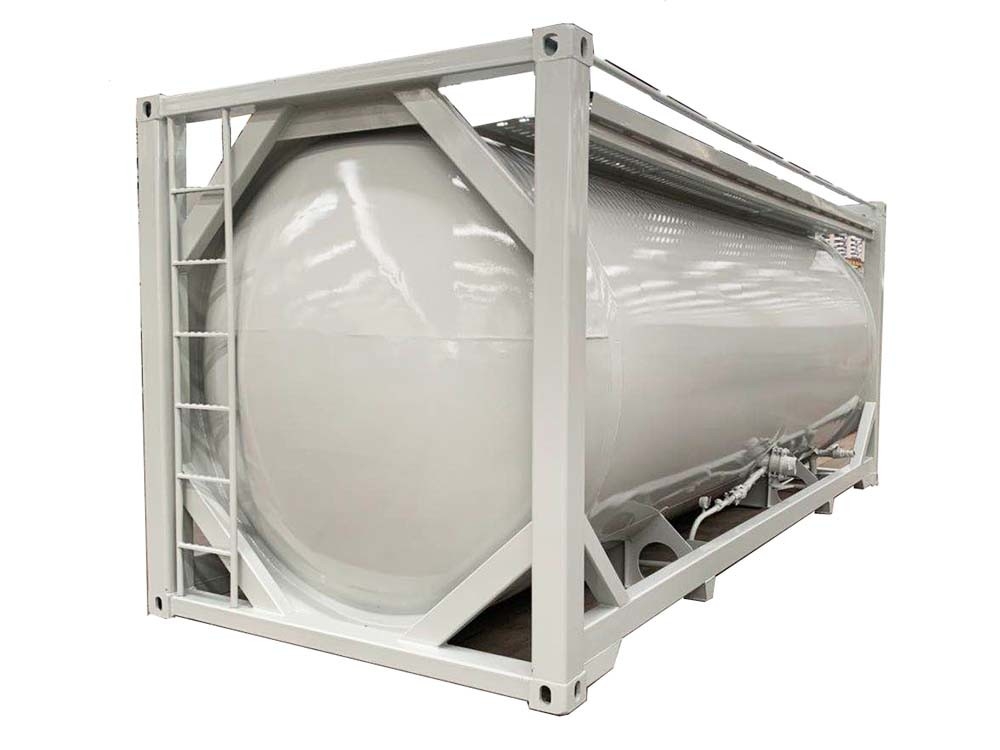

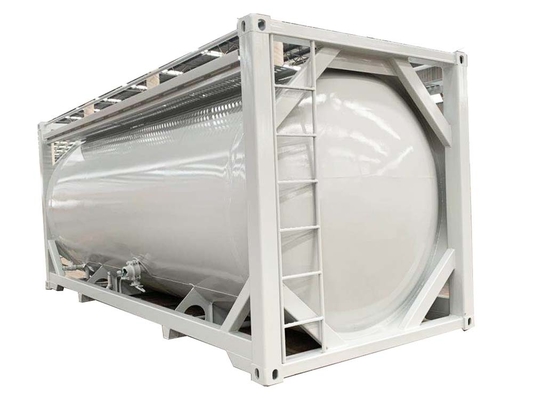

Product display:
Our Services
Pre-Sales Service
1.24 hours online timely inquiry reply and consulting support.
2.Sample testing support. View our Factory.
After-Sales Service
1.Most convenient transport and prompt delivery
2.Training how to install the tank, training how to use the equipment.
3. Warranty for 12 months.
4.Life-long maintenance
Certificate:
Customer visit:
FAQ:
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of main classification societies like ABS,CCS,GL,
BV and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT
BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks
can be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:6,normally is about 25days,and it depends on your quantity
