Product Details:
Payment & Shipping Terms:
|
| AmbieAmbient Temp. Rangent Temp. Range: | -19°C To +80°C | Air Source Pressure: | 0.25-0.3 MPa |
|---|---|---|---|
| Design Pressure: | 0.2MPa | Test Pressure: | 0.3MPa |
| Volume: | 23,000L | Certification: | ISO9001/CCS |
| Design Temperature: | -19 To +80 ℃ | Tank Body Material: | Q345R |
| Design Standard: | GB /T 1413-2008 | Standard: | IMDG CFR 49, RID/ADR |
| Dimension: | 6058x2438x2591mm | Material: | Stainless Steel, Q345 |
| Weight: | 192000 | ||
| High Light: | Bulk Tank Container 22CBM,20FT Bulk Tank Container 22CBM,22CBM Cement Tank Container |
||

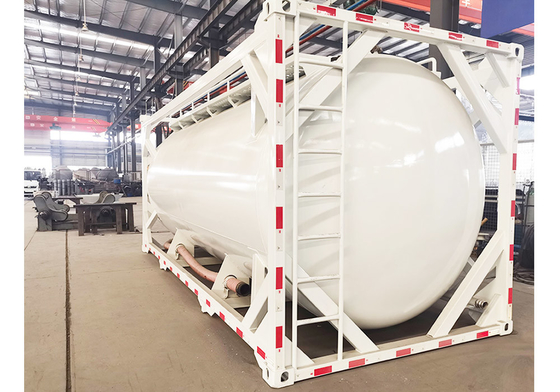

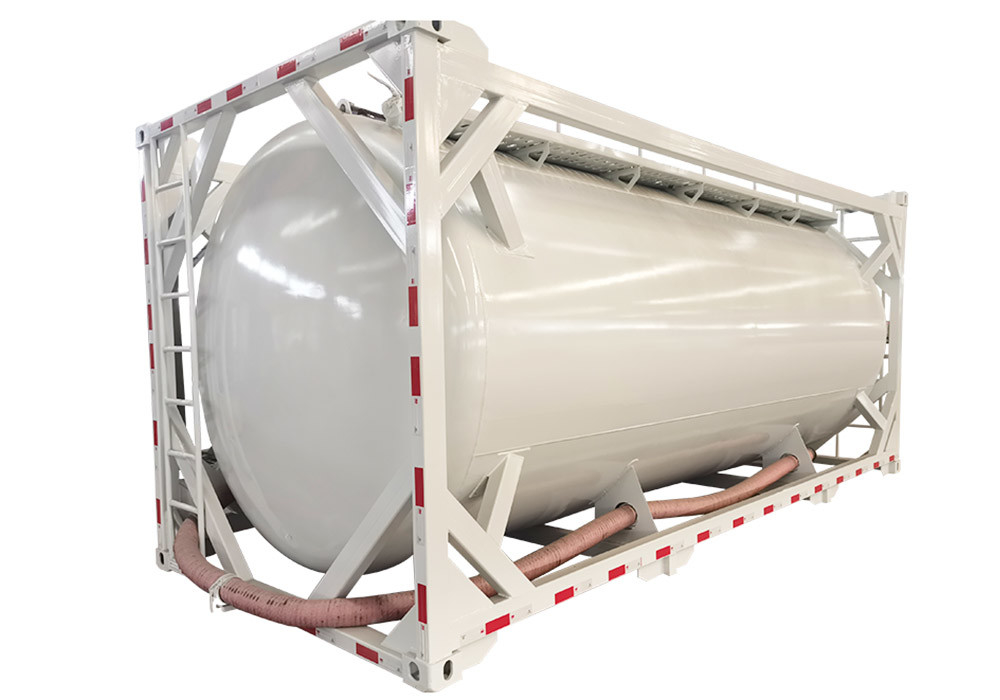

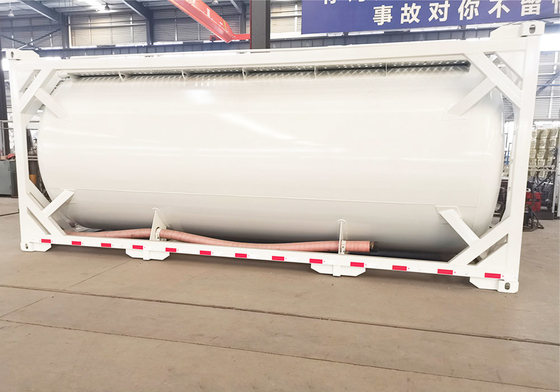

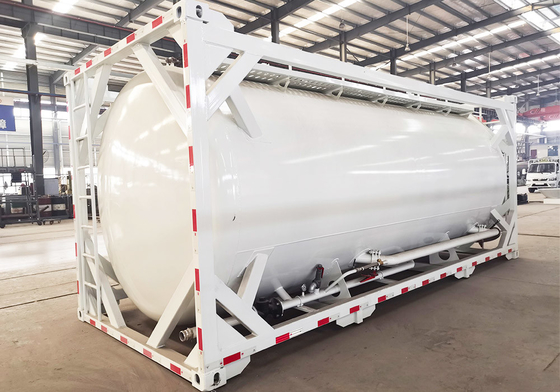

Dimension of the 20FT 22CBM Bulk Cement Powder Tank Container with Fluidization belt inside of the Tank
Product introduction:
1: This series tank container are suitable for the transportation of Bulk Cement/Flour/Coal/Plaster/Lithium
hexafluorophosphate/Plastics Granules etc.Powder Material.
2: The volume varies widely from 20cube meters to 52cube meters, we can manufacture it according to
your needs.
3. We are a professional tank container supplier with advanced equipment and high efficiency. The delivery
date can meet the requirements of customers.
4. Our tank container production technology has a number of patents, and our production technology ranks
among the best in China. We pay attention to every detail of tank container, we pursue to make the customer
have a good experience.
5. If you have any needs, you can contact us in time.
parameter:
| Dimension of the 20FT 26CBM Bulk Cement Powder Tank Container with Fluidization belt inside of the Tank | |||
| Description and Function Target | |||
| Items | Unit | Parameter | |
| External dimension(LxWxH) | mm | 20' X 8' X 9' 6" | |
| Internal size of tank | mm | 6000 x 2400 | |
| Tank volume | m³ | 22 | |
| Load capacity | m³ | 21.5 | |
| Design pressure | Mpa | 0.2 | |
| Test pressure | Mpa | 0.3 | |
| Design temperature | ℃ | 0 to +70 | |
| Max. gross weight | kg | 30480 | |
| Tare weight | kg | 4,080 (estmated) | |
| Loading weight | kg | 26400 | |
| Stacking weight.(For 1.8g) | kg | 192000 | |
| Discharge rating | t/min | cement: 1.0 ~ 1.3 | |
| Remnant ratio | kg | cement: about 100kg | |
| Fluidization belt | YES | ||
| Materials | |||
| 3.1 Main materials usde for the container shall be of the best quality conforming to the requirements of this specification society. | |||
| 3.2 Materials of the main parts | |||
| Tank ahell Dish ends |
Q345B -GB/T 1591-2008 |
||
Type of Tank Container:
1) According to the physical properties of the medium
Liquid Tank container - a tank for transport of liquid.
Gas Tank container - a tank that is suitable for the transport of gases
PowderTank container- a tank for the transport of grains and powders
2)According to the functional characteristics of the tank
Food-grade tank container - a tank container which can only be loaded with food grade products
Reefer tank container- a tank with the ability to cool the product to be transported
Electric heating tank container - a tank with the ability to heat the product to be transported
Lined tank container- a tank container with rubber or special painting liner.
3)UN T Type Code
T1 ISO tank container (for wine and light liquids )
T3 ISO tank container (for bitumen, Chocolate)
T4 ISO tank container (for non-hazardous edible and non-edible oils)
T7 ISO tank container (for non-hazardous edible and non-edible oils and chemicals)
T11 ISO tank container (for non-hazardous chemicals)
T14 ISO tank container (for hazardous chemicals and acids like HCL and zinc chloride)
T22 ISO tank container (for High hazardous chemicals)
T23 ISO tank container (for Organic Peroxides)
T50 ISO tank container (for High pressure liquefied gas,like LPG and ammonia gas)
T75 ISO tank container (for Liquefied gas at low temperature,like LNG, LCO2, LO2, LN2,)
product details:
Our Services
Pre-Sales Service:
1.24 hours online timely inquiry reply and consulting support.
2.Sample testing support. View our Factory.
After-Sales Service:
1.Most convenient transport and prompt delivery
2.Training how to install the tank, training how to use the equipment.
3. Warranty for 12 months.
4.Life-long maintenance
Customer visit:
FAQ:
Q1. What's your MOQ?
A: One unit Tanker Semi trailer or tank container are all okay for us.
Q2. Can you satisfy my special requirement?
A: Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity.
Q3: I would like to know if you can manufacture the Cryogenic tanker for us?
A:Yeah,of course,but could you please let me know what exact cargo will you load by this tanker? How about
the loading capacity or Volume capacity
Q4: I want to purchase ISO Tank Container,can you help me?
A:Yes,but can i know what cargo will you plan to load by this Tank Container? Is this tank container for the storage
purpose or transportation purpose? If transportation purpose,could you please let me know which kind of the
transporation way will you choose after you receive your ISO Tank Containers?by truck,sea boat, or Train
Q5: Can i have the drawings of this product?
A:Yeah,the existing simple similar drawings of this product for your reference only for the beginning,will make the
more precise drawings after getting the down payment,and will send this drawing to you for your confirmation
before production.
Q6: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q7: Can i do your agent in our country or some district?
A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
