Product Details:
Payment & Shipping Terms:
|
| Capacity (Load): | 50000kg | Dump Box Dimensions: | 5600×2500×1500mm |
|---|---|---|---|
| Tire Number: | 12 | Cargo Tank Dimension: | 7800*2300*1600 |
| Dimensions (L X W X H) (mm): | 10245*2496*3450 | Tyre: | 12.00R20 |
| Steering: | Right, RHD LHD | Chassis Brand: | Shacman |
| Vehicle Length × Width × Height (mm): | 10950*2550*3450mm | Wheelbase (mm): | 1800+4175+1400mm |
| Product Name: | SHACMAN H3000 Dump Truck8*4 | Horsepower: | 351 - 450hp |
| High Light: | H3000 Used Dump Trucks,Used Dump Trucks 5T SHACMAN,5T SHACMAN Tipper Second Hand |
||
SHACMAN H3000 8*4 dump truck 12 wheels dump truck dump truck factory sales price
Mature vehicle design brings better control; clear gear, ergonomic pedal and seat design, bring better and more comfort driving experience; thicker floor and double Sealed door, better dustproof effect and noise reduction effect.In addition, we have a full range of models that are available for left or right driving.
Fully optimize the matching of power and transmission system, lower fuel consumption and higher fuel efficiency
gone let you cost less and earn more!
Product introduction:
BIG ENGINE FROM 340HP TO 430HP, SUPER POWERFUL.
Tanker Capacity from 6CBM TO 14 CBM.
TYRE FROM 1200R20 TO 1200R24, BIG TYRES
connectors have greatly improved reliability and the vehicle has better air tightmess and better pressure holding capacity.
The cooling system is equipped with symmetrical left and right ait chambers with advantages of shorter intercooler inlet pipe,tight piping layout and higher ground clearance.
Φ430mim large friction clutch provides high transimission torque and efficiency
Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.
Reinforced multi-leaf spring and four U-bolts with great rigidity and strong bearing capacity.
Wheel nim has been reinforced,whose thickness increased from 14mn to 16mm and steelring from 8.5 to 9.0.
Φ120 bore steering gear, the steering assist capacity is increased by 24%.
Product parameters:
| Specification | Driving form | 8×4 |
| Vehicle Length × width × height (mm) | 10950*2550*3450mm | |
| Wheelbase (mm) | 1800+4175+1400mm | |
| Front/ Rear wheel distance (mm) | 2011/2011mm,1860/1860mm | |
| Total weight (kg) | 25000 | |
| Curb weight (kg) | 50000 | |
| Crew numbers | 2,3 | |
| Approaching/ leaving angle | 28/20 | |
| Dump box size | Optional | |
| Engine & gearbox | Model | 430 HP EURO2/3 |
| Engine displacement (L) | 11.596L | |
| Power rating (kw) | 316Kw | |
| Rated speed(r/pm) | 2000 | |
| Rated torque(N.m) | 2050N.m/1200~1600 | |
| Gear box | Fast 12speed | |
| Gear model | Manual | |
| Tank | 400L | |
| Chassis | Front axle | 9.5T*2 |
| Rear Axle | 16T *2 i=5.92 | |
| Leaf spring (N/mm) | 10/12 | |
| Tyre | 12.00R20/12R22.5 | |
| Frame Specification (mm) | 300*80*(8+8) | |
| Cab | Flat top one & short half cab,Air-conditioning system,2 Seats,1 Sleeper,locker,Rear view,Windows,Lifting pump and the other optional specification | |
Our advantage:
our factory has been in existence for over 16 years, We have professional staff and engineers, so we can give you what you want to buy. we can guarantee quality of our products ,because we believe the quality is the life of our company, and that's why we are pay so much attention to it ,we can provide professional service according to your request.
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types
of trucks and trailers and nice quality to ensure the trucks and trailers
being in good working conditions.

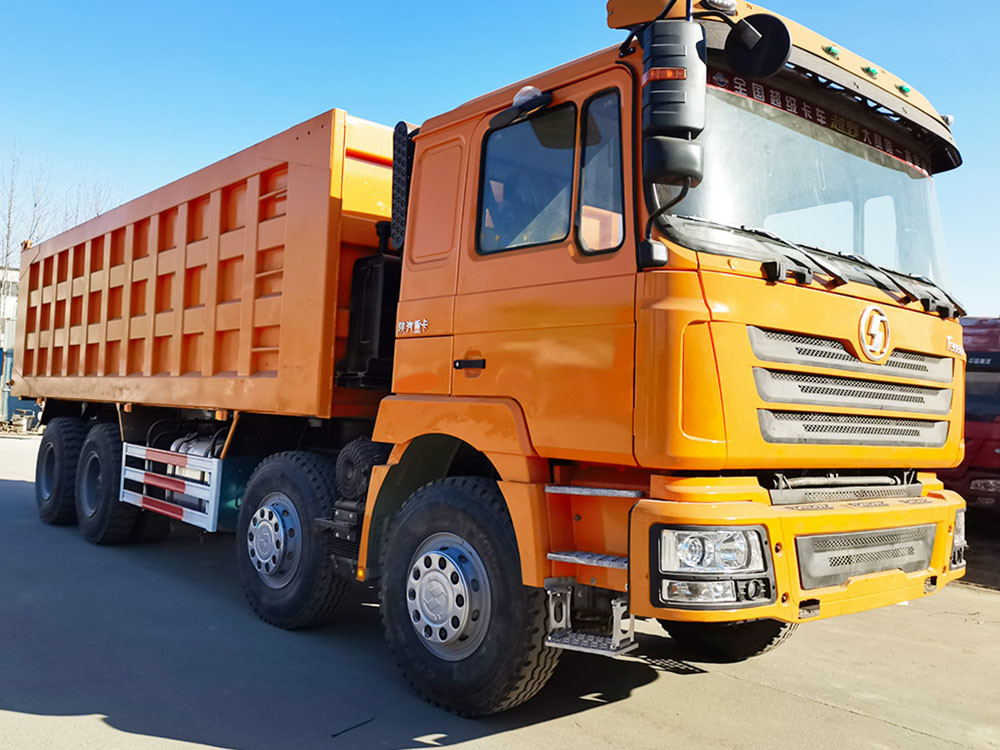

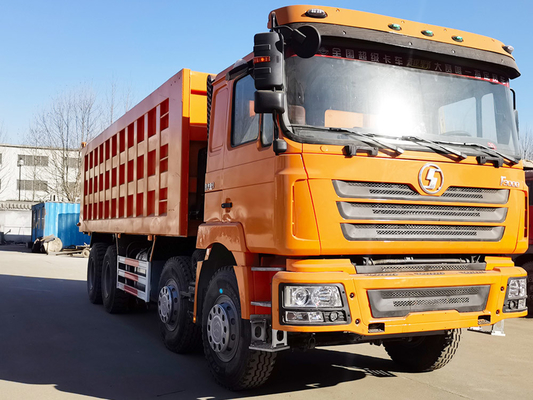

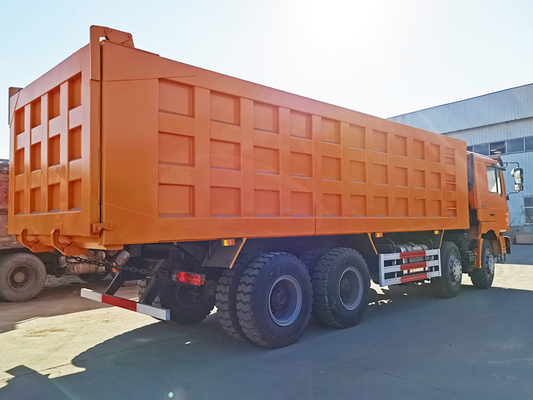

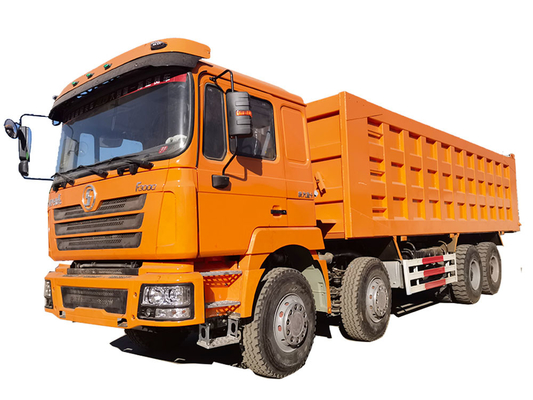

Product pictures:
Our advantage:
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you more
competitive advantages.
Factory Tour:
Brand New Shacman F3000 12 Wheeler 8 by 4 Tipper Truck Backdumper for Sale
PRODUCTS ADVANTAGE
* Original Price: FOB, CNF/CFR, CIF
* Excellent After-sale Service and Customization Service, we have our own spare parts team to supply after sale service. If there is quantity, we can establish branch company to supply after sale service.
FAQ:
Q. Why should we choose you?
A.Due to the Pricing Strategy,the same products, we can give you the lowest price.
Q.What kind of Payment can you accept?
A.T / T and L/C ,or D/P is all right to us.
Q.How long will it takes to ship?
A.Around 15-25 working days,it's up to the product and your needs.
Q.Do you have MOQ?
A.Actually no,1 Unit is ok.
Q.How about the Color , Specific configuration things?
A.It's up to you , most of them are optional and can be changed by your needs.
