Product Details:
Payment & Shipping Terms:
|
| Drive Form: | 6X4 | Horsepower: | 371Hp 375Hp |
|---|---|---|---|
| Color: | According To Customer Requirements | Load: | 30 TONS |
| Seats: | ≤5 | Front Track: | 2022mm |
| Cargo Box Form: | Back Flip Self-unloading | Fuel Type: | Diesel Fuel |
| High Light: | 371Hp Tipper Dump Truck,Tipper Dump Truck 30T,30T Howo 10 Wheeler Dump Truck |
||

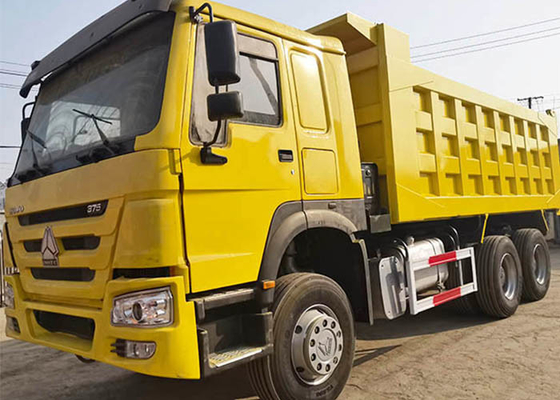

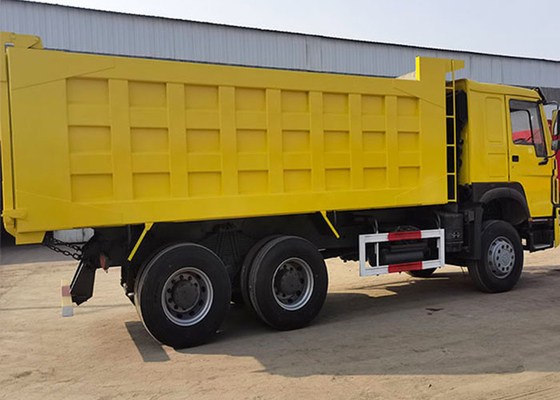

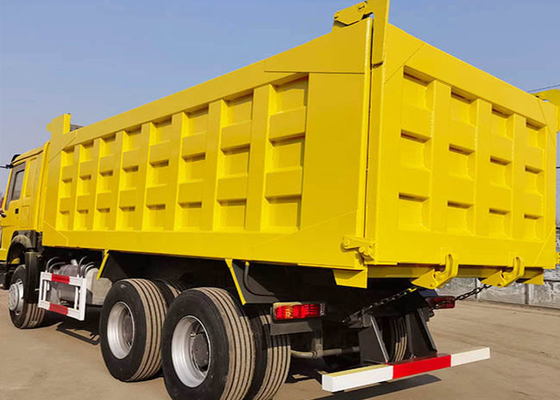

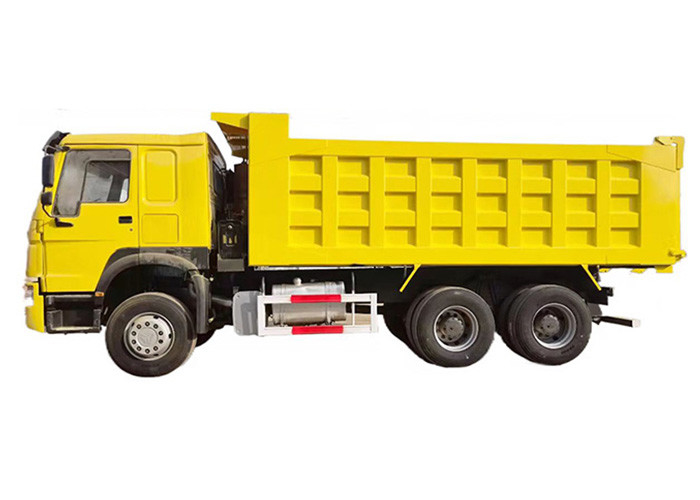

Brand New Sinotruk Howo 6X4 371Hp 375Hp 30Tons Load 10 Tires Tipper Dump Truck
Tipper Dump Truck Of Product Description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.
Tipper Dump Truck Of Product parameters:
| Drive form: | 6X4 | Maximum output power: | 274kW |
| Wheelbase: | 3825+ 1350mm | Max torque: | 1560N m |
| Body length: | 8.545 meters | Maximum torque speed: | 1200- 1500rpm |
| Body width: | 2.496 meters | Rated speed: | 2000rpm |
| Body height: | 3.45 meters | Engine form: | In- line six- cylinder, water- cooled, four-stroke, supercharged and intercooled, high- pressure common rail |
| Front track: | 2022mm | Cargo Length: | 5.6 meters |
| Rear Track: | 1830/ 1830mm | Cargo width: | 2.3 meters |
| Vehicle weight: | 12.19 tons | Cargo height: | 1.12 meters |
| Rated load: | 12.68 tons | Cargo box form: | Back flip self- unloading |
| Total mass: | 25 tons | Gearbox Model: | Sinotruk HW19712 |
| Tonnage class: | Heavy Truck | Forward gear: | 12 gears |
| Approach angle: | 19 degrees | Number of reverse gears: | 2 |
| Departure angle: | 23 degrees | Fuel tank capacity: | 300L |
| Remark: | With motor track, bottom 10 sides 8mm, Hyward 157 front top, bottom plate four longitudinal beams, motor track position is installed according to 1.5m carriage position, without tarpaulin cover, rear door frame channel steel, removable, with water tank flushing device. Optional speed ratio: 4.77 | Frame size: | 5.6×2.3×(1.2+0.3)mm |
| engine model: | Sinotruk D10.38-50 | Rear axle: | AC16 |
| Number of cylinders: | 6 | Rear axle allowable load: | 18000 ( with double shafts) kg |
| Fuel type: | diesel fuel | Speed ratio: | 5.45 |
| Displacement: | 9.726L | Number of spring pieces: | 10/12 |
| Emission Standards: | Euro 2/3/4/5 | Tire specifications: | 12.00R20 |
| Maximum horsepower: | 380 hp | Number of tires: | 10+1 |
This kind of dump truck has the advantages as below
1. Suitable for earthwork, gravel, bulk materials,etc.;
2. Dump a certain angle of unloading, high production efficiency;
3. Save Transportation costs;
4. Customized design to meet different customer needs.
