Product Details:
Payment & Shipping Terms:
|
| Drive Form: | 6X4 | Horsepower: | 371Hp 375Hp |
|---|---|---|---|
| Color: | According To Customer Requirements | Load: | 30 TONS |
| Seats: | ≤5 | Front Track: | 2022mm |
| Cargo Box Form: | Back Flip Self-unloading | Fuel Type: | Diesel Fuel |
| High Light: | 2022mm Sinotruk Howo 6x4 Dump Truck,Sinotruk Howo 6x4 Dump Truck 375Hp 2022mm,2022mm 375Hp 25 Ton Dump Truck |
||

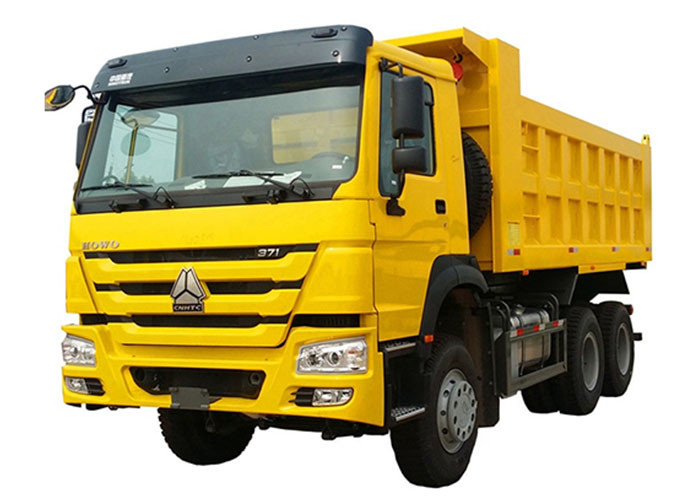

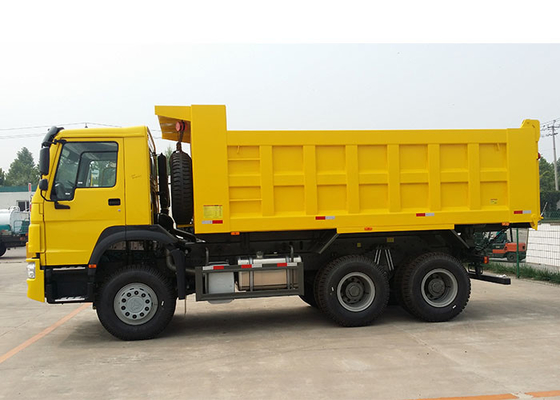

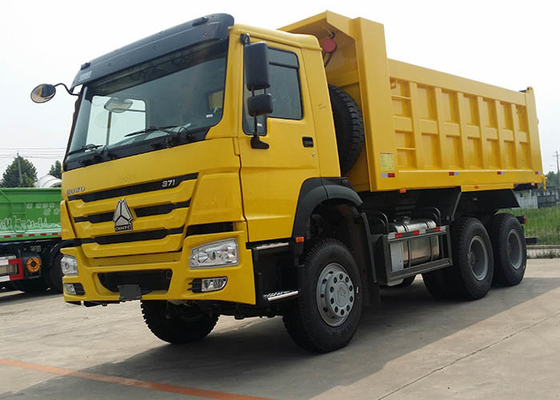

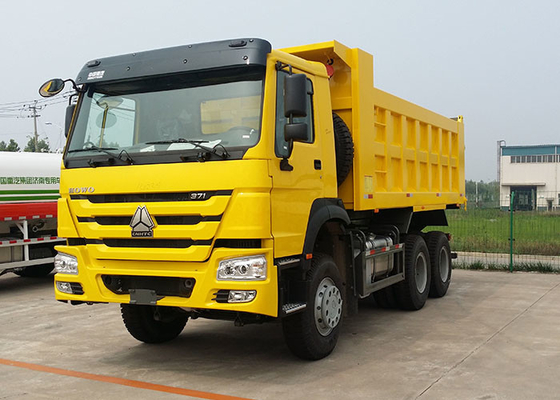

Brand New Sinotruk Howo 6X4 371Hp 375Hp 30Tons Load 10 Tires Tipper Dump Truck
Tipper Dump Truck Of Product Description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.
Tipper Dump Truck Of Product parameters:
| SPECIFICATION | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 8545×2496×3450 | |||
| Cargo body size (LxWxH) (mm) |
5600x2300x1500 Sand body,Middle lifting, Bottom 8 mm, Side 6 mm |
|||
| Approaching angle/Departure angle(°) | 19/23 | |||
| Overhang(front/rear) (mm) | 1500/1870 | |||
| Wheel base (mm) | 3825+1350 | |||
| Max speed(km/h) | 75 | |||
| Curb weight(kg) | 12460 | |||
| Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | ||
| Fuel type | Diesel | |||
| Power, max(kw/rpm) | 371HP | |||
| Emission | EUROII | |||
| Fuel tanker capacity(L) | 300L aluminum oil tank | |||
| Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Steering system | Model | ZF8118 | ||
| Front axle | HF9 | |||
| Rear axle | HC16 | |||
| Tire | 12.00R20 | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |||
Product details:
