Product Details:
Payment & Shipping Terms:
|
| Tire: | 12.00R20 | Cab: | HW76 |
|---|---|---|---|
| Fuel Type: | Diesel | Capacity (Load): | 30 - 40T |
| Drive Wheel: | 6X4 | Horse Power: | 371 Hp/375hp/420hp |
| High Light: | HC16 Green Tipper Dump Truck,Tipper Dump Truck CCC,CCC 20 Cubic Meter Dump Truck |
||

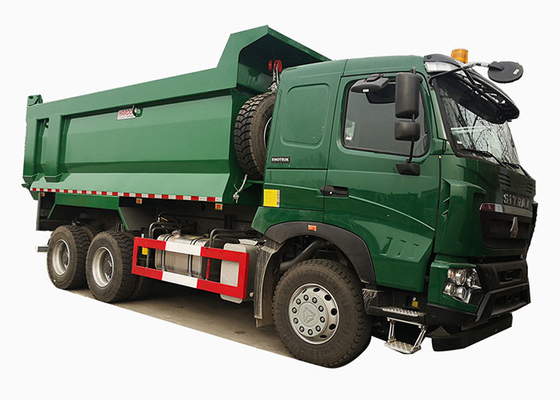

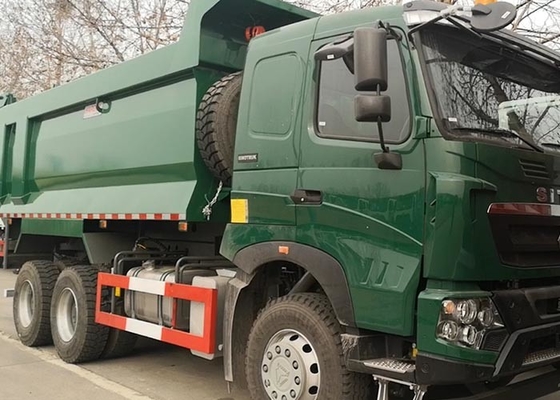

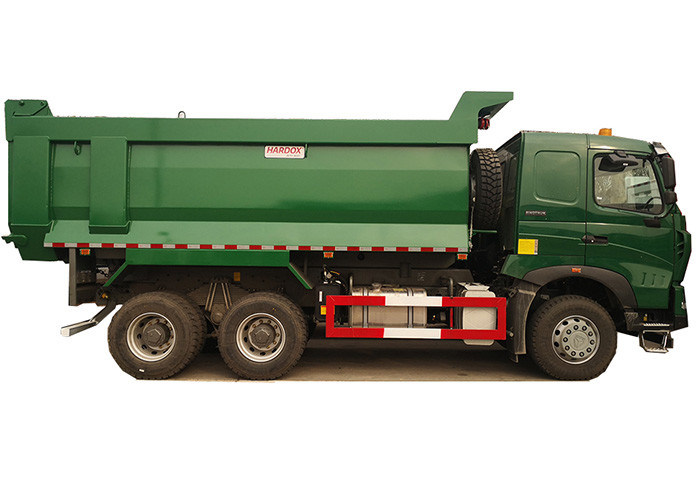

6X4 Tipper Dump Truck 20cbm Dump Truck Sinotruk HOWO 10 Wheels tipper truck
Tipper Dump Truck Of Product introduction:
A dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials (such as dirt, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plants only and the road vehicle is known as a tip lorry, tipper lorry (UK, India), tipper truck, tip truck, tip trailer or tipper trailer or simply a tipper.
Tipper Dump Truck Of Product parameters:
|
Dimension(Lx W xH)(unloaded)(mm)
|
9745×2496×3450mm
|
||
|
Cargo body size (LxWxH) (mm)
|
6800x2300x1500 Sand body,Front lifting, Bottom 8 mm, Side 6 mm
|
||
|
Approaching angle/Departure angle(°)
|
19/24
|
||
|
Overhang(front/rear) (mm)
|
1500/1625
|
||
|
Wheel base (mm)
|
1800+3200+1350mm
|
||
|
Max speed(km/h)
|
78
|
||
|
Curb weight(kg)
|
15400
|
||
|
Engine(Steyr technology, made in China)
|
Model
|
WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection
|
|
|
Fuel type
|
Diesel
|
||
|
Power
|
371HP
|
||
|
Emission
|
EUROIII
|
||
|
Transmission
|
Model
|
HW19710, 10 speeds forward and 2 reverse
|
|
|
Fuel tanker capacity(L)
|
300L aluminum oil tank
|
||
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
||
|
Steering system
|
Model
|
ZF8118
|
|
|
Front axle
|
HF9
|
||
|
Rear axle
|
HC16
|
||
|
Tire
|
12.00R20
|
||
Tipper Dump Truck Of Our advantage:
1. Every dump truck must be tested and quality inspected. The production process and testing process are strictly controlled to ensure the quality of every detail.
2. Each dump truck obtains an inspection certificate issued by an independent third-party certification company according to customer needs.
3. You will get excellent quality assurance Trust me,you can get the lowest price from us! Moreover, our truck has deep foundation in engine and gearbox , it's quality is more stable,maintenance is more convenient and faster, and the vehicle maintenance rate is higher.
We are used machinery for more than 10 years. We have sold many of our machines to all over the world.
This brand truck is just one of the heavy equipment we sell. we provide the following machinery is for you to choose.
FAQ:
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your dump truck?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. What's the delivery time?
The delivery time is within 30-50 working days after receiving your advance payment.
Q6. Can you supply some quick-wear truck or dump truck parts?
Yes, we can supply truck and dump truck, parts as your request.
