Product Details:
Payment & Shipping Terms:
|
| Brand Name: | SHACMAN | Size: | 6825x2490x3624 |
|---|---|---|---|
| Drive Wheel: | 6x4 | Tire: | 12.00-20,12.00R20,12R22.5,315/80R22.5 |
| Transmission: | FAST | Drive Type: | LHD&RHD |
| Gross Vehicle Weight: | 25000 Kg | Fuel Type: | Diesel |
| Transmission Type: | Manual | ||
| High Light: | 600L Howo Tractor Head,Howo Tractor Head 180kw,180kw Shacman H3000 Tractor Head |
||
Product introduction:
MILITARY QUALITY:SAFE & RELIABLE
* Lightweight Design
* Complete vehicle technology from European MAN platform, meeting 55 military truck standards. The vehicle pass the severe 200000km road test include high altitude,low and high temperature torture tests
MULTI FUNCTIONAL STEERING WHEEL
*Integral 450 four-direction adjustable steering wheel,multi-functional combination switch.
* Environment-friendly sound-absorbing material,overall low carbon foam floor mats,door and window dual sealing system,offering good heat preservation,insulation and noise reduction.
SUSPENSION SYSTEM UPGRADE
* A new generation of 4-point air suspension system and lateral shock absorber ,better NVH,the body shake resistance reaching European standards,comfort increased by 55%.
parameter:
| Types of: | tractor | Displacement: | 6.22L |
| Drive form: | 6X4 | Emission Standards: | Euro 2/3/4/5 |
| Wheelbase: | 5700mm | Maximum output power: | 180kw |
| engine: | Weichai WP6H245E61 | Maximum horsepower: | 245 hp |
| Gearbox: | Fast 8th gear | Engine form: | In-line six-cylinder, high pressure common rail, supercharged intercooler |
| Rear axle ratio: | 4.333 | Cab: | L5000 Short High Top |
| Body length: | 8.995 meters | Number of passengers allowed: | 3 people |
| Body width: | 2.55 meters | Seat row: | half row |
| Body height: | 3.15 meters | Driver's seat form: | Airbag shock absorber seat |
| Front track: | 1935mm | Gearbox Model: | Fast 8th gear |
| Rear Track: | 1860mm | Gearbox brand: | Fast |
| Vehicle weight: | 7.815 tons | Shift method: | manual |
| Rated load: | 9.99 tons | Forward gear: | 8th gear |
| Total mass: | 18 tons | Number of reverse gears: | 2 |
| Maximum speed: | 89KM/h | Shell material: | Aluminum alloy |
| Tonnage class: | medium card | Fuel tank material: | Aluminum alloy |
| Approach angle: | 16 degrees | Fuel tank capacity: | 600L |
| Departure angle: | 9 degrees | Front axle allowable load: | 6500KG |
| Front Suspension / Rear Suspension: | 1.34/2.655m | Description of rear axle: | 8.7T MAN single-stage reduction axle |
| Engine Brand: | Weichai | Rear axle allowable load: | 11500KG |
| Number of cylinders: | 6 | Number of spring pieces: | 3/3+3 |
| Fuel type: | diesel fuel | Tire specifications: | 275/80R22.5 |
| Cylinder arrangement: | In-line | Number of tires: | 6+1 |
Maintanence:
1.Check Check the oil pan, injection pump, oil bath air filter,oil in the power output gearbox, if the oil level rises regularly
2. Check the cooling water level in the tank, if the water is not enough,please add the water to the standard level. When the
temperature is below + 5oC,the engine if off work,please discharge the water.(when there is no antifreeze fluid)
3. Check and tighten bolts and nuts out of the engine, excluding oil leaks, water leaks, air leaks.
4. When working in dusty places, remove dust on the air filter. And,replace the air filter when necessary.
5. Clear dirt , dust and oil on the surface of engine.
6. Listening to the voice when diesel engine is running, observing the color of exhausted air,exclude the problem and irregularities found.
7. Replace engine oil,clean oil pan and oil strainer,oil filter tank, repalce the oil in the injection pump, according detailed manual.

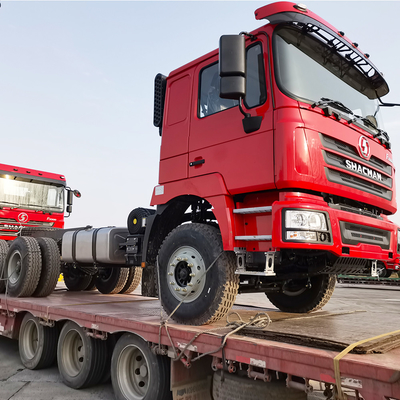

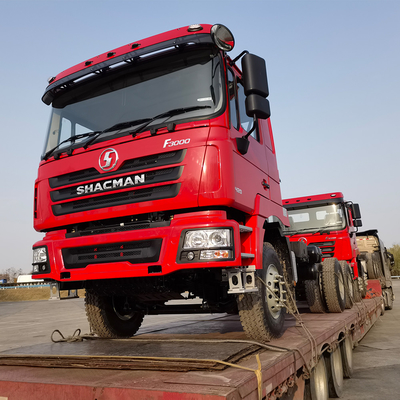

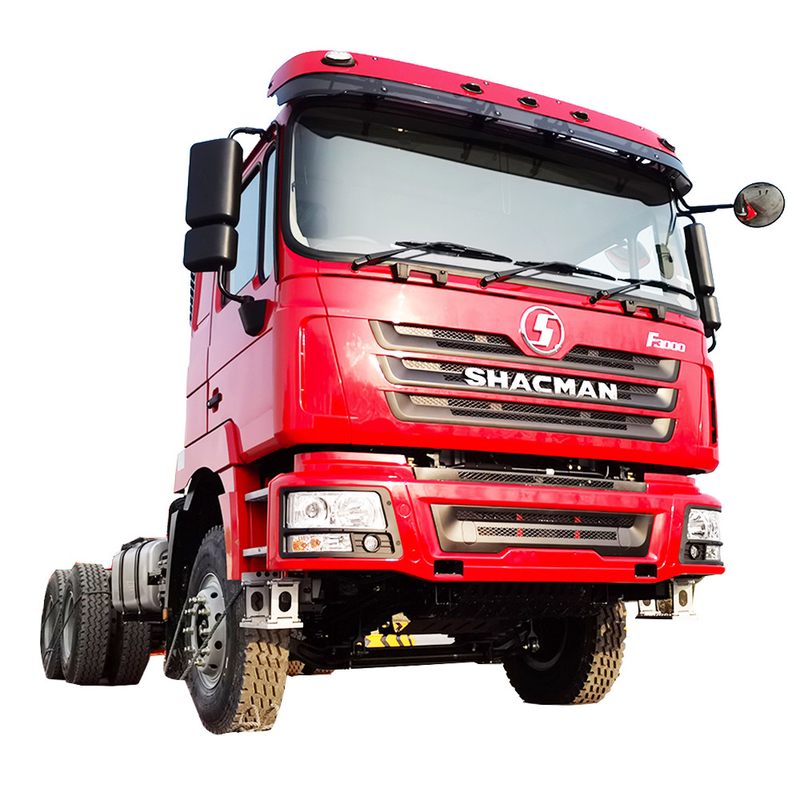

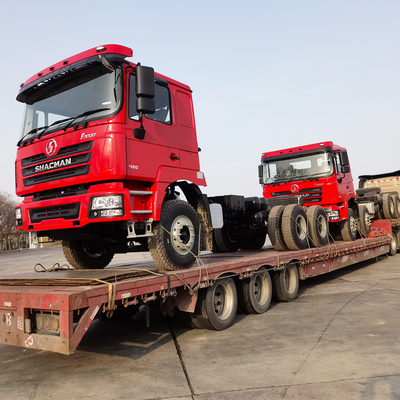

Product display:
Product details Display:
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
