Product Details:
Payment & Shipping Terms:
|
Horsepower: | 371 - 450hp | Steering BOSCH (ZF): | Power Steering |
---|---|---|---|
Drive System: | 6×4 | Tire Number: | 10 |
Wheel Base (mm): | 3900 | Air Conditioner: | Manual |
Overall Dimensions (L*W*H)(mm): | 6400x2500x3500 | Color: | Customer's Requirement |
High Light: | SITRAK Howo 6x4 Tractor Truck,Howo 6x4 Tractor Truck C7H,C7H Tractor Head Truck |

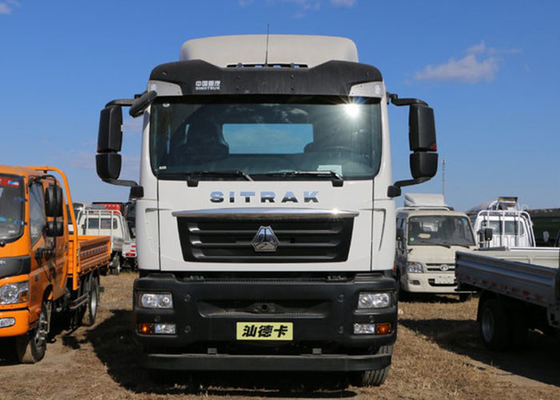

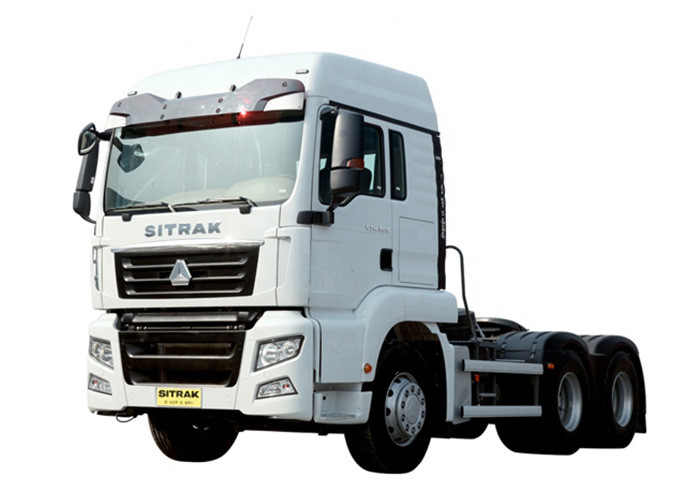

Truck Tractor Head Of Product description:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
This model is the proven product of SINOTRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded 16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Truck Tractor Head Of main technical parameters:
Sinotruk sitrak c7h Tractor Truck | ||
Model | ZZ4186V361HC1B | |
Drive System | 6×4 | |
Overall Dimensions (L*W*H)(mm) | 6400x2500x3500 | |
Total mass (kg) | 50000KG | |
Wheel base (mm) | 3900 | |
Engine | MC11.43-30 430HP Euro III | |
Gearbox |
ZF16S2230 TO without PTO 16 forwards & 2 reverses with synchronizer |
|
Clutch | 430 Diaphragm type | |
Steering | BOSCH (ZF) Power steering | |
Cab |
C7H-F,with one bunk With Air suspension driver’s seat With Air conditioner With 1 extinguisher |
|
Axle | Front axle | 7000kg |
Rear axle | 13000kg | |
Fifth wheel | 2 inch | |
Oil tank(L) | 600L+400L | |
Tyre | Front 385/65R22.5, Rear 315/80R22.5 | |
Suspension | Leaf spring | |
Brake system | WABCO air brake system with ABS |
Truck Tractor Head Of Product details:
Durable
※ Critical components utilize industry leading technology.
