| Drive Wheel: | 6x4 | Tire: | 12R22.5 Vacuum Tires With Spare Tire 10pics |
|---|---|---|---|
| King Pin: | 50#/90# | Gross Vehicle Weight: | 8800 Kg |
| Front Axle: | 1300 | Horsepower: | 351 - 450hp |
| Fuel Type: | Diesel | Segement: | Mini Truck |
| High Light: | 30T 375hp Truck Tractor Head,44.5 Ton Truck Tractor Head,50T 375hp Howo 371 Tractor Head |
||
CNHTC brand new and used 30-50 ton prime mover Howo 375hp 10 wheel tractor head for sale at low price
Product introduction:
MILITARY QUALITY:SAFE & RELIABLE
* Lightweight Design
* Complete vehicle technology from European MAN platform, meeting 55 military truck standards. The vehicle pass the severe 200000km road test include high altitude,low and high temperature torture tests
MULTI FUNCTIONAL STEERING WHEEL
*Integral 450 four-direction adjustable steering wheel,multi-functional combination switch.
* Environment-friendly sound-absorbing material,overall low carbon foam floor mats, door and window dual sealing system,offering good heat preservation,insulation and noise reduction.
SUSPENSION SYSTEM UPGRADE
* A new generation of 4-point air suspension system and lateral shock absorber ,better NVH,the body shake resistance reaching European standards,comfort increased by 55%.
parameter:
| Product Name | LSXDFL4251A9-T57E-965 | |
| Type | 6X4 Tractor | |
| Chassis Dimensions(mm) | ||
| Overall chassis length | 6810 | |
| Cab width | 2500 | |
| Cab height (unladen) | 3700 | |
| Wheel base | 3200+1300 | |
| Front overhang | 1500 | |
| Rear overhang | 810 | |
| vehicle weights(kg) | ||
| G.V.W | 25000 | |
| Curb weight(vehicle) | 8500 | |
| Frame profile Dimensions(mm) | ||
| Frame width (front ) | 940 | |
| Frame width ( rear ) | 860 | |
| Section height | 300 | |
| Section width | 90 | |
| Engine | Type | Cummins L375 30 |
| Emission level | Euro 2 EGR | |
| Maximum power | 276 Kw at 2200 rpm | |
| Maximum torque | 1480N.m at 1400 rpm | |
| Number of cylinders | 6 | |
| Displacement (lit) | 8.9 | |
| Cylinder bore (mm) | 114 | |
| Stroke (mm) | 145 | |
| System | Water cooled,turbocharged ,Air cooled ,with EGR | |
| Clutch | Type | ¢430 |
| operating system | Hydraulic control with air booster, pulling | |
| Gear box | Type | FAST 12JS160TA |
| Number of gears | 12 forward gears& 2reverse ,synchronized | |
| Ratios | 12.10; 9.41; 7.31; 5.71; 4.46;3.48;2.71;2.11; 1.64; 1.28; 1.00; 0.78; R1:11.56;R2:2.59 | |
Maintanence:
1.Check Check the oil pan, injection pump, oil bath air filter,oil in the power output gearbox, if the oil level rises regularly
2. Check the cooling water level in the tank, if the water is not enough,please add the water
to the standard level. When the
temperature is below + 5oC,the engine if off work,please discharge the water.
(when there is no antifreeze fluid)
3. Check and tighten bolts and nuts out of the engine, excluding oil leaks,
water leaks, air leaks.
4. When working in dusty places, remove dust on the air filter. And,replace the air
filter when necessary.
5. Clear dirt , dust and oil on the surface of engine.
6. Listening to the voice when diesel engine is running, observing the color of exhausted air,
exclude the problem and
irregularities found.
7. Replace engine oil,clean oil pan and oil strainer,oil filter tank, repalce the oil in the
injection pump, according detailed manual.

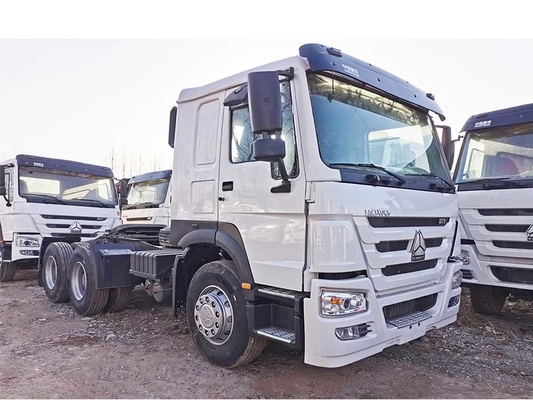

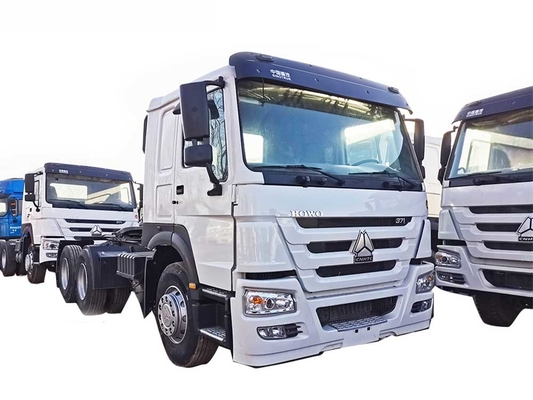

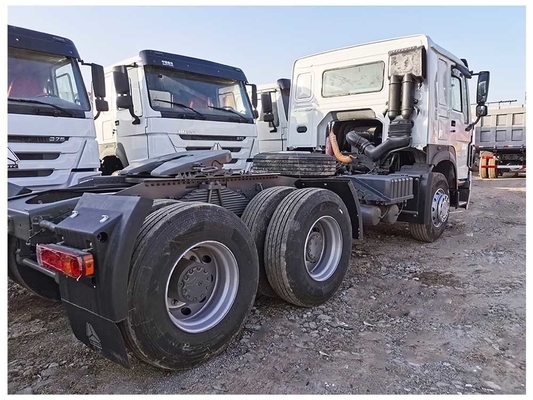

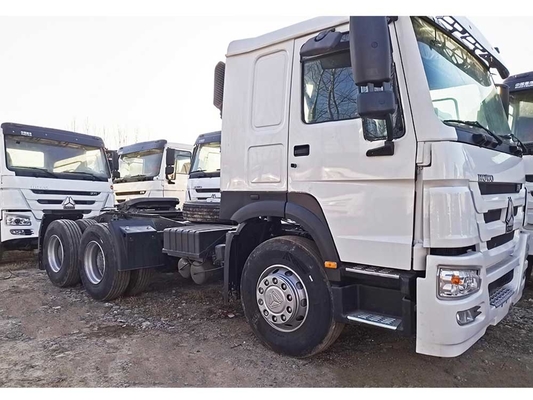

Product display:
Product details Display:
