Product Details:
Payment & Shipping Terms:
|
| Dimensions: | 12500*2500*1560mm | Self-respect: | About 7 Tons |
|---|---|---|---|
| Warranty/Certificate: | 12 Months | Production Cycle: | 15 Days |
| Curb Quality: | 67 Tons | Load: | 60 Tons |
| Tow Pin Height: | 1300mm | Wheelbase: | 1310mm |
| Wheel Base: | 1840mm | Beam: | Q345 |
| Edge Beam: | Q345 Channel Steel | ||
| High Light: | 1300mm Flatbed Container Semi Trailer,Flatbed Container Semi Trailer 20ft,20ft Flatbed Truck For Bulk Cargo |
||
Product introduction:
1) Reinforced main beam and side beam to ensure high loading.
2) Adopting China made best brand FUWA axle, Triangle tyres
3) 12 pcs container lock to transport 1 x40ft container or 2 x 20ft container
parameter:
| product name | 40-foot flat container transport truck | ||
| Transport medium | Bulk cargo | ||
| Dimensions | 12500*2500*1560mm | ||
| Self-respect | About 7 tons | ||
| Warranty/Certificate | 12 months | ||
| Production cycle | 15 days | ||
| Curb quality | 67 tons | ||
| Load | 60 tons | ||
| Specification | |||
| Dimensions | 12500*2500*1560mm | ||
| Tow pin height | 1300mm | ||
| Wheelbase | 1310mm | ||
| Wheel base | 1840mm | ||
| Frame body configuration | |||
| Item | Material | Specification | |
| Beam | Q345 | "The height is 500mm, the upper wing plate is 14mm, the lower wing plate is 16mm, and the vertical plate is 8mm; " |
|
| beam | Q345 channel steel | 100mm channel steel | |
| Edge beam | Q345 channel steel | 160mm channel steel | |
| Bottom plate | Q235 | 3mm | |
| Accessories | |||
| Suspension | 3-axis heavy machinery suspension | Leaf spring | 6 racks-90*13*10 |
| Axle specifications/brand | 13T/Fuhua | Number of axles | 3 pieces |
| Tire specification/brand | 12R22.5 | Number of tires | 12 Article |
| Steel ring specification/brand | 9.0-22.5 | Number of steel rims | 12 |
| Outrigger specifications/brand | 28T/Yahua | Traction pin specifications | 50# or 90# interchangeable |
| Brake system | |||
| Brake valve brand | WABCO | Brake chamber specifications/quantity | T30/30-6 only |
| Brake system | Emergency brake system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air storage tanks | ||
| Electrical circuit system | |||
| Circuit socket | 7-hole socket | Voltage | 24V |
| Lamps | LED lights | Two rear tail lights (including two steering lights, two brake lights, two constant lights), 8 side lights, and two rear triangle reflectors; | |
| Appendix | |||
| 1 tool box | tool:Axle wrench, rocker | ||
| 1 spare tire rack | Water tank | ||
| Lock hands | 8 | ||
Features:
1. Multi functional design,ISO containers,timbers,bulk cargo,bagged cement or grain,animals transportation
2. Side wall removable,one driver can easily handle it
3. Main beam warranty 2 years
4. World wide semi trailer parts brand like BPW,WABCO,JOST,brand
Product Introduction:
we provide the flat bed trailer can be used to transport containers ,bulk cargo and other goods
, and we also can according to your requirements to make this trailer.LSXC production the flatbed
trailer all configurations and accessories used domestic and aboard famous brand. Our main beam
material use Q345,it has high-strength and strong stiffness features.other type flatbed trailer ,
like extendable flatbed trailer , flatbed trailer for transporting logs , and flatbed trailer with side wall.

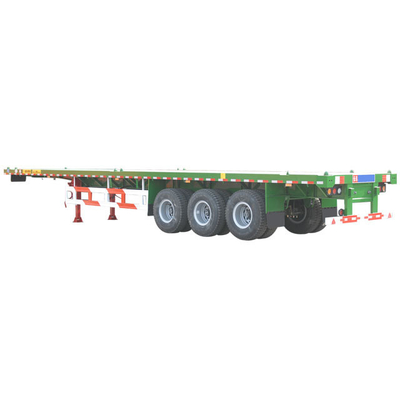

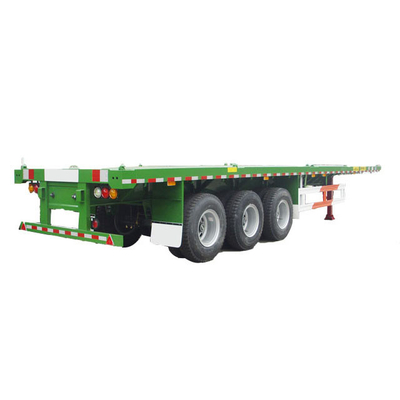

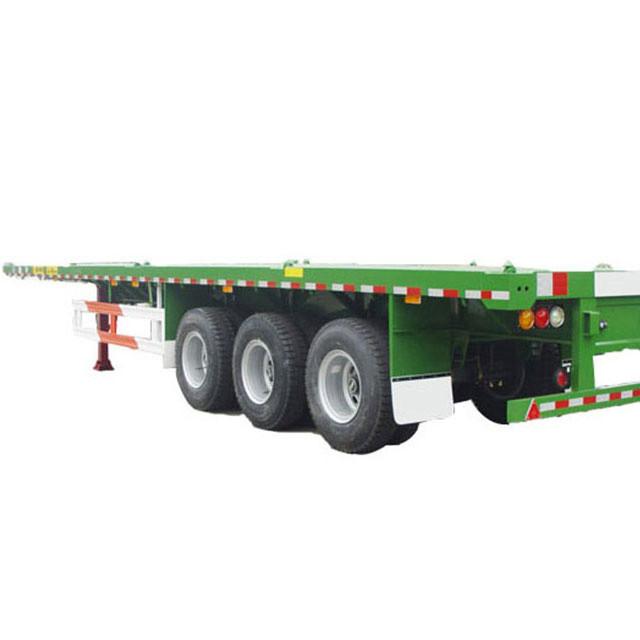

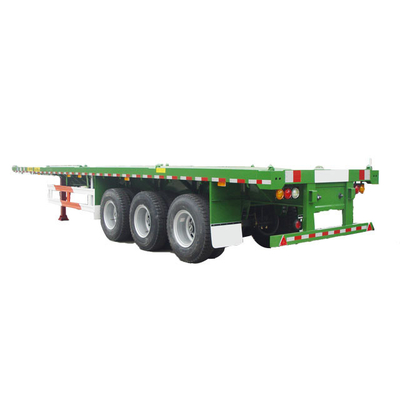

Product display:
details:
FAQ:
1. Does your company have its own factory?
Yes, we have a factory ourselves and we have been engaged in this business in China for several years. Our factory is very famous for producing various trailers in Henan, China
2. How do we guarantee the quality?
It is always a pre-production sample before mass production;
Always perform a final inspection before shipment;
3. What can you buy from us?
Flatbed container trailers, cargo trailers, dump trucks, tank trailers, spare parts
4. What services can we provide?
Accepted delivery terms: FOB, CIF, EXW;
Accepted payment currencies: U.S. dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc;
Language: English, Chinese
5. Can you meet my special requirements?
really! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
