Product Details:
Payment & Shipping Terms:
|
| Size: | 12500*2500*1600mm | Function: | Transport 20ft 40ft 60ft Container |
|---|---|---|---|
| King Pin: | 2"(50mm) Or 3.5"(90mm) JOST | Max Payload: | >30000 Kg, >30000 Kg |
| Tire: | 12R22.5 | Product Name: | Container Flatbed Semi Trailer |
| Color: | Custom's Requirement | Material: | Steel |
| Side Beam: | 16# Channel Steel, Q235 | Axle: | FUWA 13T, 3PCS |
| High Light: | 12m Flatbed Truck Trailer,Flatbed Truck Trailer 12R22.5,Flatbed Semi Trailer Snowrunner |
||
Flatbed Truck Trailer 2020 LSXC Factory Sale 40ft Semi-trailer Steel with FUWA axle
Product introduction
1) Reinforced main beam and side beam to ensure high loading.
2) Adopting China made best brand FUWA axle, Triangle tyres
3) 12 pcs container lock to transport 1 x40ft container or 2 x 20ft container
parameter:
| Tare Weight (KG) | 6200--6600 |
| Loading Weight (KG) | 40000 |
| Model Name | 3 Axle Flatbed Container Semi Trailer |
| Overall Dimension(L"W*H) | 12500*2500*1600mm |
| Axle | FUWA 13T, 3PCS |
| Suspension system | Common mechanical suspension 10PCS |
| Platform plate | 3mm diamond plate |
| Side beam | 16# channel steel, Q235 |
| Container Twist Lock | 12PCS |
| Tyre | 12R22.5 |
| Rim | 8.0--22.5 |
| Traction Pin | 2" (50mm) or 3.5" (90mm), changeable |
| Landing Gear | Standard 28Tons |
| Brake system | Dual Line braking system |
| Painting | Nude packing, polish with wax before shipment |
| Function | Transport 20ft 40ft 60ft Container |
| Color | Customers Optional |
| Main beam | Q345B. The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16mm, middle plate is 8mm. |
| Electrical system | 1) Voltage: 24v, 2)Receptacle: 7 ways (7 wire harness) Tail lamp with turn signal, brake light & reflector, side lamp etc. One set 6-core standard Cable. |
Features:
1. Multi functional design,ISO containers,timbers,bulk cargo,bagged cement or grain,animals transportation
2. Side wall removable,one driver can easily handle it
3. Main beam warranty 2 years
4. World wide semi trailer parts brand like BPW,WABCO,JOST,brand
Henan Lishixin Logistics Equipment Co., Ltd. is located in Zhengzhou Free Trade Zone,
Henan Province, China, with a registered capital of US$3,500,000. Luxxin specializes
in the research and development, mass production and sales of 20FT, 40FT flatbed
semi-trailers, low-bed semi-trailers, skeleton semi-trailers, and other special logistics
and transportation equipment. Relying on the abundant transportation advantages
and resources in Central China, Li Shixin is committed to providing global customers
with high-quality and cost-effective transportation equipment.

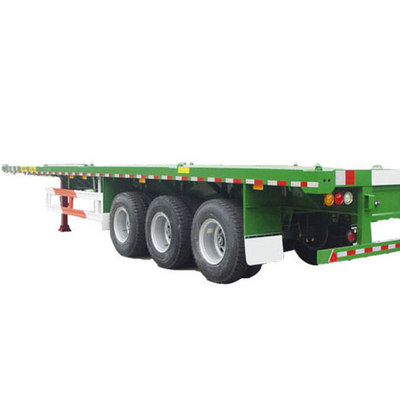

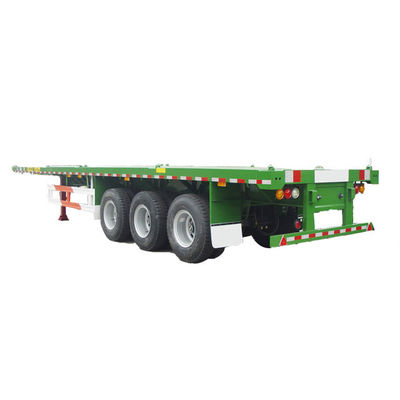

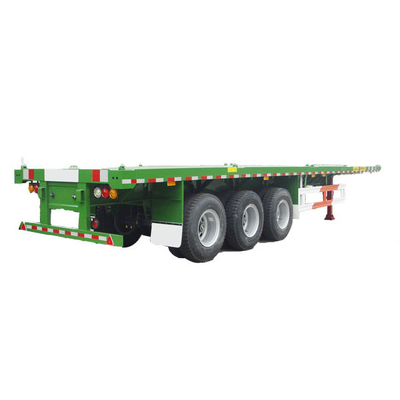

Product display:
details:

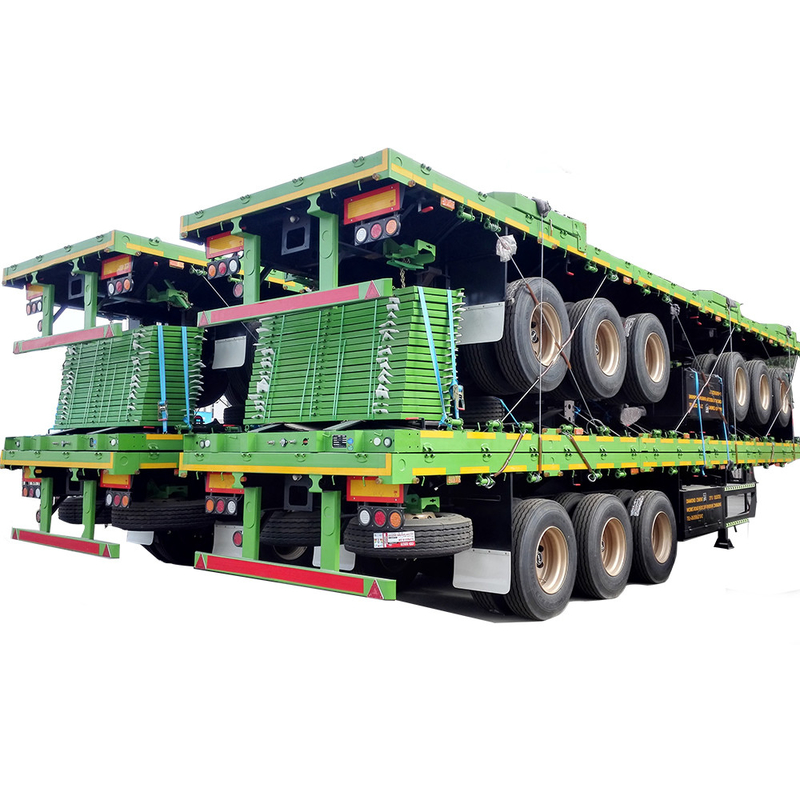

factory:
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions
of trailer,quantity etc. The more info
you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
