Product Details:
Payment & Shipping Terms:
|
| Weight: | 7000KGS | Payload: | 60000KGS |
|---|---|---|---|
| Overall Length: | 13000mm | Overall Width: | 2480mm |
| Axle: | 2/3 /4 Axles | King Pin: | JOST Brand 2” Bolt-in King Pin |
| Spring: | Leaf Spring Or Air Bag | Spare Tyre: | One Set Of Spare Tire Including A Carrier |
| High Light: | 5000kg Low Bed Semi Trailer,Low Bed Semi Trailer BPW,BPW 3 Axle Low Bed Trailer |
||
Excavator low bed trailer 3 axle low bed 50 60 tons low bed semi truck heavy airborne machinery trailer for sale
Low bed semi-trailer is usually used to transport heavy vehicles (e.g., tractors, buses and special vehicles, etc.), rail vehicles, mining machine forestry machinery,agricultural machinery, such as excavators, bulldozers, loaders, paver, cranes, etc.) and other heavy goods, its center of gravity is lower, the better the stability and safety, transport overheight cargo and
overhead obstacles by the stronger the ability.
Product parameters:
|
Weight
|
7000KGS
|
|
Payload
|
60000KGS
|
|
Overall Length
|
13000mm
|
|
Overall Width
|
2480mm
|
|
Chassis
|
Heavy duty and extra durability designed I beam;
Opting for high tensile steel Q345; welded by automatic Submerged-Arc processes; Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm,width 140mm |
|
Axle
|
2/3 /4 axles
|
|
Brand name: BPW, L1 or FUWA
|
|
|
Suspension
|
Mechanical suspension or air suspension
|
|
Spring
|
Leaf spring or air bag
|
|
King Pin
|
JOST brand 2” Bolt-in King Pin
|
|
Landing Gear
|
JOST brand Two-speed, manual operating, heavy duty landing gear
|
|
Wheel Rim
|
8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
|
|
Twist Lock
|
12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
|
|
Tyre
|
11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
|
|
Spare Tyre
|
One set of spare tire including a carrier
|
|
Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
|
|
Painting
|
Complete Chassis sand blasting to clean rust;
1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories
|
One standard tool box
|
1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane,
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

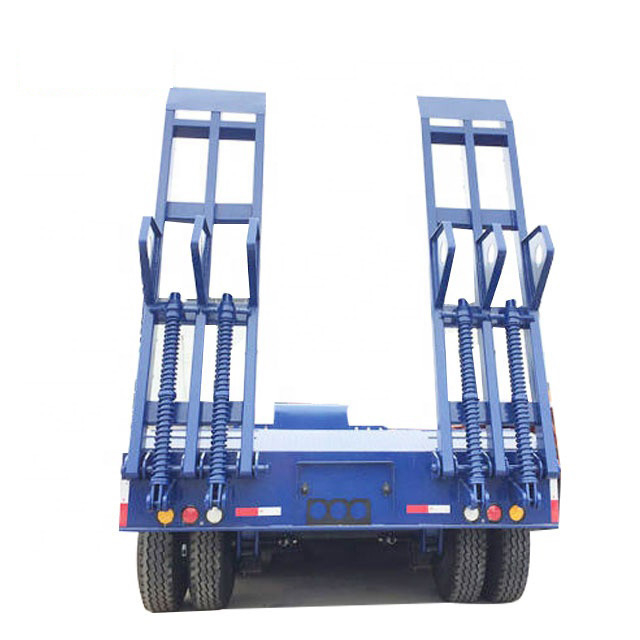

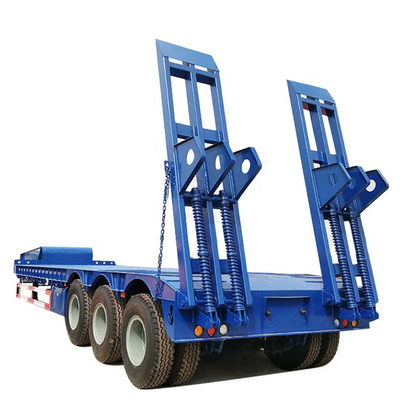

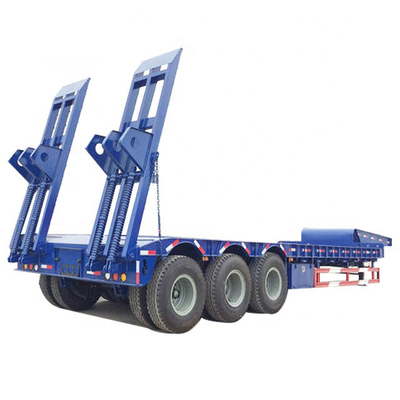

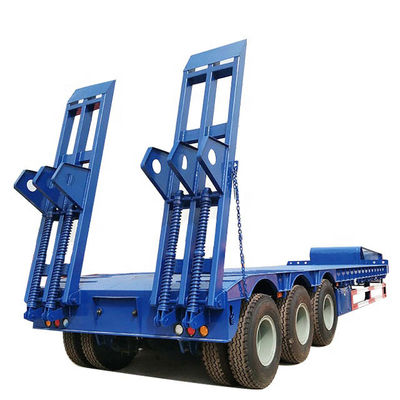

Product pictures:
details:
factory:
FAQ:
Q:How is your warranty?
A:We prefer buyout service,but don't worry, we provide technical support and parts purchase
channels throughout.If you need service, it’s all right, but the price may increase.
Q:What kind of Payment can you accept?
A:T / T and L/C is all right to us.
Q:How long will it takes to ship?
A:Around 15-25 working days.
Q:What is your MOQ?
A:1 Unit.
Q: How about the Color , Specific configuration things?
A:It's up to you , most of them are optional and can be changed by your needs.
