| Platform Thickness(mm): | 4mm | Overall Dimension(mm): | 13000x3000x1650mm |
|---|---|---|---|
| Working Deck Dimension(mm): | 9000x3000x1350mm | Payload: | 60,000kg |
| Tire: | 11.00R20, 12 Pcs Taitong Brand | Safety Guard: | With Standard |
| Emergency Relay Valve: | Wabco Relay Valve | Light: | LED Light |
| High Light: | 20FT 3 Axle Low Bed Trailer,3 Axle Low Bed Trailer 11.00R20,11.00R20 50 Tons Trailer Low |
||
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.

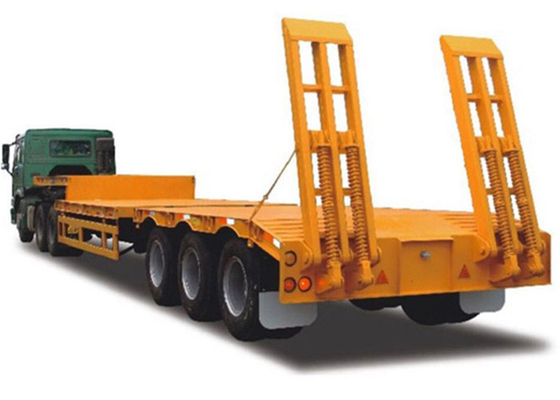

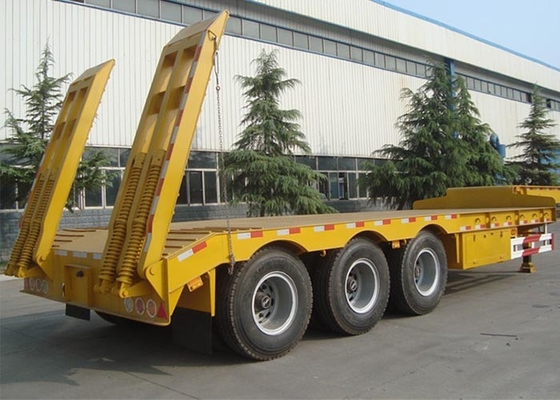

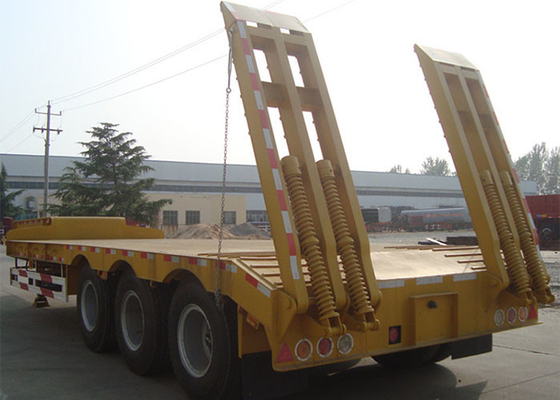

6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
|
Overall Dimension(mm)
|
13000x3000x1650mm
|
|
Working Deck Dimension(mm)
|
9000x3000x1350mm
|
|
Platform thickness(mm)
|
4mm
|
|
Main Beam
|
“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
|
Wheelbase
|
7,650mm+1,310mm+1,310mm
|
|
Payload
|
60,000kg
|
|
Axle
|
3X13Ton, ZY brand optional FUWA brand
one hundred fifty thousand Kilometers no need maintenance |
|
Tire
|
11.00R20, 12 pcs Taitong brand
|
|
Rim
|
8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
|
|
Suspension system
|
Common Mechanical Suspension
|
|
Steel Spring
|
10/10/10 leaf spring with 90mm(W) *13mm(thickness)
|
|
Brake system:
|
Dual line pneumatic brake, SAE hose and connector,optional ABS
|
|
Brake air chamber
|
6 units T30/30 spring brake chambers
|
|
Emergency relay valve
|
Wabco relay valve
|
|
Traction/King Pin
|
2” and 3.5” removable Kingpin
|
|
Landing Gear
|
28ton
|
|
Tool box
|
1pcs, One crank and one shaft head wrench
|
|
Ramp
|
Heavy duty trailer ramp
|
|
Spare wheel carriers
|
2 pcs
|
|
bumper
|
Rear bumper
|
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core electric cable protected by PVC conduit on main frame
|
Low Bed Semi Trailer Of Related Design Drawing:
Low Bed Semi Trailer Of Our Advantages:
FAQ:
1. Can it be customized to my needs?
Of course, the sales manager and technical staff will customize the car according to your needs, confirm the plan and details for you, and arrange production after you sign and confirm!
2. How long is the lead time?
Trailer production cycle is 7-25 days, we will reasonably arrange the production time of the factory according to your urgency, and there are some stock available for you to choose.
3. How long is the warranty period?
We will provide spare parts for free within one year, and provide you with vehicle operation and maintenance skills, life-long vehicle consultation, and we promise that you will receive timely feedback and solutions for any suggestions on trailers
4. What is the price of the trailer?
Different configurations and different prices, the sales manager will provide more cost-effective products according to your budget.
5. What payment methods are available?
You can choose T/T, L/T or other feasible payment methods
