Product Details:
Payment & Shipping Terms:
|
| Gooseneck: | For Chosse | Tare Weight: | Approx. 8000kgs-12800kgs |
|---|---|---|---|
| Capacity: | 30 Ton - 100 Ton | Spare Tire Carrier: | 2 Pieces |
| Type: | Low Bed Semi Trailer | Safety Guard: | With Standard |
| Accessories: | One Standard Tool Box | Light: | LED Light |
| High Light: | 60000kg Low Bed Semi Trailer,Q345B Low Bed Semi Trailer JOST Detachable,JOST Lowboy Semi Trailer Q345B Gooseneck |
||

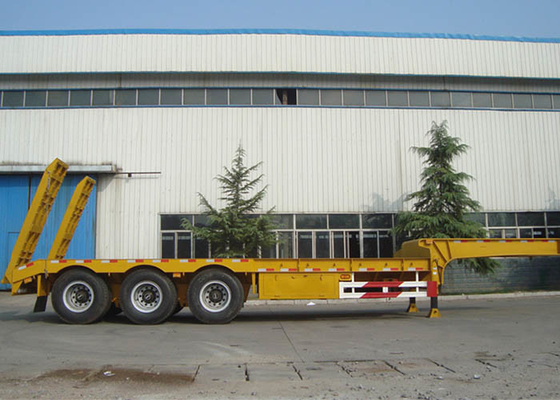

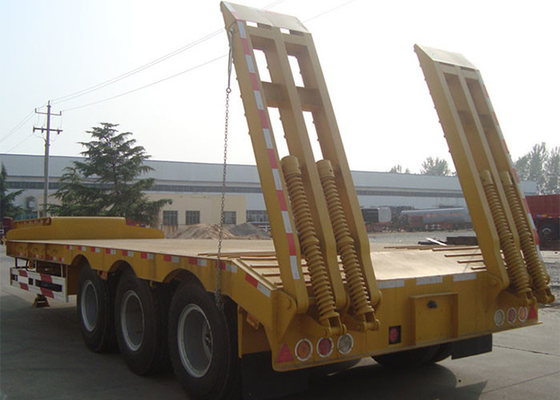

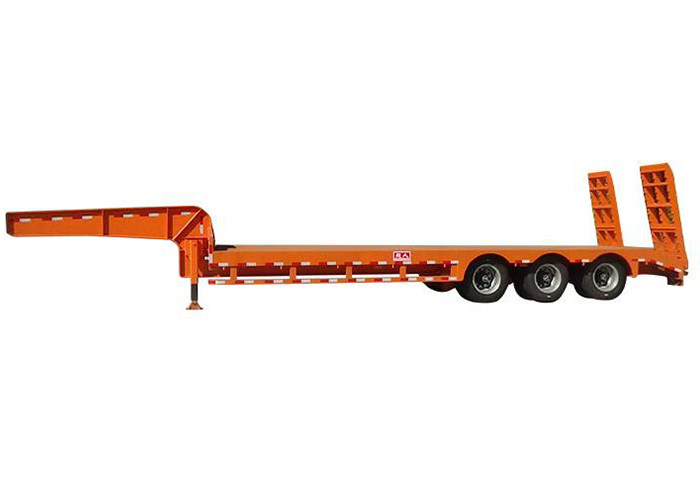

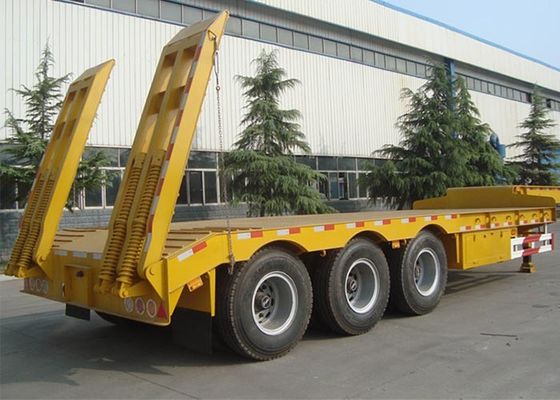

Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer. Our lowbed trailer choose Q345B carbon
high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc. trailers will be inspected before painting ensure every detail in good condition. We are manufacturer, provide customized service, design as the customers’ every request. Our design ability has reached a domestic first level, rich production experience, short delivery time.
Our company has passed ISO9001 quality system certification, production of lowbed trailer in China has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.
|
Type
|
Low bed semi trailer
|
|
Dimension
|
9500-16500*2500-3000*3200 (can be customized)
|
|
Tare weight
|
Approx. 8000kgs-12800kgs
|
|
Capacity
|
30 ton - 100 ton
|
|
Main beam
|
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm down plate is 16mm-25mm ; Material is Q345B Steel.
|
|
Side beam
|
16 mm- 25 mm channel steel (Material is Q235 steel)
|
|
Platform
|
3 mm - 5 mm thickness chequered plate or can be optional
|
|
Gooseneck
|
For chosse
|
|
Ladder
|
Manual type or Hydraulic type
|
|
Axle
|
13/16T, FUWA / BPW / SHENGRUN brand etc
|
|
King pin
|
Jost 2.0 or 3.5 inch bolted type
|
|
Suspension
|
Mechanical suspension(Germany type or America type) or Air suspension
|
|
Leaf spring
|
90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer
|
|
Braking system
|
WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank
|
|
Rim
|
9.0*22.5 / 8.0-20 / 8.5-20
|
|
Tire
|
12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
|
|
ABS
|
Optional
|
|
Fire extinguiser
|
Two pieces 4 kgs
|
|
Spare tire carrier
|
2 pieces
|
|
Safety guard
|
With standard
|
|
Tool box
|
One piece, 1mx0.5mx0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|
Accessories
|
One standard tool box
|
|
Light
|
LED light
|
|
Shipping terms
|
By bulk vessel or RORO or 40 HQ container
|
Low Bed Semi Trailer Of Related Design Drawing:
Low Bed Semi Trailer Of Our Advantages:
FAQ:
1. Can it be customized to my needs?
Of course, the sales manager and technical staff will customize the car according to your needs, confirm the plan and details for you, and arrange production after you sign and confirm!
2. How long is the lead time?
Trailer production cycle is 7-25 days, we will reasonably arrange the production time of the factory according to your urgency, and there are some stock available for you to choose.
3. How long is the warranty period?
We will provide spare parts for free within one year, and provide you with vehicle operation and maintenance skills, life-long vehicle consultation, and we promise that you will receive timely feedback and solutions for any suggestions on trailers
4. What is the price of the trailer?
Different configurations and different prices, the sales manager will provide more cost-effective products according to your budget.
5. What payment methods are available?
You can choose T/T, L/T or other feasible payment methods
