Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel For This ISO Tank Container | Color: | White And Blue For Is 20feet ISO Container |
|---|---|---|---|
| Type: | 20feet T50 LPG ISO Container | Pressure: | 1.8Mpa For This ISO Tank Container Price |
| HYDROSTATIC TEST PRESSURE: | 2.34Mpa For This ISO Tank | NOMINAL THICKNESS OF SHELL: | 18MM For This Tank Container |
| High Light: | Q345D 40 Ft Iso Tank Container,40 Ft Iso Tank Container 22 Tons CCS,CCS Iso Fuel Container |
||
20FT T50 LPG/Chlorine/Trichloroethane/Propane/Isobutane/Ammonia/Methyl/Refrigerant Gas Storage 22tons ISO Tank Container
1. The functions of this series container tanker:
***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,Chlorine,LPG,Ammonia etc. Gas Conainer.
*** The volume is under 24 cube meters, we can manufacture it according to your needs.
2. The specification of this series ISO LPG Tank Container:
| Dimension of the 20FT LPG ISO Tank Container with Lloyds Certificates | ||||||
| Description and Function Target | ||||||
| Items | Unit | Parameter | ||||
| DESIGN CODES AND REGULATIONS | ASME BPVC.VIII. 1--2015Ed+CASE2260-1,T50 UN PORTALBE TANK(IMDG, RID/ADR) TIR,UIC,CSC,TC,ISO 1496-3,USDOT,FRA(by SP). | |||||
| ASME Certification mark stamping | YES | |||||
| M.A.W.P | 1.8/-0.1 MPa AT 55℃ | |||||
| CONTENTS | LPG | |||||
| External dimension/Frame Dimension(LxWxH) | Meter | 6.058*2.438*2.591 | ||||
| TOTAL VOLUME(NOMINAL ±1%) | m³ | 24.65 | ||||
| Max. Payload Gross Weight | kg | 34000 | ||||
| Allowance stacking Mass | kg | 192000 | ||||
| Tare Weight | kg | 7520 | ||||
| Design temperature | ℃ | -40 to +50 | ||||
| HYDROSTATIC TEST PRESSURE | 2.34 MPa AT 4-48℃ | |||||
| Max. Design Minus Tempretures | -40℃ | |||||
| Pressure Relief Valves' SETTING | 1.80 MPa | |||||
| sunshield | Aluminium | |||||
| CORROSION ALLOWANCE | 1MM | |||||
| NOMINAL THICKNESS OF SHELL | 15MM | |||||
| Minimum THICKNESS OF HEAD(A/F) | 13.43mm | |||||
| HEAT TREATMENT | Postweld heat treatment | |||||
| JOINT EFFICIENCY(SHELL/HEAD) | 1.0/1.0 | |||||
| RT(SHELL/HEAD) | 100%/100% | |||||
| MT | All the nozzle welds and more than 6mm angle welds attached to vessel | |||||
| LEAKAGE TEST | 0.7MPa | |||||
| CYLINDER/HEAD | SA-612M Normalized | |||||
| FLANGES/WELD-IN FORGINGS | SA-350M LF2 Cl.1 N | |||||
| Impact test required of cylinder/head by ASME VIII DIV1 | Not required except forging-PER UCS-66 | |||||
| GASKET | PTFE | |||||
| MANWAY(PRESSURE) STUD/NUT | SA-193 B7/SA-194 2H | |||||
| FRAME-PLATE/HOLLOW SECTIONS | Q345D | |||||

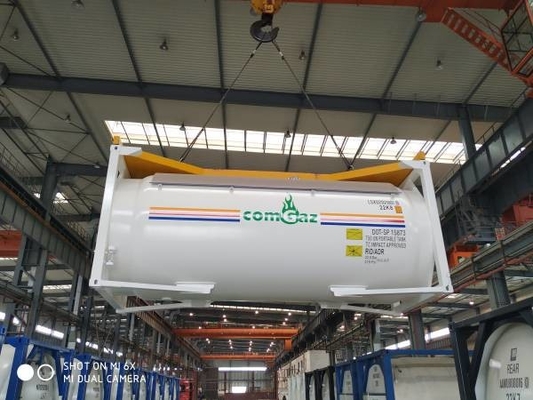

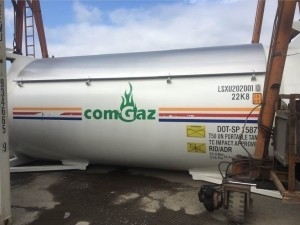

3. Some photos for our Tank Container Workshop:
4. FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services for this LPG Container;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted for this ISO Storage Pressure Tank Container;
>>>Any Color & Logo Available for this ISO Storage Pressure Tank Container;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.
5. Buying Guides
**You please send us your enquiry for this ISO Container;
**We shall reply you with the quotation within 12 hours for this LPG ISO Tank Container;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production for this ISO Tank;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
6. BRIEF INTRODUCTION TO OUR FACTORY:
Henan Lishixin, a special Logistics manufacturing corporation
with the professional experience more than 30 years, certified by the Chinese
government manufacture, Majored in Tank Container and Other transportation Equipments' manufacturing, our products are mainly exported to Philippine, Ethiopia, Thailand, Myanmar, Vietnam,Congo, Kenya, Tanzania, etc...More than 20 countries.
7. Our customer testing the Air tightness for the gas tank container by themselves
