| External Dimensions(l X W X H)(mm): | 6058* 2438* 2591 | Internal Dimensions(l X W X H)(mm): | 5898* 2352* 2393 |
|---|---|---|---|
| Operating Temperature: | -40 To 50℃ | Capacity: | 24500L |
| Stacking Mass(kg): | 192000 | MOQ: | 1 Unit |
| Weight: | 8000KG | Core Components: | PLC, Pressure Vessel, Pump |
| High Light: | 20 Ft ISO Tank Container IMDG,BPVC 20 Ft ISO Tank Container,IMDG Cryogenic ISO Container |
||

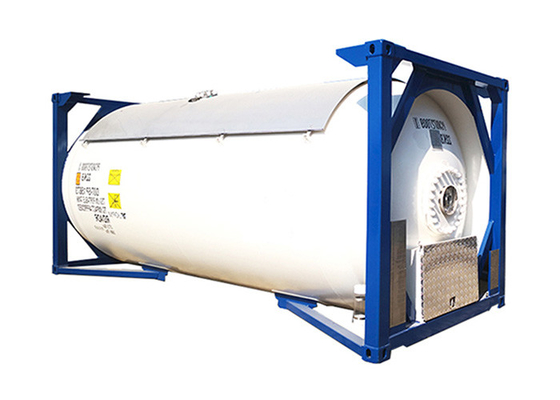

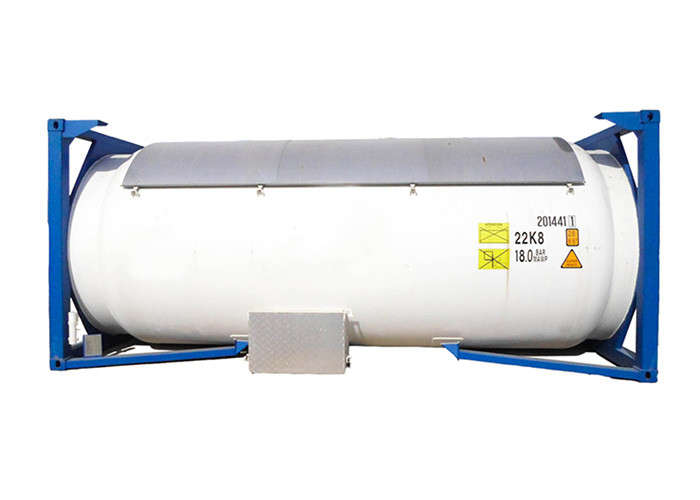

Type: ASME standard T50 20-foot LPG ISO tank container
Design temperature: -40 degrees Celsius to +55 degrees Celsius
Certificate: csc certificate, such as BV / LR
Logo:Customer's Logo
Standard:ASME
Key Selling Points:Long Service Life
After Warranty Service:Video technical support, Online support
Applicable Industries:Food Shop, Energy & Mining, liquid storage tank
Marketing Type:New Product
| Items | Parameter | ||
| UN tank instruction | T50 | ||
| Design pressure(MPa) | 2.2 | ||
| working Pressure (MPa) | 2.2 | ||
| Design external P (MPa) | -0.1 | ||
| Leak test pressure (MPa) | 2.2 | ||
| Hydrostatic test pressure (MPa) | 2.93 | ||
| Vessel size(O.D.XL)(mm) | 2425×5913 | ||
| Overall size (L× w× H)(mm) | 6058×2438×2591 | ||
| Max gross(kg) | 34000 | ||
| M.P.L.M of R22 | 25235 | ||
| use enviorment temperature(℃) | -40/55 | ||
| Design temperature(℃) | -40/55 | ||
| Joint efficiency | 1 | ||
| Tank Materials | Q345R-GB/T713-2014 | ||
| Volume(m³) | 24.5 | ||
| Stacking mass(kg) | 192000 | ||
| Executive standard of extemal sizes | GB/T 1413-2008 | ||
| Executive standard of comer fittings | GB/T 1835-2006 | ||
| Executive standard of marking | GB/T 1836-1997 | ||
| Pressure gauge | Dial Diameter (mm) | ≥100 | |
| Accuracy grade | 1.6 | ||
| Range instruction (MPa) | 0~4.0 | ||
T50 ISO Tank Container Of Product details:
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products( OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
Q: Are the LPG tank containers you sell brand new?
A: Yes, all the containers we provide are brand new. In fact, we will produce new containers after the order is confirmed.
Q: Can you provide drawings for confirmation?
A: Yes, we will provide drawings after confirming the order before production
Q: Do you have a small-capacity or a large-capacity tank container?
A: Of course, we can make Tank Containers from 1000L to 60000L.
Q: Do you provide OEM service?
A: Yes, we have a first-class team that can design according to your requirements.
