Product Details:
Payment & Shipping Terms:
|
| Size: | 6850-12500*2500*1550mm | Type: | Semi-Trailer |
|---|---|---|---|
| Max Payload: | 60T For Flatbed Trailer | Material: | Steel |
| Suspension: | Mechanical/Air Bag/Bogie | Loading Capacity: | 50-60Ton |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Tire: | 12.00R22.5 |
| High Light: | Flatbed Container Trailer 6m,CE Flatbed Container Trailer,6m 18 Wheeler Flatbed Trailer |
||
3 Axles 20ft Shipping Container Transport Brand New Flatbed Truck Trailer Container Semi Trailer
Flatbed Truck Trailer Of Product description:
This flatbed semi trailer with headboard, bolster and twistlocks has multi functions, which can transport not only containers, but also bulk cargos and timber.
1. Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc.
2. Light Weight - Light tare weight with strong loading capacity.
3. Perfect Welding - professional welding of main beam guarantee stability and durability.
4. Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.
Flatbed Truck Trailer Of Product parameters:
| STANDARD SPECIFICATION | ||||||||
| Chassis (Main Beam) | ☆Heavy duty and extra durability designed, Opting for high tensile stell Q345. ☆500mm height; Top flange 16*140mm; Middle flange 6 mm; Bottom flange 16*140mm, Side beam 18A, Floor Steel 3mm. ☆Capacity: 80T |
|||||||
| King pin | ☆2" standard welded style | |||||||
| Landing gear | ☆FUWA 19"heavy duty landing gear | |||||||
| Axle | ☆Four Units of American style FUHE/HJ/FUWA (brand) 13T 10 Hole Axle. | |||||||
| Suspension | ☆Four axle Mechanical suspension, Leaf spring 90*16mm 8 pcs. | |||||||
| Tyre ( Wheel Rim) | ☆17 units of 12R22.5 Tubeless Tyre, include one spare tyre. | |||||||
| ☆17 units of 9.0*22.5 Wheel rim | ||||||||
| Twist Lock | ☆12 nos of ISO twist lock for 2*20ft; 1*40ft container, the central locks can be laid down. | |||||||
| Brake | ☆ WABCO RE 6 relay valve; Six units of T30/30 Spring brake chamber; Two units of T30 Spring brake chamber. ☆Three units of reliable local brand 40L air tank. |
|||||||
| Electric | ☆International standard 24v circuit 7-pin ISO socket; Tail lamp with turn signal, brake light & reflector, side lamp etc. One set 6-core standard Cable. | |||||||
| Painting | ☆Sand blasting processing clean rust ☆1 coat of anticorrosive primer, 2 coats of finish urethane paint ☆color at customer's choose. |
|||||||
| Other | ☆One spare tyre holder; one box with a set of standard trailer tool. ☆Distant from King pin to the front part: 750-1200mm |
|||||||
| Packing | ☆Cut rear part of trailer about 700mm, load it in 40HQ contailer, fit it by screw in destination. ☆One contailer carry two units. |
|||||||

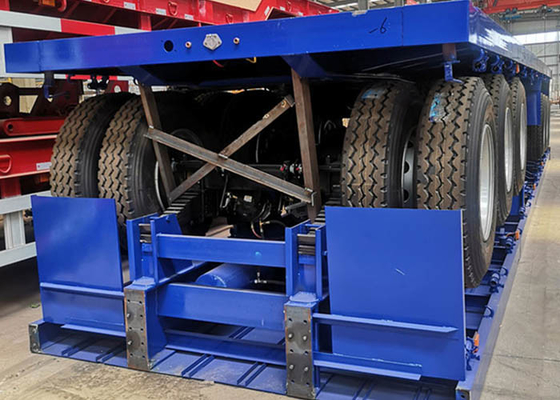

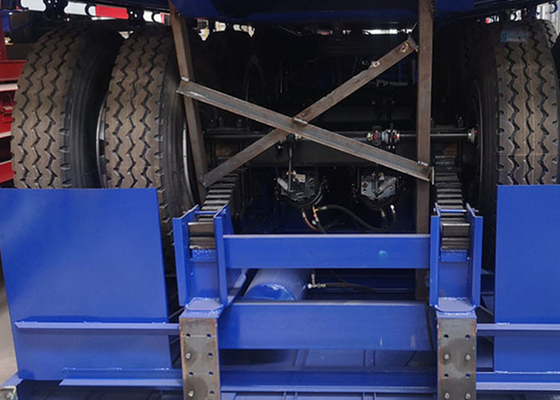

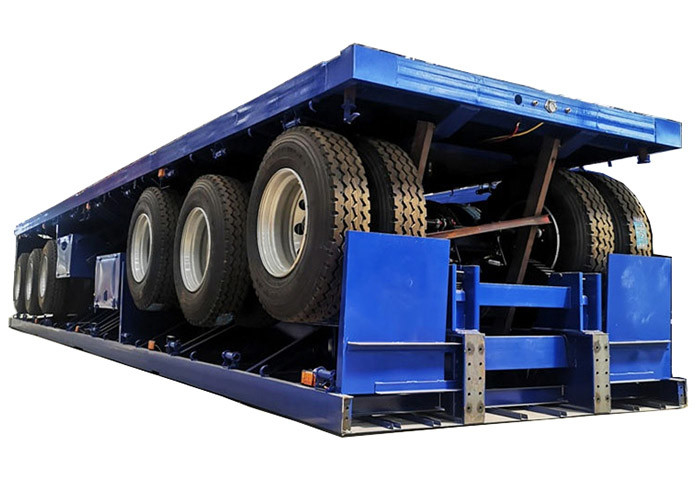

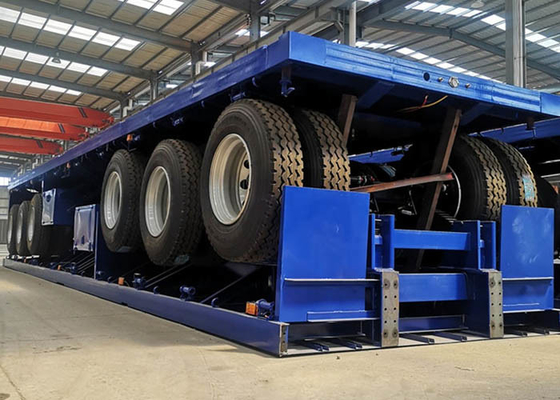

Flatbed Truck Trailer Of Product pictures:
1. Can it be customized to my needs?
Of course, the sales manager and technical staff will customize the car according to your needs, confirm the plan and details for you, and arrange production after you sign and confirm!
2. How long is the lead time?
Trailer production cycle is 7-25 days, we will reasonably arrange the production time of the factory according to your urgency, and there are some stock available for you to choose.
3. How long is the warranty period?
We will provide spare parts for free within one year, and provide you with vehicle operation and maintenance skills, life-long vehicle consultation, and we promise that you will receive timely feedback and solutions for any suggestions on trailers.
4. What is the price of the trailer?
Different configurations and different prices, the sales manager will provide more cost-effective products according to your budget.
5. What payment methods are available?
You can choose T/T, L/T or other feasible payment methods
