| Length (feet): | 20FT | Max Working Pressure(MPa): | 2.2 MPa |
|---|---|---|---|
| Machinery Test Report: | Provided | Weight: | 8000KG |
| Capacity: | 24.5m3 | MOQ: | 1 Piece |
| Place Of Origin: | China | Condition: | New |
| High Light: | 24.5m3 LPG ISO Tank Container,LPG ISO Tank Container 20 Feet,20 Feet Cryogenic ISO Tank Containers |
||
| DESIGN CODES AND REGULATONS | T50 UN PORTABLE TANK (MDC, 49 CFR, RID/ADR); IS0 1496-3,TIR, UIC, CSC, TC, FRA. | DESIGN REFERENCE TEMPERATURE | |
| USDOT | 46.1℃ | ||
| IMDG/RID/ADR | 55℃ | ||
| PRESSURE VESSEL CODE | |||
| USDOT | ASME BPVC.VIII.2.Class 1- 2017Ed+CASE 2624 U2- stcmp, USDOT-SP15873 | IMDG /RID/ADR | ASME BPV.III.2.Class 2- 2C17Ed |
| MAWP | |||
| USDOT | 1.64/-0.103 MPa AT 55℃ | IMDG /RID/ADR | 1.8/-0.103 MPa AT 55℃ |
| DESIGN TEMPERATURE | -40℃/+55℃ | M.D.M.T | -40℃ |
| HYDROSTATIC TEST PRESSURE | 2.41 MPa AT 4~48℃ | NOMINAL THICKNESS OF SHELL | 12.5 mm |
| CORROSION ALLOWANCE | 1mm | P.R.V SETTING | 1.8 MPa |
| THICKNESS OF HEAD | 12.5(min11.2)mm | HEAT TREATMENT | Postweld heat treatment |
| JOINT EFFICENCY(SHELL/HEAD) | 1.0/1.0 | LEAKAGE TEST | 0.6 MPa |
| CONTENTS | LPG (UN1075),etc. | DESIGN SPECIFIC GRAVITY | 0.42 kg/L (LPG) |
| TOTAL VOLUME(NOMINAL±1%) | 24800L | M.P.G.M. | 34000 kg |
| ALLOWANCE STACKING MASS | 192000 kg | ||
| MATERIAL OF CONSTRUCTION | |||
| CYLINDER/HEAD | SA-612M Normalized | FLANGES/WELD-IN FORGINGS | SA-350M LF2 Cl.1 Normalized |
| MATERIAL PRODUCTION IMPACT TESTINC | NOT REQUIRED EXCEPT FORGING-PER 3.11 | SUNSHIEID | ALUMINIUM |
| GASKET | Wound gasket | ||
| MANWAY (PRESSURE)STUD/NUT | SA-193 B7/SA-194 2H | FRAME-PLATE/HOLLOW SECTIONS | Q345D(GB/T 1591-2008) |
| PAINT SPECIFICATION | |||
| SURFACE TREATMENT | SHOT BLASTED TO SA 2.5 | COLOUR | White: RAL9010, or by user |
| THICKNESS | t≥120μm, or by user | CUSTOMIZATION | Accept (customizable logo) |
| LIST OF NOZZLE | |||
| MANHOLE | DN500 | THERMCMETER | M27X2 |
| SAFETY VALVE | DN80 | PIEZOMETER | NPT 1/2" |
| GAS PHASE | DN50 (blind with 1.75"ACME) | LIQUID PHASE | DN50 (blind with 3.25"ACME) |

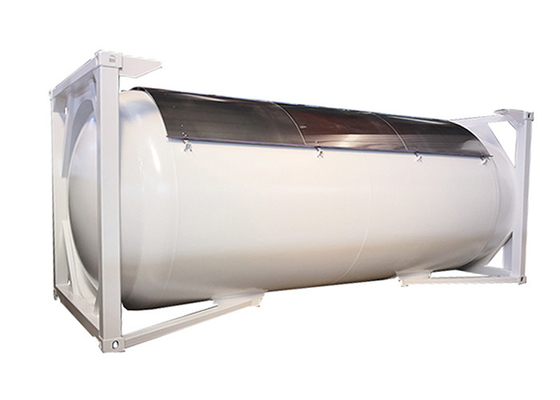

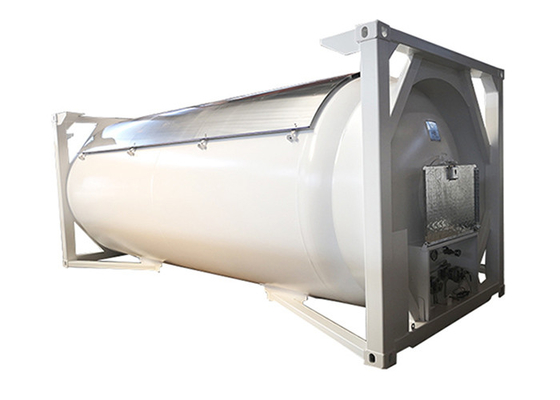

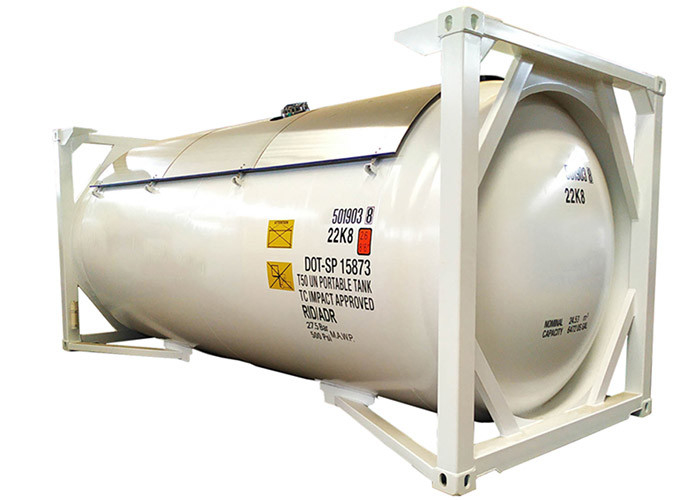

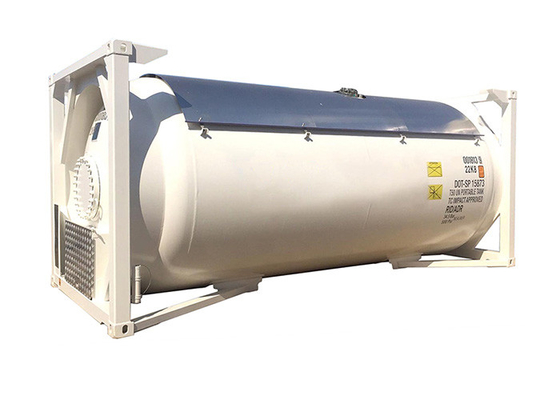

T50 ISO Tank Container Of Advantage of tank container:
ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most of the tanks are made of 316 stainless steel and equipped with steam or electric heating device, inert gas protection device, pressure relief device and other optional equipment for fluid transportation and handling.
