Product Details:
Payment & Shipping Terms:
|
| Size: | 6850-12500*2500*1550mm | Type: | Semi-Trailer |
|---|---|---|---|
| Max Payload: | 60T For Flatbed Trailer | Material: | Steel |
| Suspension: | Mechanical/Air Bag/Bogie | Loading Capacity: | 50-60Ton |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Tire: | 12.00R22.5 |
| High Light: | BPW 3 Axle Flatbed Semi Trailer,3 Axle Flatbed Semi Trailer 16000mm,16000mm 20 Foot Flatbed Trailer |
||
3 Axles 20ft Shipping Container Transport Brand New Flatbed Truck Trailer Container Semi Trailer
Product description:
This flatbed semi trailer with headboard, bolster and twistlocks has multi functions, which can transport not only containers, but also bulk cargos and timber.
1. Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc.
2. Light Weight - Light tare weight with strong loading capacity.
3. Perfect Welding - professional welding of main beam guarantee stability and durability.
4. Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.
Product parameters:
| Items | Flatbed semi trailer | Flatbed semi trailer |
| Loading Capacity | 30-60 tons | 60-80 tons |
| Axle | 2/3 pieces, 13T FUWA/BPW/ZY axle | 4 pieces, 13T FUWA/BPW/ZY axle |
| Tyre | 12 pieces, 12R22.5 | 16 pieces, 12R22.5 |
| Dimensions(LxWxH) | 12500 to 16000mm x 3000 x 1550mm | |
| Tare weight | 6 tons to 9 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345 | |
| Chassis | upper 12mm, lower 14mm. Mid web 10mm | |
| Container Twist Locks | 12 nos, THT | |
| Kingpin | 2’ or 3.5’ interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |

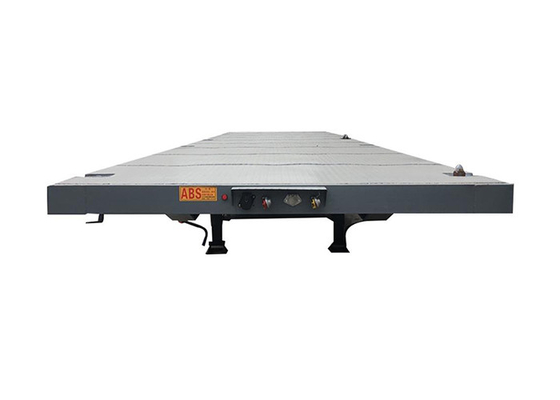

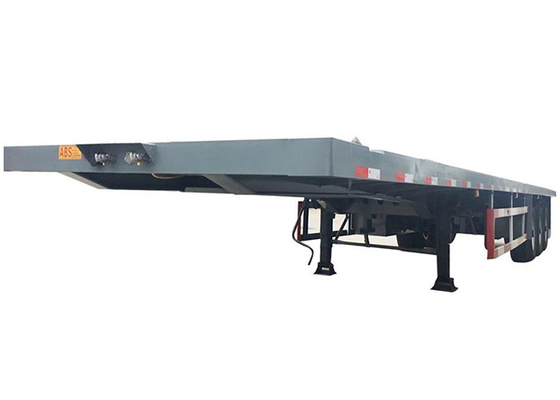

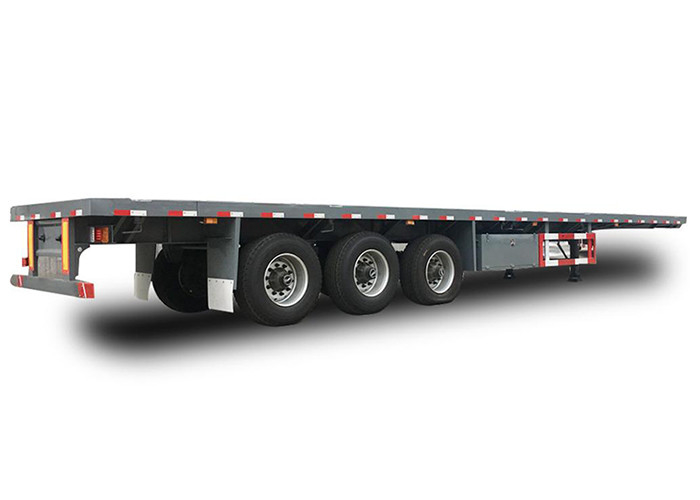

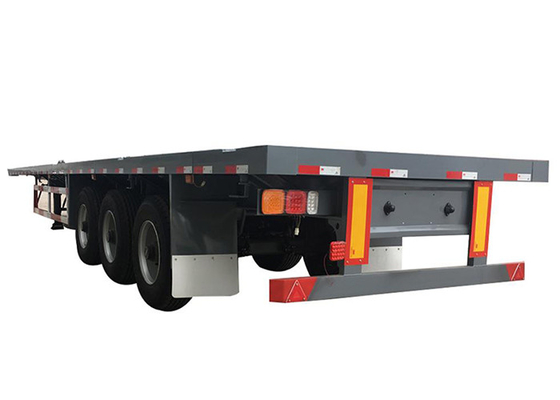

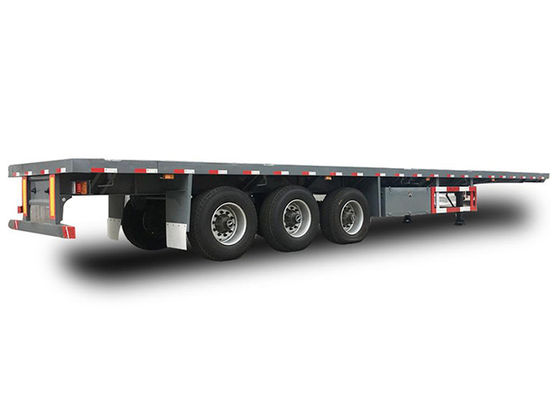

Product pictures:
Transport Pictures:
1. Can it be customized to my needs?
Of course, the sales manager and technical staff will customize the car according to your needs, confirm the plan and details for you, and arrange production after you sign and confirm!
2. How long is the lead time?
Trailer production cycle is 7-25 days, we will reasonably arrange the production time of the factory according to your urgency, and there are some stock available for you to choose.
3. How long is the warranty period?
We will provide spare parts for free within one year, and provide you with vehicle operation and maintenance skills, life-long vehicle consultation, and we promise that you will receive timely feedback and solutions for any suggestions on trailers.
4. What is the price of the trailer?
Different configurations and different prices, the sales manager will provide more cost-effective products according to your budget.
5. What payment methods are available?
You can choose T/T, L/T or other feasible payment methods
