| DESIGN TEMPERATURE(℃): | 55 | OPERATING TEMPERATURE(℃): | -40~50 |
|---|---|---|---|
| MDMT(℃): | -40 | NOMINAL VOLUME(L): | 24500L |
| MAX.GROSS MASS(KG): | 35000 | TARE MASS(KG): | 6800 |
| MAX.PAYLOAD(KG): | 22568 | EXTERNAL DEMENSIONS(L/W/H): | 6058/2438/2591 |
| Working Pressure: | 22.8bar | Test Pressure: | 28.6bar |
| High Light: | 24500L Liquid Oxygen Iso Container,Liquid Oxygen Iso Container CSC,CSC 40ft Tank Container |
||
Chinese Manufacturer T50 Propane LPG ISO 20ft 40ft Tank Container for Sale
Product Description
We are LPG station overall solution provider!
We can provide you with a full set of equipment of LPG storage and filling station. such as
ISO tank container,5~200m3 LPG storage tank, LPG pump, LPG compressor, LPG filling
scale, Liquid level meter and other LPG accessories.
LPG storage tank:5m3 LPG storage tank, 10m3 LPG storage tank, 15m3 LPG storage
tank, 20m3 LPG storage tank, 25m3 LPG storage tank, 30m3 bulk LPG storage tank,
35m3 bulk LPG storage tank, 40m3 bulk LPG storage tank, 50m3 bulk LPG storage tank,
60m3 bulk LPG storage tank, 80m3 bulk LPG storage tank, 100m3 bulk LPG storage tank,
120m3 bulk LPG storage tank, 150m3 bulk LPG storage tank, 200m3 bulk LPG storage tank
A Professional Manufacturer for LPG Gas Station Over 40 years & LPG Station
Overall Solution Provider.

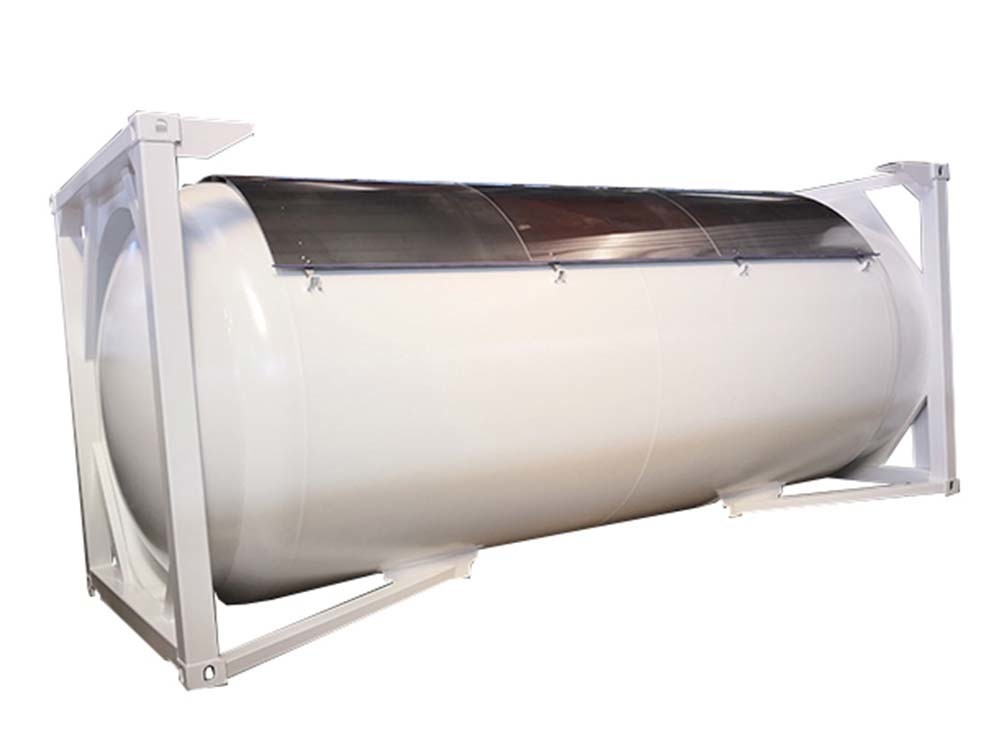

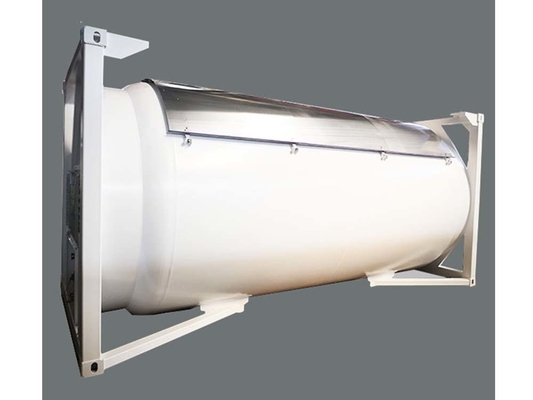

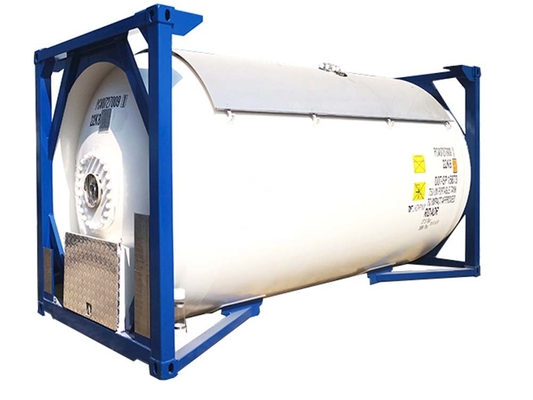

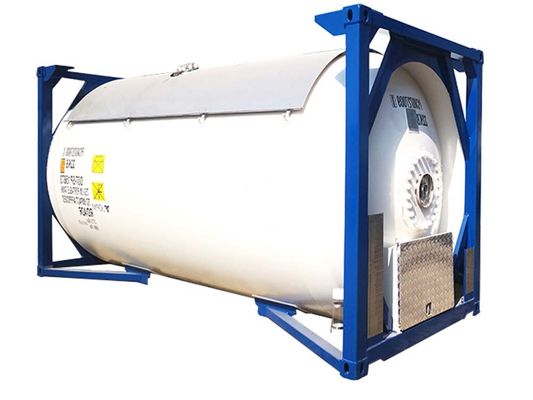

ASME Standard T50 20ft LPG ISO Tank Container
Type: T50
Material: Stainless Steel
Standard: IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Type: Vertically Mounted & Horizontal Mounted
Design Temmperature:-40 degree celsius to +55 degree celsius
Certificate: csc certificate like GL/LR/BV/ABS
M.G.W: 30480 kgs
loading Medium: liquid chlorine
parameter:
| Description and Specification of Commodity | ||||
| Loading Capacity | 22tons | |||
| Overall Size | 6058*2438*2591/mm | |||
| Compartment | single | |||
| Painting | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2 coats of final paint | |||
| Design data sheet | ||||
| Code and Regulations |
ASME BOILER AND PRESSURE VESSEL CODE,SECT.VIlI.DIV.2 WITH U2-STAM RID/ADR,IMDG |
|||
| DESIGN PRESSURE(MPa) | 1.52 | PRESSURE-RETAINING | Shell | SA-612M NORMALIZED |
| MAWP,acc IMDG(MPa) | 1.38 | PARTS | Heads | SA-612M NORMALIZED |
| MEAWP(MPa) | 0.1 | EXTERNAL DEMENSIONS(L/W/H) | 6058/2438/2591 | |
| DESIGN TEMPERATURE(℃) | 55 | INSULATION OR SUN SHIELD | SUN SHIELD | |
| OPERATING TEMPERATURE(℃) | -40~50 | Paint | Frame | 30um+40um+50um |
| MDMT(℃) | -40 | Shell | 30um+40um+50um | |
| NOMINAL VOLUME(L) | 24500 | MAX.GROSS MASS(KG) | 35000 | |
| FILLING MEDIUM | 1,1,1,2-Tetrafluoroethane | TARE MASS(KG) | 6800 | |
| MEDIUM UN NUMBER | UN3159 | MAX.FILLING DENSITY (t/m3 | 1.04 | |
| TANK INSTRUCTION | T50 | MAX.PAYLOAD(KG) | 22568 | |
| CORROSION ALLOWANCE(mm) | 0 | JOINT EFFICIENCY(SHELL/HEAD) | 1 | |
| PWHT(YES/NO) | YES | TEST | HYDRO.TEST PRESSURE(MPa) | 2.18 |
| U2 STAMP | YES | LEAKAGE TEST PRESSURE(MPa | 1.38 | |
| INSPECTION AUTHORITY | BV/TUV | N/A | N/A | |
product details:
Certificate:
Our factory:
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet
with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
Q: Are the LPG tank containers you sell brand new?
A: Yes, all the containers we provide are brand new. In fact, we will produce
new containers after the order is confirmed.
Q: Can you provide drawings for confirmation?
A: Yes, we will provide drawings after confirming the order before production
Q: Do you have a small-capacity or a large-capacity tank container?
A: Of course, we can make Tank Containers from 1000L to 60000L.
Q: Do you provide OEM service?
A: Yes, we have a first-class team that can design according to your requirements.
