40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed

40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed
40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed

Large Image :  40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed

Product Details:
Place of Origin: China
Brand Name: LISHIIXN
Certification: CCC ISO DOT
Model Number: LSXC20220401
Payment & Shipping Terms:
Minimum Order Quantity: 1/unit
Price: 11600USD
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 unit
Detailed Product Description
Material: Steel, Q345B Steel Max Payload: 50 Tons
Tire: 11.00r20 12r22.5 King Pin: 2.0 Inch (50mm)/3.5 Inch (90mm)
Size: 12500x2650x3850mm Axle: 3axles
Color: Yellow , Red , White , Green Or Customized
High Light:

40000kg 40ft Flatbed Trailer

,

40ft Flatbed Trailer 11.00r20

,

11.00r20 11.00r20 Triple Axle Flatbed Trailer

40T bulk cargo sidewall trailer side board flatbed trailer 3 axle semi trailer with side wall





The sidewall cargo semi trailer use to load a wide range of products and materials,

like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the

transportation industry. Suitable for the mid/long distance transportation of the

mid/heavy duty and bulk cargo. The high side cargo trailer can be added with

a container turn lock to transport the container.
What are the types of high side trailer?
2 axle sidewall trailer, 3 axle dropside trailer, 4 axle high side trailer, grain trailer

and the sidewall drawbar trailer. And load capacity has 30/40/60/80/100 tons

for your choice. Customizable side wall height.

parameter:





Side wall Semi Trailer-2 Axles
Side wall Semi Trailer-3 Axles
Side wall Semi Trailer-4 Axles
Loading Capacity: 30-60T

Loading Capacity: 30-80T
Loading Capacity: 40-100T
Goose Type: Optional
Goose Type: Optional
Goose Type: Optional
Main Beam Material:Q345/T700
Main Beam Material:Q345/T700
Main Beam Material:Q345/T700
Upper Plate Thickness:12mm
Upper Plate Thickness:16mm
Upper Plate Thickness:18mm
Middle Plate Thickness:6mm
Middle Plate Thickness:10mm
Middle Plate Thickness:12mm
Lower Plate Thickness:14mm
Lower Plate Thickness:18mm
Lower Plate Thickness:20mm
Main Beam Height:500mm
Main Beam Height:500mm
Main Beam Height:500mm
Product Size
Product Size
Product Size
L:13000mm*W:2550mm
L:13000mm*W:2550mm
L:13000mm*W:2550mm
Side Wall Height:600mm-1700mm
Side Wall Height:600mm-1700mm
Side Wall Height:600mm-1700mm
Axles
Axles
Axles
2 Axles *13 Ton VEHICLE
MASTER/FUWA/BPW/Other
3 Axles *13/16 Ton VEHICLE
FUWA/BPW/Other
4 Axles *13/16 Ton VEHICLE
FUWA/BPW/Other
Tire
Tire
Tire
12R22.5 (8 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (16 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
Rim
Rim
Rim
9.00*22.5 (8 Pieces) Steel/Aluminum
9.0*22.5 (12 Pieces) Steel/Aluminum
9.0*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring
Leaf Spring
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
Kin Pin
Kin Pin
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
Landing Gear
Landing Gear
28 Tons Two Speed,JOST/Other Brand
28 Tons Two Speed,JOST/Other Brand
28 Tons Two Speed,JOST/Other Brand
Vehicle Painting
Vehicle Painting
Vehicle Painting
Electrophoresis painting
Electrophoresis painting
Electrophoresis painting

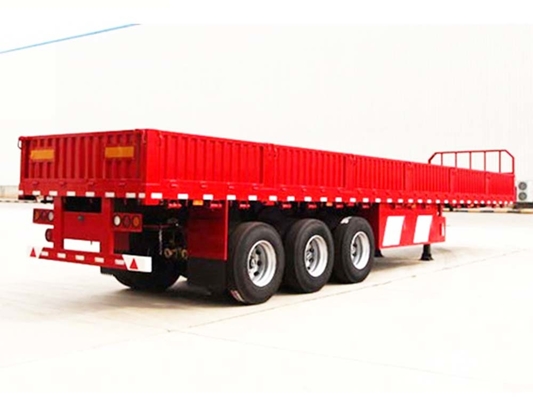

Product display:

40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 0

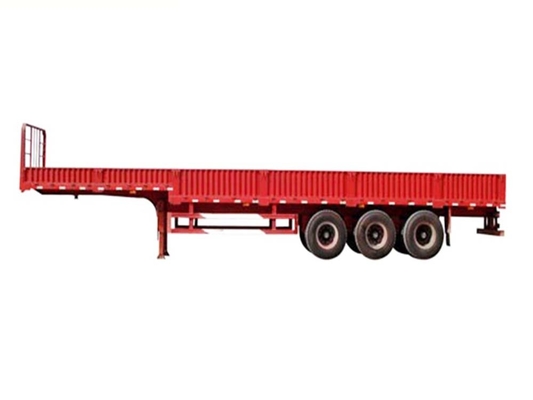

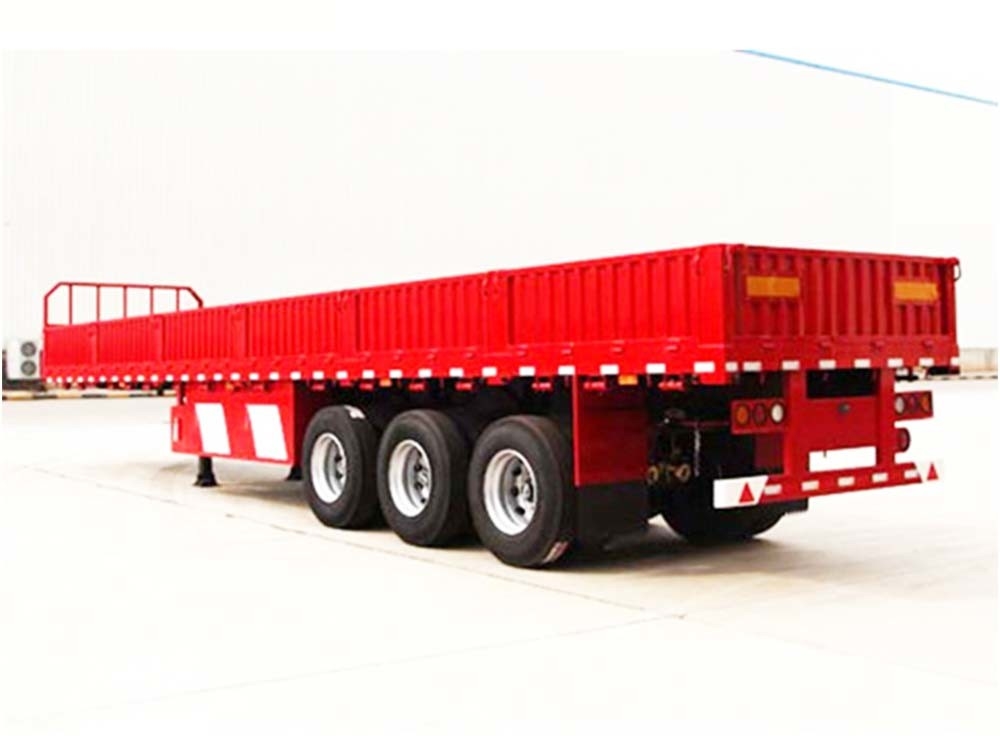

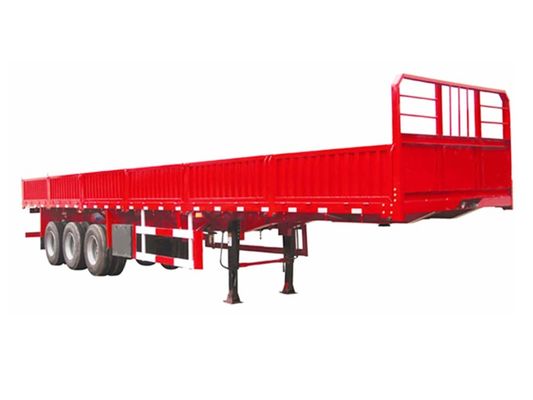

Product details display:



40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 1

Quality Control



1

For Each trailer, we must do the testing and inspect the quality,and we have more than 30

QC&QA people on the production process and the testing process and warehouse to

guarantee the quality of the every details.

2
Youwil get,the inspection certificate according to customer demand for every trailer

hich given by an independent third party certification company.

3
You will get the out-standing quality assurance.



certification:



40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 2

Packaging & Shipping:

How does pack and deliver sidewall semi trailers?
Many customers use container shipment, which has low transportation cost and short

transportation time. But the bad thing is that the rear of the side wall semi trailer needs

to be composed.
Some customers are bulk freighter or ro-ro ships. sideboards trailer will spray wax

and cover the tarpaulin when the side wall trailer use bulk freighter.

40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 3



40000kg 40ft Flatbed Trailer 11.00r20 Triple Axle Flatbed 4

FAQ:



  Q1.  What's your MOQ?
One unit trailer or truck.
  Q2.  Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
  Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials

with 100% quality assurance.Established a procedure to check products at all stages

of the manufacturing process,raw materials,process materials,validated or tested

materials finished goods ect.
  Q4.  How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our

personalized service person will respond you within 24 hours.
  Q5.  Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
  Q6:  What's the delivery time?
The delivery time is within 30-50 working days after receiving your advance payment.
  Q7: How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation

with ship agency which can provide you lowest shipping fee.
bulk or container.
Q8: Can you supply some quick-wear truck or semi trailer parts?
Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter,

air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging

accessories, turntable, all kinds of trailer brake pads, brake pan,
