Product Details:
Payment & Shipping Terms:
|
| Max Speed（km/h）: | 101 | Emission Standard: | Euro 2/3/4/5 |
|---|---|---|---|
| Drive Wheel: | 6X4 | Tire Number: | 10+1 |
| Curb Weight（kg）: | 8800 | Approaching Angle/Departure Angle（°）: | 15/46 |
| Front Axle: | HF9 | Rear Axle: | HC16 |
| High Light: | HF9 380Hp Truck Tractor Head,A7 Truck Tractor Head HF9,Black Howo A7 420 Tractor Head |
||

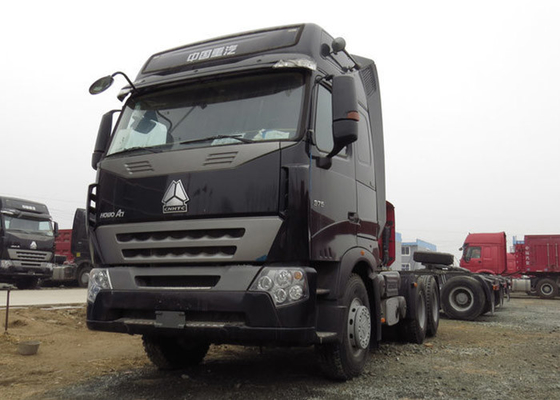

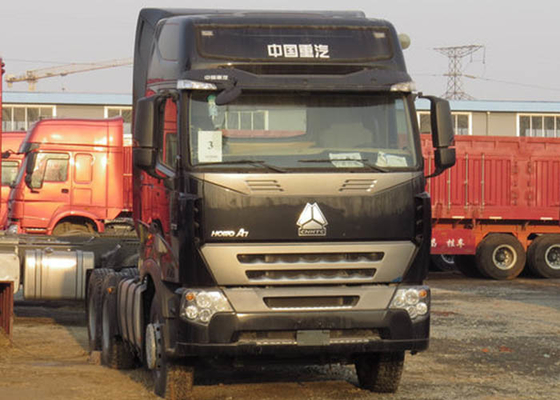

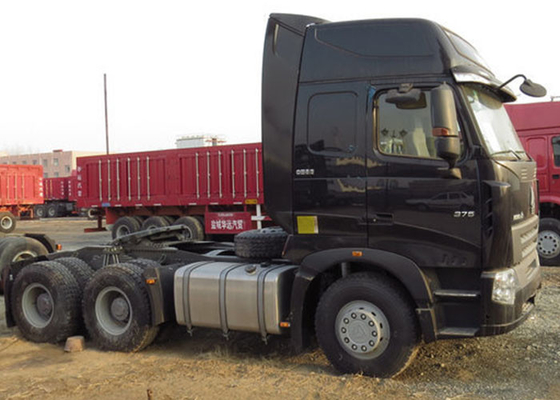

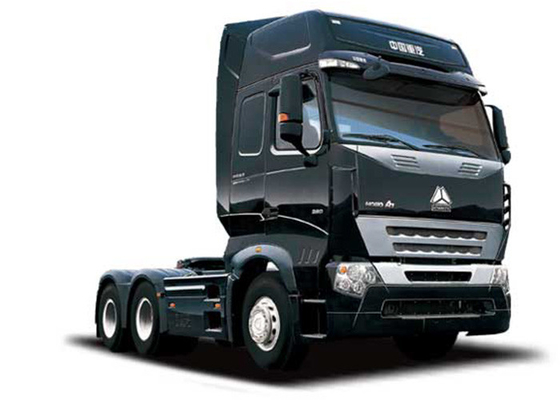

New Sinotruk HOWO A7 6x4 Truck Tractor Head 380 Hp 420 Hp 10 Wheels 30T
Truck Tractor Head Of Product description:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
This model is the proven product of SINOTRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded 16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Truck Tractor Head Of main technical parameters:
| Dimension(Lx W xH)(unloaded)(mm) | 6985×2496×3050 | ||
| Approaching angle/Departure angle(°) | 15/46 | ||
| Overhang(front/rear) (mm) | 1540/870 | ||
| Wheel base (mm) | 3200+1400 | ||
| Max speed(km/h) | 101 | ||
| Curb weight(kg) | 8800 | ||
| Engine(Steyr technology, made in China) | Model | D10.34 | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 340/ 380/ 420HP | ||
| Emission | EURO II/III/IV/V | ||
| Fuel tanker capacity | 400L | ||
| Transmission | Model | HWHW19710, 10 Forward, 2 reserves | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | Germany ZF | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 315/80R22.5 Tubeless tire/12.00R20 Radial Tire | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | A7-G Deluxe cab, two sleepers. Air-conditioner, all-steel forward control, 55º hydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
Truck Tractor Head Of Our Service:
1. We advocate "Quality first, service first, persistent improvement and innovation to meet the clients" as Enterprise Value and " Hundred-precent satisfy clients, zero complaint" as Enterprise Motto.
2. Our employees have rich working experience in African countries more than 10 years, especially in Ghana, Nigeria, Cameroon, Angola, Tanzania and Ethiopia. We know African customers requires much better than other companies. More prompt reaction and better after-sale service are our core competitiveness that leads us go further.
3. We has won praise from African clients and also gained great reputation as a trustworthy partner during the cooperative process.
4. Sincery pursue to combine his own achievement together with clients' benefits to gain double win, so if you are interested, please contact us without hesitation for more information. All inquiries from you are always welcome, we will sincerely reply you as soon as possible.
