Product Details:
Payment & Shipping Terms:
|
| DESIGN TEMPERATURE(℃): | 55 | OPERATING TEMPERATURE(℃): | -40~50 |
|---|---|---|---|
| MDMT(℃): | -40 | NOMINAL VOLUME(L): | 24500L |
| MAX.GROSS MASS(KG): | 35000 | TARE MASS(KG): | 6800 |
| EXTERNAL DEMENSIONS(L/W/H): | 6058/2438/2591 | Working Pressure: | 22.8bar |
| Test Pressure: | 28.6bar | Tank Material: | 316L/SAN50028-7/WNr 1.4402/1.4404 |
| High Light: | 150m3 T50 ISO Tank Container,24500L T50 ISO Tank Container,150m3 T50 ISO Liquid Transport Containers |
||
Compressed Liquefied Gas LPG Propane Chlorine 40ft ISO Tank Container
Product Description
We are LPG station overall solution provider!
We can provide you with a full set of equipment of LPG storage and filling station. such as
ISO tank container,5~200m3 LPG storage tank, LPG pump, LPG compressor, LPG filling
scale, Liquid level meter and other LPG accessories.
LPG storage tank:5m3 LPG storage tank, 10m3 LPG storage tank, 15m3 LPG storage
tank, 20m3 LPG storage tank, 25m3 LPG storage tank, 30m3 bulk LPG storage tank,
35m3 bulk LPG storage tank, 40m3 bulk LPG storage tank, 50m3 bulk LPG storage tank,
60m3 bulk LPG storage tank, 80m3 bulk LPG storage tank, 100m3 bulk LPG storage tank,
120m3 bulk LPG storage tank, 150m3 bulk LPG storage tank, 200m3 bulk LPG storage tank
A Professional Manufacturer for LPG Gas Station Over 40 years & LPG Station
Overall Solution Provider.
ASME Standard 20ft ISO TANK CONTAINER
*SIZE:
20ft/30ft/40ft ISO Tank Container
*Type:
1.Cryogenic ISO tank for liquid oxygen,nitrogen, argon,LNG,ethylene,LCO2,N2O;
Working Pressure -196℃~+50℃
2.ISO tank for chlorine, ammonia, LPG,
3.ISO Tank container for freezing medium as R134a, R22, R32 etc.
4.Off-shore tanks for oil project
*Authorization license:
1.ASME U and U2 Stamps, GB150, EN Standard
2.China Classification Society(CCS)
3.Bureau Veritas (BV)
4.Lloyd’s Register (LR)

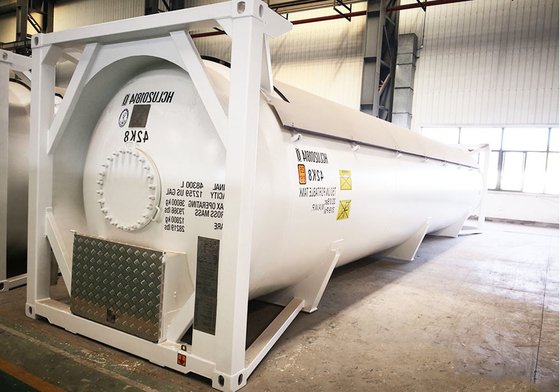

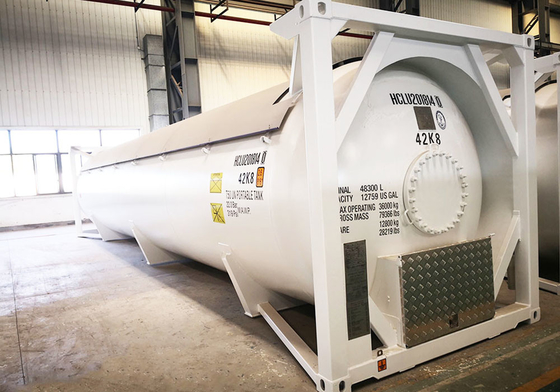

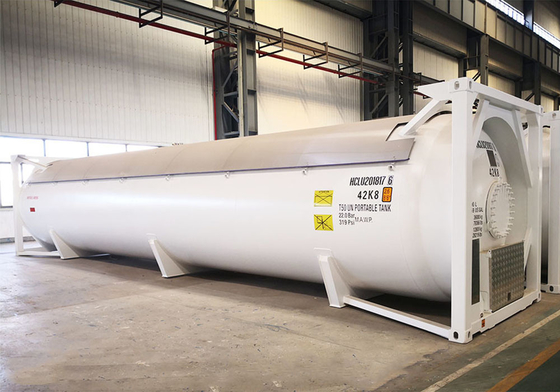

Pictures show:
Product details:
parameter:
| Description and Specification of Commodity | ||||
| Loading Capacity | 22tons | |||
| Overall Size | 6058*2438*2591/mm | |||
| Compartment | single | |||
| Painting | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2 coats of final paint | |||
| Design data sheet | ||||
| Code and Regulations |
ASME BOILER AND PRESSURE VESSEL CODE,SECT.VIlI.DIV.2 WITH U2-STAM RID/ADR,IMDG |
|||
| DESIGN PRESSURE(MPa) | 1.52 | PRESSURE-RETAINING | Shell | SA-612M NORMALIZED |
| MAWP,acc IMDG(MPa) | 1.38 | PARTS | Heads | SA-612M NORMALIZED |
| MEAWP(MPa) | 0.1 | EXTERNAL DEMENSIONS(L/W/H) | 6058/2438/2591 | |
| DESIGN TEMPERATURE(℃) | 55 | INSULATION OR SUN SHIELD | SUN SHIELD | |
| OPERATING TEMPERATURE(℃) | -40~50 | Paint | Frame | 30um+40um+50um |
| MDMT(℃) | -40 | Shell | 30um+40um+50um | |
| NOMINAL VOLUME(L) | 24500 | MAX.GROSS MASS(KG) | 35000 | |
| FILLING MEDIUM | 1,1,1,2-Tetrafluoroethane | TARE MASS(KG) | 6800 | |
| MEDIUM UN NUMBER | UN3159 | MAX.FILLING DENSITY (t/m3 | 1.04 | |
| TANK INSTRUCTION | T50 | MAX.PAYLOAD(KG) | 22568 | |
| CORROSION ALLOWANCE(mm) | 0 | JOINT EFFICIENCY(SHELL/HEAD) | 1 | |
| PWHT(YES/NO) | YES | TEST | HYDRO.TEST PRESSURE(MPa) | 2.18 |
| U2 STAMP | YES | LEAKAGE TEST PRESSURE(MPa | 1.38 | |
| INSPECTION AUTHORITY | BV/TUV | N/A | N/A | |
product details:
Certificate:

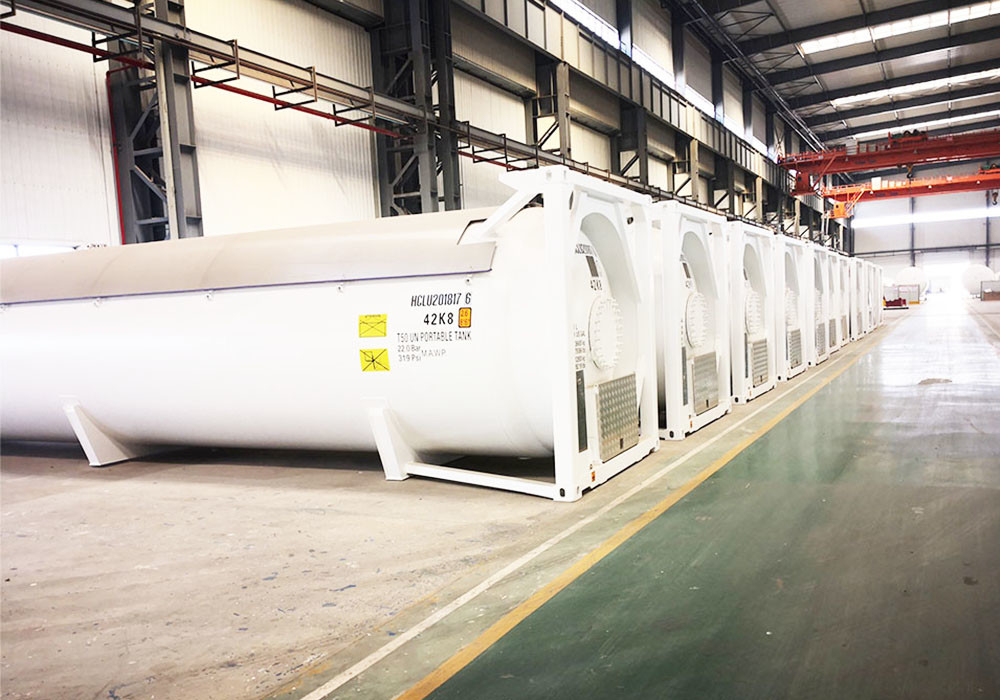

Our factory:
FAQ:
1. who are we?
We are based in henan, China, start from 2017,sell to Southeast Asia(35.00%),Mid East(20.00%),South
Asia(20.00%),Africa(15.00%),Domestic Market(10.00%). There are total about 101-200 people in our office.
2. Are your container fuel tank brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
3. Does your container fuel tank meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
4. Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
5. Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per
DNV2.7-1 / EN12079 Standard.
6. Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
