Product Details:
Payment & Shipping Terms:
|
| Length (feet): | 20 Feet | Internal Dimensions(l X W X H)(mm): | 5898.2352.2393/mm |
|---|---|---|---|
| Operating Temperature: | -40 To 50℃ | Warranty: | 1 Year |
| Tare: | 3510KG | MOQ: | 1 Unit |
| Hydro.Test Pressure: | 2.18 | Design Pressure: | 2.2Mpa |
| High Light: | 20 Feet Lpg Propane Isotainer Tank LR,T50 Isotainer Tank 22 Tons,22 Tons ISO Propane Gas Container |
||
|

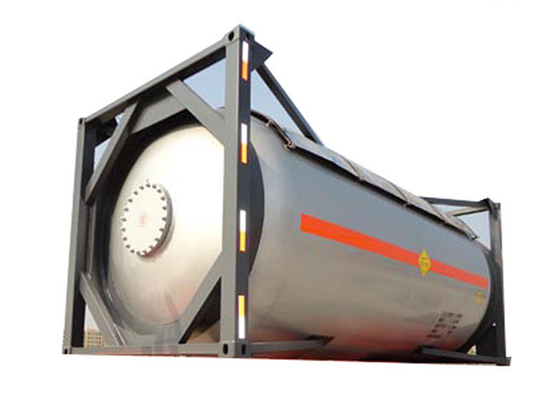

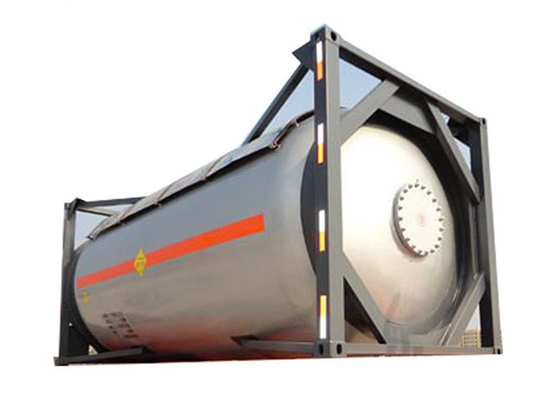

T50 ISO Tank Container Of Product description:
The stainless steel storage tanks above ground suitable for field as edible oil, juice, beverage, medicine chemical or bio-engineering project,etc.
|
We manufacture tanks for the petroleum, chemical, and water storage . Our product includes carbon steel, stainless steel, and fiberglass storage oil tanks. We offer a complete range of above ground oil tanks including: gasoline and diesel tank systems, potable water tanks, and a variety of customize oil storage tanks for your specific requirement.
| Description and Specification of Commodity | ||||
| Loading Capacity | 22tons | |||
| Overall Size | 6058*2438*2591/mm | |||
| Compartment | single | |||
| Painting | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2 coats of final paint | |||
| Design data sheet | ||||
| Code and Regulations |
ASME BOILER AND PRESSURE VESSEL CODE,SECT.VIlI.DIV.2 WITH U2-STAM RID/ADR,IMDG |
|||
| DESIGN PRESSURE(MPa) | 1.52 | PRESSURE-RETAINING | Shell | SA-612M NORMALIZED |
| MAWP,acc IMDG(MPa) | |1.38 | PARTS | Heads | SA-612M NORMALIZED |
| MEAWP(MPa) | 0.1 | EXTERNAL DEMENSIONS(L/W/H) | 6058/2438/2591 | |
| DESIGN TEMPERATURE(℃) | 55 | INSULATION OR SUN SHIELD | SUN SHIELD | |
| OPERATING TEMPERATURE(℃) | -40~50 | Paint | Frame | 30um+40um+50um |
| MDMT(℃) | -40 | Shell | 30um+40um+50um | |
| NOMINAL VOLUME(L) | 25000 | MAX.GROSS MASS(KG) | 350004 | |
| FILLING MEDIUM | 1,1,1,2-Tetrafluoroethane | TARE MASS(KG) | 6800 | |
| MEDIUM UN NUMBER | UN3159 | MAX.FILLING DENSITY (t/m3 | 1.04 | |
| TANK INSTRUCTION | T50 | MAX.PAYLOAD(KG) | 22568 | |
| CORROSION ALLOWANCE(mm) | 0 | JOINT EFFICIENCY(SHELL/HEAD) | 1 | |
| PWHT(YES/NO) | YES | TEST | HYDRO.TEST PRESSURE(MPa) | 2.18 |
| U2 STAMP | YES | LEAKAGE TEST PRESSURE(MPa | 1.38 | |
| INSPECTION AUTHORITY | BV/TUV | N/A | N/A | |
T50 ISO Tank Container Of Product details:
FAQ:
1. What' s your price?
Our price is very competitive among the similar products,and our series liquid storage vessels are proved by CE+ SGS+ UL+ ISO. There is no doubt about the security.
2. How long is your warranty?
Our liquid storage products are 15 years quality assurance,you can rest assured to buy.
3. What about your MOQ( minimun order quantity)?
Our MOQ is only1. We welcome friends from all over the world to be our customers.
4. Are you a factory or a trade company?
We own the factory and R& D in Henan Province.
