Product Details:
Payment & Shipping Terms:
|
| Size: | 12500*2500*1550mm | Function: | Transport 20ft 40ft Container |
|---|---|---|---|
| King Pin: | 90#/50# | Tire: | 12R22.5 |
| Axle: | 13 Ton Fuwa Brand | Curb Quality: | 67 Tons |
| Bottom Plate: | Q235 | Trailer Axle: | BPW / FUWA |
| Condition: | Brand-new/ Customerization Available | Max Payload: | 90T |
| High Light: | FUWA Flatbed Truck Trailer,Flatbed Truck Trailer 2500mm,2500mm 4 Axle Flatbed Trailer |
||
3 Axis Flat Semi Trailer LISHIXIN Brand New 3 Axis Flat Bed Flatbed 40ft Container Chassis Semi Trailer
New 3 Axle Container 40Ft Flat Bed Flatbed Semi Trailer
We have more than 17 years of export experience in professional customized semi trailers,Flatbed trailer and flatbed container trailers.
If you have any needs, please send us an inquiry to get in touch with us, and we will have professional staff to serve you.
Our main product:
Trailer:Bulk Cement Tank Trailer, Low Bed Trailer, Extendable Trailer, Tanker Trailer, Container Semi-Trailer, Box/Cargo/Fence
Trailer, Dump Trailer...
Truck(used and new):dump truck,tractor truck,cargo truck,fuel tank truck,mixer truck,truck crane,water tank truck...
parameter:
| product name | 40-foot flat container transport truck | ||
| Transport medium | Bulk cargo | ||
| Dimensions | 12500*2500*1560mm | ||
| Self-respect | About 7 tons | ||
| Warranty/Certificate | 12 months | ||
| Production cycle | 15 days | ||
| Curb quality | 67 tons | ||
| Load | 60 tons | ||
| Specification | |||
| Dimensions | 12500*2500*1560mm | ||
| Tow pin height | 1300mm | ||
| Wheelbase | 1310mm | ||
| Wheel base | 1840mm | ||
| Frame body configuration | |||
| Item | Material | Specification | |
| Beam | Q345 | "The height is 500mm, the upper wing plate is 14mm, the lower wing plate is 16mm, and the vertical plate is 8mm; " |
|
| beam | Q345 channel steel | 100mm channel steel | |
| Edge beam | Q345 channel steel | 160mm channel steel | |
| Bottom plate | Q235 | 3mm | |
| Accessories | |||
| Suspension | 3-axis heavy machinery suspension | Leaf spring | 6 racks-90*13*10 |
| Axle specifications/brand | 13T/Fuhua | Number of axles | 3 pieces |
| Tire specification/brand | 12R22.5 | Number of tires | 12 Article |
| Steel ring specification/brand | 9.0-22.5 | Number of steel rims | 12 |
| Outrigger specifications/brand | 28T/Yahua | Traction pin specifications | 50# or 90# interchangeable |
| Brake system | |||
| Brake valve brand | WABCO | Brake chamber specifications/quantity | T30/30-6 only |
| Brake system | Emergency brake system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air storage tanks | ||
| Electrical circuit system | |||
| Circuit socket | 7-hole socket | Voltage | 24V |
| Lamps | LED lights | Two rear tail lights (including two steering lights, two brake lights, two constant lights), 8 side lights, and two rear triangle reflectors; | |
| Appendix | |||
| 1 tool box | tool:Axle wrench, rocker | ||
| 1 spare tire rack | Water tank | ||
| Lock hands | 8 | ||
Features:
1. Multi functional design,ISO containers,timbers,bulk cargo,bagged cement or grain,animals
transportation
2. Side wall removable,one driver can easily handle it
3. Main beam warranty 2 years
4. World wide semi trailer parts brand like BPW,WABCO,JOST,brand
Why Choose Us
1. LISHIXINTrailer Based on the customer's country roads situation, transport goods and loading
weight requirment,provide semi-trailer solution.
2.LISHIXINhave Experienced sales and engineer support every requirment.
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of semi-trailer with discount price.
5. LISHIIXN have BV SGS CCC ISO WMI Certificate of conformity for the semi-trailer.
6. English operation Manual.
7. LISHIXIN offer free spare parts for every customer, like speeders,spanner etc.

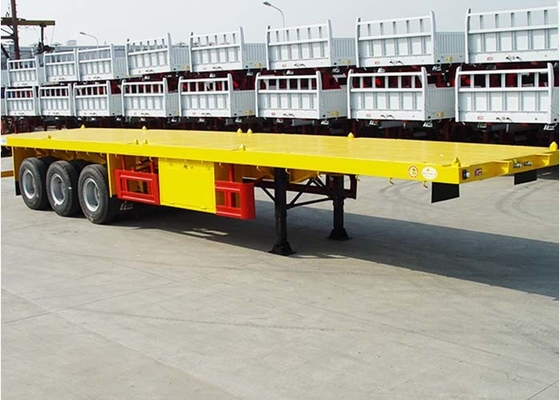

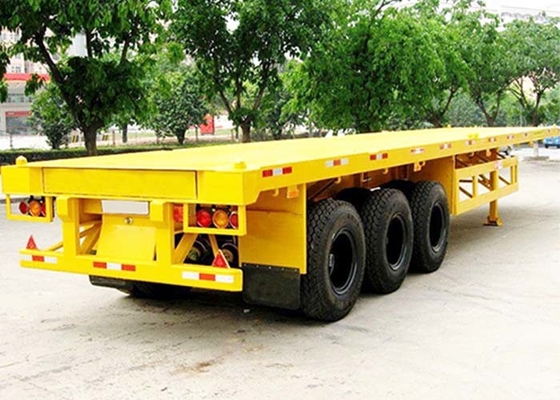

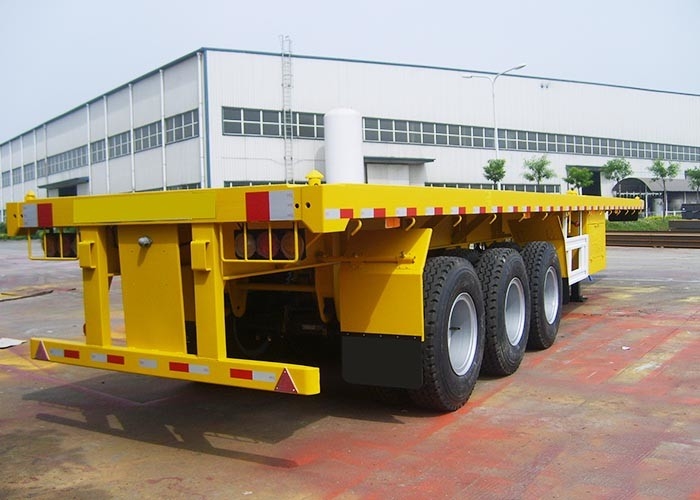

Product display:
details:

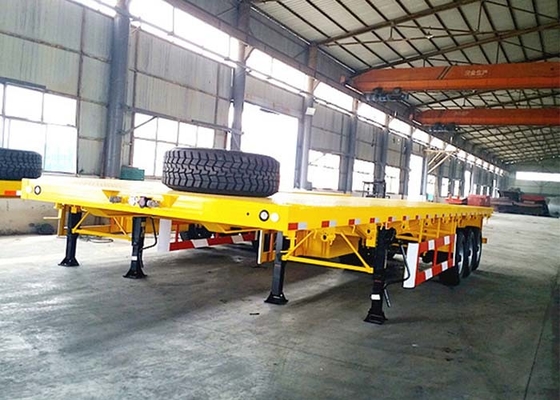

factory:
FAQ:
1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
