Product Details:
Payment & Shipping Terms:
|
Size: | 12500*2500*1550mm | Function: | Transport 20ft 40ft Container |
---|---|---|---|
King Pin: | 90#/50# | Tire: | 12R22.5 |
Axle: | 13 Ton Fuwa Brand | Curb Quality: | 67 Tons |
Bottom Plate: | Q235 | Trailer Axle: | BPW / FUWA |
Condition: | Brand-new/ Customerization Available | Max Payload: | 90T |
High Light: | 20 Foot Flat Deck Trailer 3mm,3mm Flatbed Trailer For Shipping Container,ISO 20 Foot Flat Deck Trailer |
Henan LISHIXIN Logistics Equipment Co., Ltd. was established in 2001. It has nearly 20 years of production experience, complete testing equipment and strong technical force. It is an enterprise specializing in the production of various types of semi-trailers.
With advanced and mature design, development and production technology, our LSXC brand products are exported to countries all over the world and enjoy a high reputation in the United States, the Middle East, Africa, Southeast Asia and Russia, especially Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar. , Vietnam, Thailand, Bangladesh, Tanzania, Mozambique, Congo, Nigeria, Russia and other countries with good feedback.
Now we offer more than 60 types of trailers and our trailers can be customized according to your specifications and design drawings. You are warmly welcome to contact us, we are ready for you!
parameter:
Specification | ||
Name | flatbed semi trailer 3 axle 40 ton 40ft | |
Overall dimension | 12500 *2500 * 1550mm | |
Loading capacity | 40T | |
Axle brand and number | 13TFuwa Brand, 3units | |
Wheel base(mm) | 6880+1310+1310 | |
Kingpin | 50# or 90# | |
Steel Spring | 10/10/10 leaf spring suspension | |
The material of Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm. |
|
Tyre and quantity | 12R22.5 12pieces | |
Landing gear | 28T, double speed operation | |
Platform plate | 3mm Checkered steel plate | |
Brake system | Dual Line braking system ,none ABS. | |
Brake air chamber | Four double and two single chamber | |
Electrical system |
24V,7 pin socket,One set 6-core standard Cable | |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc | |
Tool box | 1 set | |
Spare tire carrier | 2 sets | |
Painting | Optional | |
Packing | Polish with wax before shipping |
1.can be used to transport 20 feet, 7.7 meters, 8.2 meters, 8.6 meters, 30 feet of ISO standard containers or special containers.
2. with self-locking protection device threaded container lock head, better lock the container, eliminate the gap.
3.in order to prevent the container in the lifting after the later move, the lock head impact and cause damage, especially in the rear end of the lock piece added a corner rear limit bezel, increase the safety of the vehicle after lifting.
Why Choose Us
1. LISHIXINTrailer Based on the customer's country roads situation, transport goods and loading
weight requirment,provide semi-trailer solution.
2.LISHIXINhave Experienced sales and engineer support every requirment.
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of semi-trailer with discount price.
5. LISHIIXN have BV SGS CCC ISO WMI Certificate of conformity for the semi-trailer.
6. English operation Manual.
7. LISHIXIN offer free spare parts for every customer, like speeders,spanner etc.

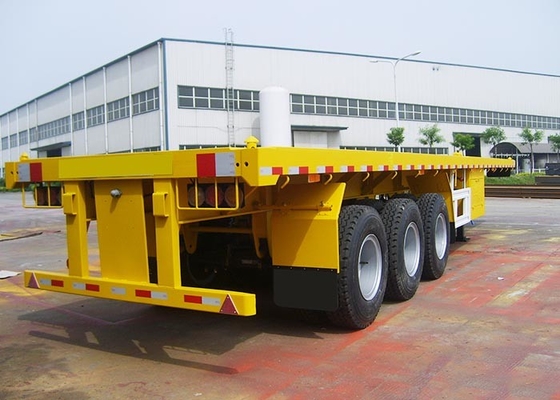

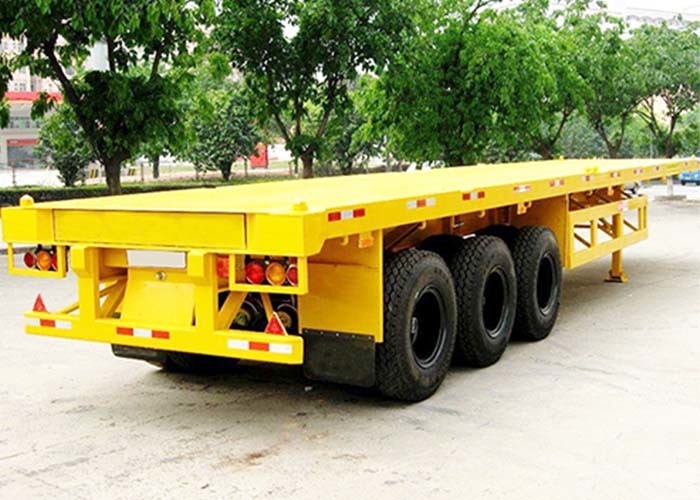

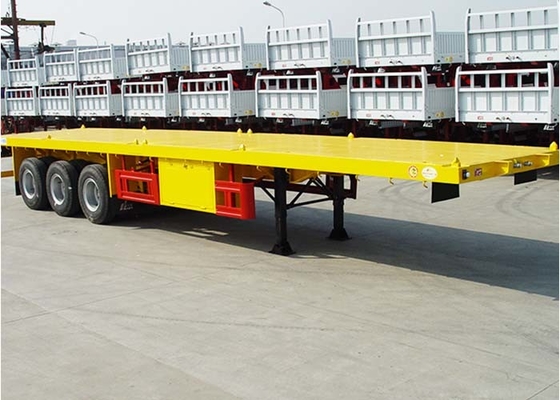

Product display:
details:

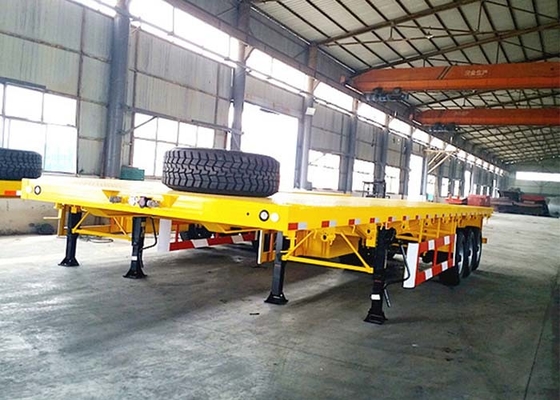

factory:
FAQ:
1. Does your company have its own factory?
Yes, we have a factory ourselves and we have been engaged in this business in China for several years. Our factory is very famous for producing various trailers in Henan, China
2. How do we guarantee the quality?
It is always a pre-production sample before mass production;
Always perform a final inspection before shipment;
3. What can you buy from us?
Flatbed container trailers, cargo trailers, dump trucks, tank trailers, spare parts
4. What services can we provide?
Accepted delivery terms: FOB, CIF, EXW;
Accepted payment currencies: U.S. dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc;
Language: English, Chinese
5. Can you meet my special requirements?
really! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
You are welcome to consult me, we can become partners and good friends
,Welcome to China.
Contact Person: Amanda zhang
Tel: +8617760771335
Fax: 86-371-55980820
