Product Details:
Payment & Shipping Terms:
|
| Size: | 12500*2500*1550mm | Function: | Transport 20ft 40ft Container |
|---|---|---|---|
| King Pin: | 90#/50# | Tire: | 12R22.5 |
| Axle: | 13 Ton Fuwa Brand | Curb Quality: | 67 Tons |
| Bottom Plate: | Q235 | Trailer Axle: | BPW / FUWA |
| Condition: | Brand-new/ Customerization Available | Max Payload: | 90T |
| High Light: | Q235 Flatbed Container Truck,Flatbed Container Truck BPW,BPW 20 Ton Flatbed Trailer |
||
Hot Selling 2 Axis 3 Axis 4 Axis Flatbed Cargo Flat Deck Semi Truck Trailer
Product Introduction:
The flatbed trailer truck is mainly used for transporting heavy, over sized, wide and indelicate goods such as machinery, building supplies or equipment. Generally speaking, flatbed trailer can carry almost anything that can be stacked or strapped down.
They are also used to carry 20, 30, 40, 45, foot containers, thus coming with container locks. The different containers are secured using container locks ready for transportation. They are primarily used for the tra
nsportation of bulk cargo. Flatbed trailer is designed for 20, 30, 40 foot containers with 2,3, or 4 axles accordingly. As always, we are also able to design flatbed trailers to satisfy our customers needs.
Suspension&Leaf Spring
We could provide mechanical suspension and air suspension.
According to the customer's road conditions,we could thicken the suspension.It makes the semi trailer more durable.
Thick suspension and leaf springs can adapt to harsh road conditions.
Tire
Tire types include wired tire,steel wire tire and vacuum tire.You can choose different tires include triangle,Linglong,Shuangqian and other domestic first line brands in China.
Axle
Famous brands like BPW, FUWA are available.
Chassis
In order to prevent the bottom plate from sagging, the bottom plate will be reinforced.
Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance.
They are also used to carry 20, 30, 40, 45, foot containers, thus coming with container locks. The different containers are secured using container locks ready for transportation. They are primarily used for the tra
nsportation of bulk cargo. ST Flatbed trailer is designed for 20, 30, 40 foot containers with 2,3, or 4 axles accordingly. As always, we are also able to design flatbed trailers to satisfy our customers needs.
parameter:
| Dimension (mm) | 6200 / 12480mm*2500mm*1520mm or customized size |
| Tare Weight | 6.5-7Ton |
| Payload | 40T-80T |
| Main Beam | Q 345 Carbon Steel, Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm: Middle plate 6/8 mm |
| Platform | 3mm checkered Plate |
| Twist Locks | 4 pcs or 8 pcs or 12 pcs container lock |
| Axles | 13T16P 2/3/4 pcs, BPW or FUWA etc. |
| Leaf Spring | 90*13-10 4/6/8 sets, |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Tire | 12R22.5-18, 12 pcs |
| Landing Gear | Standard 28Ton, JOST brand or FUWA |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;Two 40L air tanks, ABS Optional |
| Electrical system | 1. Voltage:24V, LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3. Receotacle: 7 wire |
Our advantages:
Quality Assurance
Any of the products can send the inspection and regular inspection.
Price Advantage
Good quality, reasonable price,on time shipping and best service for each customers. We Minimize all loses that may arise from the producers. We respond to the demands and requirements of the companies, we work with in the most effective way and as soon as possible.
Professional Advantage
We have overseas produce and exporting business experience focus on the trailer and truck filed,we used many years visited on many countries.And our company has its own professional design team,technical personnel have many years of experience.

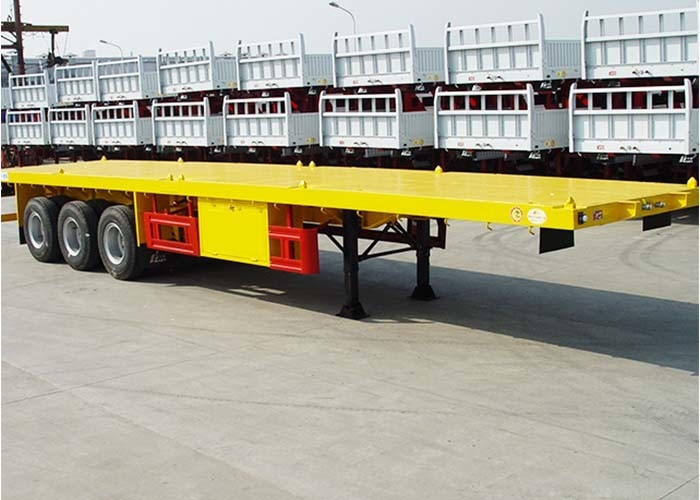

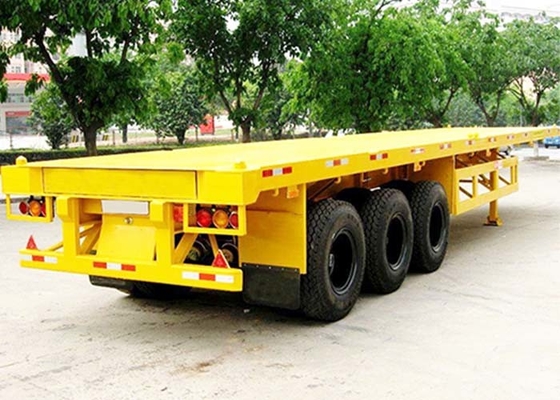

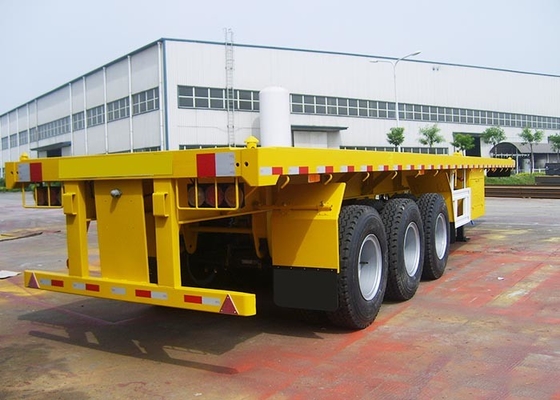

Product display:
details:
Features:
1. Different length available.
2. Type: straight, gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
4. Platform extendable.
5. Twist lock available.
6. Rear dump available.
7. Columns available.

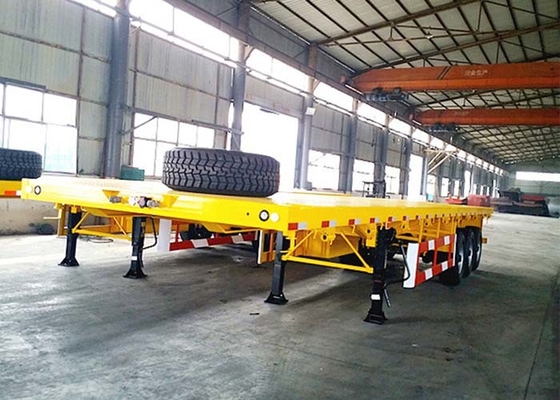

factory:
FAQ:
Q.What's your MOQ?
A.One unit
Q.Can you satisfy my special requirement?
A.Definitely!We can make the trailers or trucks based on your requirement.
Q.What's your payment term?
A.We accept both T/T and L/C
Q.How to trust us?
A.The good faith management is our philosophy,and you are welcome to visit our company at any time.
Q.How about your product quality?
A.Quality always comes first.We have advanced production technology and management team.We always attach great importance to quality controlling from the very beginning,and every unit of product undergoes a strict inspection process.
