Product Details:
Payment & Shipping Terms:
|
| DESIGN TEMPERATURE(℃): | 55 | OPERATING TEMPERATURE(℃): | -40~50 |
|---|---|---|---|
| MDMT(℃): | -40 | NOMINAL VOLUME(L): | 24500L |
| MAX.GROSS MASS(KG): | 35000 | TARE MASS(KG): | 6800 |
| MAX.PAYLOAD(KG): | 22568 | EXTERNAL DEMENSIONS(L/W/H): | 6058/2438/2591 |
| Working Pressure: | 22.8bar | Test Pressure: | 28.6bar |
| Certification: | ISO, ASEM, CCC | Tire Weight: | 3500kg |
| High Light: | 5m3 CSC T50 ISO Tank Container,16.4mm ISO Tank Container Transportation 24500L,15.2mm T50 ISO Tank Container 24500L |
||

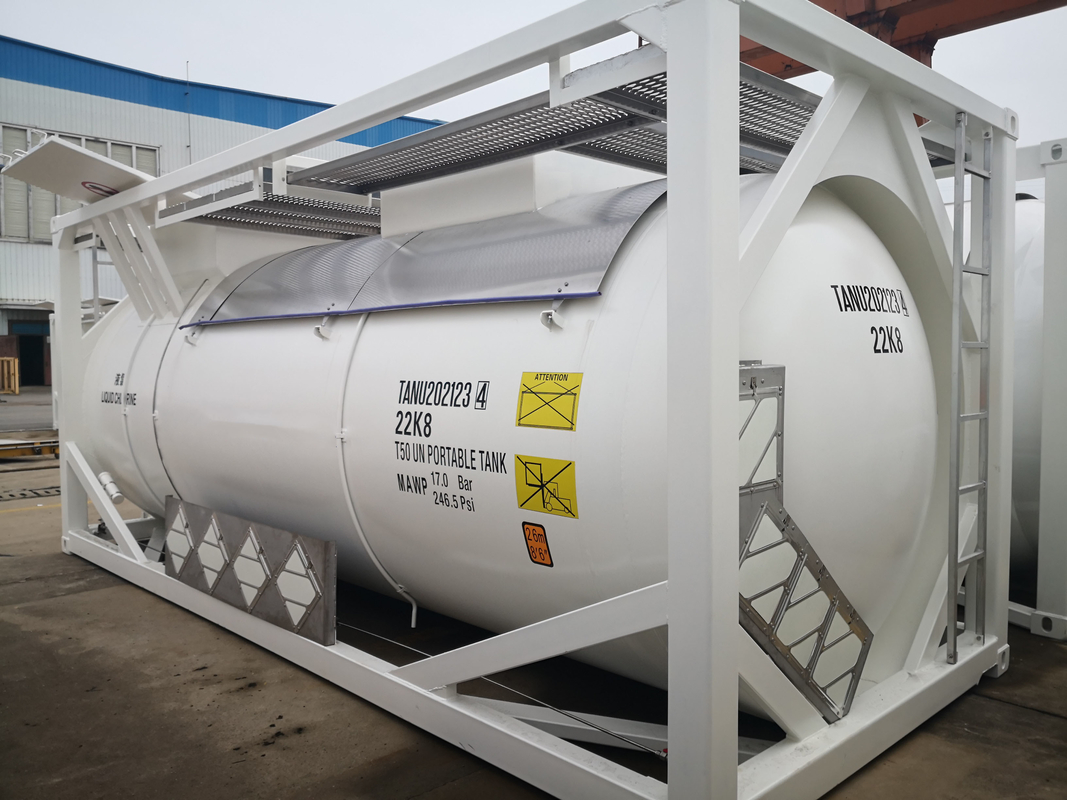

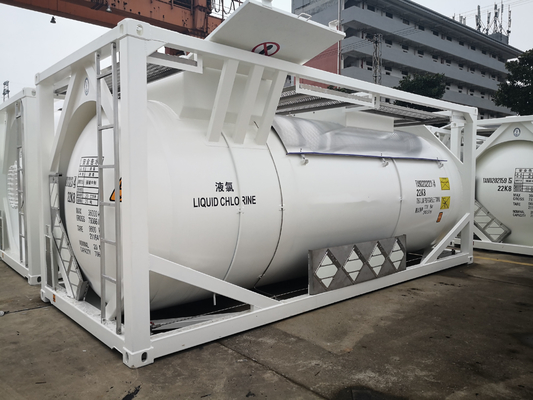

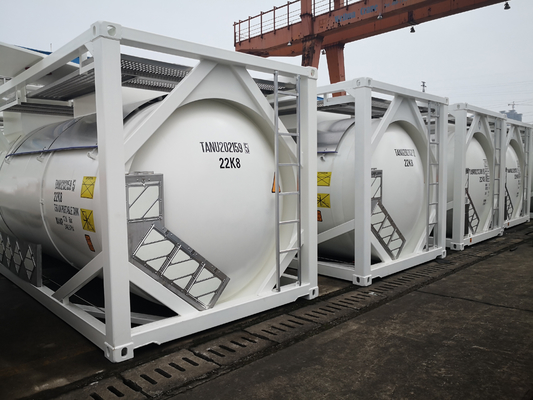

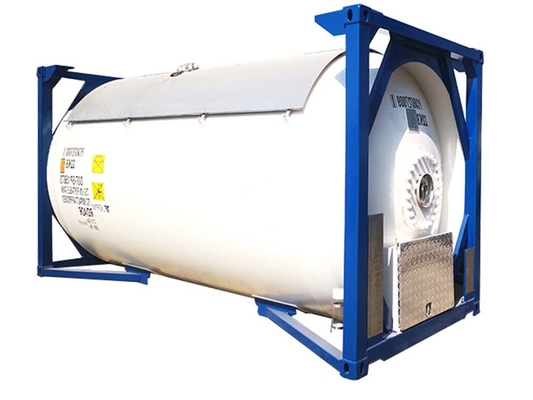

China factory direct sale T50 Chemical Liquid Chlorine Storage ISO Tank Container
Product Description:
We are LPG station overall solution provider!
We can provide you with a full set of equipment of LPG storage and filling station. such as ISO tank
container,5~200m3 LPG storage tank, LPG pump, LPG compressor, LPG filling scale, Liquid level
meter and other LPG accessories.
LPG storage tank:5m3 LPG storage tank, 10m3 LPG storage tank, 15m3 LPG storage tank, 20m3
LPG storage tank, 25m3 LPG storage tank, 30m3 bulk LPG storage tank,35m3 bulk LPG storage
tank, 40m3 bulk LPG storage tank, 50m3 bulk LPG storage tank,60m3 bulk LPG storage tank, 80m3
bulk LPG storage tank, 100m3 bulk LPG storage tank,120m3 bulk LPG storage tank, 150m3 bulk LPG
storage tank, 200m3 bulk LPG storage tankA Professional Manufacturer for LPG Gas Station Over 40
years & LPG Station Overall Solution Provider.
ASME Standard T50 20ft LPG ISO Tank Container
Type: T50
Material: Stainless Steel
Standard: IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Type: Vertically Mounted & Horizontal Mounted
Design Temmperature:-40 degree celsius to +55 degree celsius
Certificate: csc certificate like GL/LR/BV/ABS
M.G.W: 30480 kgs
loading Medium: liquid chlorine
parameter:
| Type | 20 ISO frame,UN portable tank,T50 |
| Vessel | ASME VIII Div 1& IMDG etc. |
| Shell Material |
Corten Stel-EN10028/SA-299 Shell-16.4mm minimum Head-15.2mm minimum |
| Sunshield | 2mm marine grade aluminium |
| Frame dimensions | 20(L)×8(W)×86(H) |
| Tare weight(approx) | 7,500kg |
| MGW | 34,000kg |
| Working pressure | 22.8bar |
| Test pressure | 28.6bar |
| Approvals | Lloyds or BV Construction Certificate,IMDG,CFR49,ADR/RID,AAR 600,CSC,TC,TIR,ISO UIC,US/UK DOT |
| Baffles | Provision only |
| Manhole Cover | Dome end-dished to allow fitting of level gauge |
| Relief Valve | 1×3" with provision for bursting disc and manometer |
| Valve Cabinet | Rear end of tank with aluminum lockable hinged door cabinet holds all valves,pressure gauge and themometer |
product details:
Our factory:
LISHIXIN ISO tank (tank container) is a kind of container installed in a fastening external frame. It is used
to transport liquid goods such as alcohol, oil, liquid food, chemicals and so on. We can also produce the
tank trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, Water, Liquid chemical,
Food oil etc.
According to the Material, we have Carbon Steel / Stainless Steel / Aluminum Alloy tank container.
We are manufacturer, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time.
Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you.
Our cooperation can be ODM or OEM mode.
FAQ:
Q: What kinds of tank containers could you provide?
A: 20ft ISO tank container, like standard liquid tanks, electrical heating tanks, reefer tanks, food grade tanks, baffle tanks, swap tanks, gas tanks, H2O2 tanks, AHF tanks, bitumen tanks, different types of lining tanks, etc, and 10ft tanks, offshore tanks, IBC/SBC ,etc.
Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and Railway?
A: Yeah,of course, but the price will be very different by different transportation ways; So kindly please let me know your exact transportation ways before the quoting; And also the certificates will be ready after the tank container passed all kinds of the testing &inspection.
Q: Can I have the drawings of this ISO storage tank containers?
A: Yeah, the existing simple similar drawings of the tank container for your reference only for the beginning, will make the more precise drawings after getting the down payment, and will send this drawing to you for your confirmation before production.
Q: How can I pay the money without risk?
A: You can pay the money to us via Alibaba Trade Assurance, then the alibaba can guarantee your money safe and the delivery on time.
Q: Do you provide OEM Service?
A: Yes, we have a first-class team and could design as per your requirement.
Q: What if my question that wasn’t answered in the FAQ?
A: Contact me or choose the sales to consult directly. We're always happy to help!
