Product Details:
Payment & Shipping Terms:
|
| Dimension: | 12400mm*2500mm*1575mm | Tare Weight: | About 6.2T |
|---|---|---|---|
| Loading Capacity: | 30-60T | Condition: | New |
| Voltage: | 24V | Light: | LED Light |
| Axle: | 13T/16T,FUWA/BPM Brand | Support Leg: | JOST Brand |
| High Light: | 3 Axles 40ft Skeleton,Skeleton Container Semi Trailer BPM,3 Axles Skeleton Container Semi Trailer |
||
1. Market share is far ahead.
2. Specialized design, highly matched customer needs(Port skeleton car, dangerous goods skeleton car, logistics skeleton car, refrigerated skeleton car four series)
3. Unified procurement of raw materials, accessories quality is guaranteed.
4. The chassis is solid and the brakes are faster and more stable.
5. Laser cutting machine material, robot welding, electrophoresis spray powder and paint process and other intelligent production equipment, so that products more reliable and durable.
|
Dimension
|
12400mm*2500mm*1575mm(Size can be choose freely)
|
|
Tare Weight
|
About 6.2T
|
|
Loading Capacity
|
30-60T
|
|
Axle
|
13T/16T,FUWA/BPM Brand
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
|
|
Suspension
|
Mechanical suspension(Germany Type or America Type)or Air suspension
|
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer(especial for exporting market)
|
|
King pin
|
JOST brand 2.0 or 3.5 inch
|
|
Support leg
|
JOST brand
|
|
Main beam
|
Height:500mm,upper plate is 14mm,middle plate is 8mm,
Down plate is 16mm;Material is Q345B Steel. |
|
Side beam
|
16mm channel steel(Material is Q235steel).
|
|
Bottom platform
|
3mm diamond steel plate
|
|
Brake chamber
|
WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;Two pieces of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist Locks
|
Four,Eight or Twelve pieces(Lifting type or Twist screw type)
|
|
Valve
|
WABCO valve(especial for exporting market)
|
|
Light
|
LED light(especial for exporting market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways(7 wire harness)
|
|
Tool box
|
One piece,1m×0.5m×0.5m(Size can be choose freely)(equipped with 1 unit
Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2
coats of final paint |
|
Shipping Terms:
|

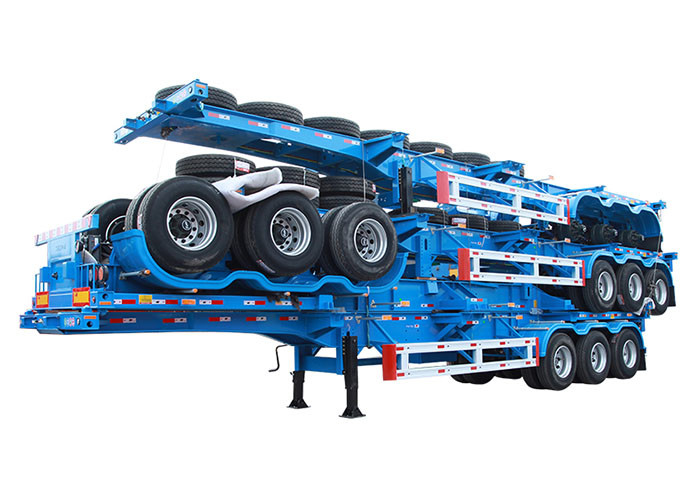

By bulk cargo carrier,RORO or 40HQ container
|

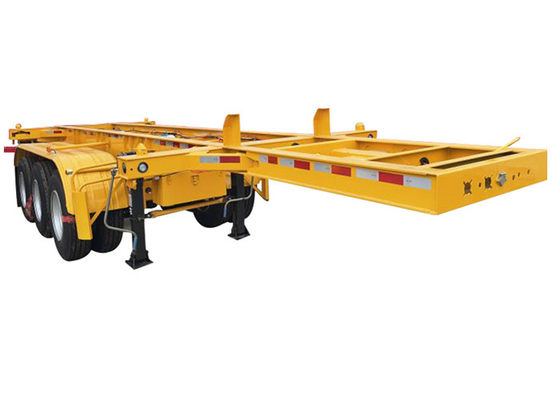

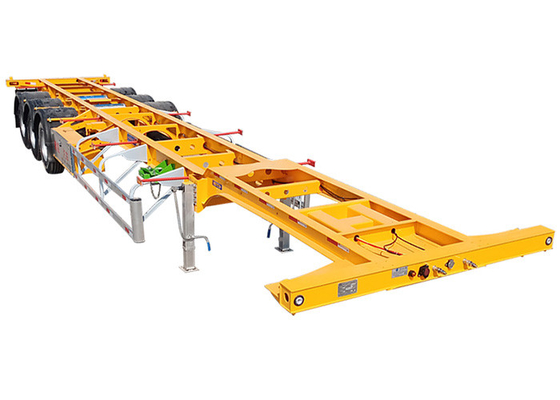

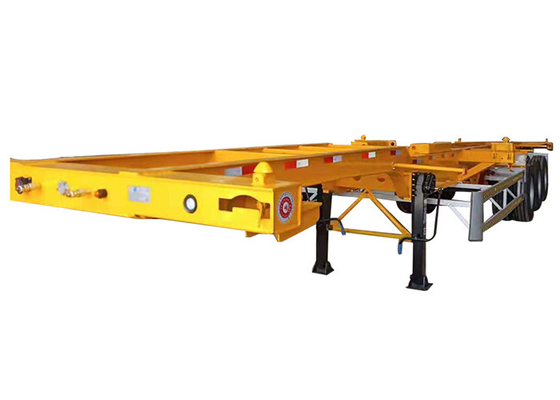

Skeleton Container Semi Trailer Of Details:
Skeleton Container Semi Trailer Of Our Advantages:
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.
Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
Q: our raw materials?
A: the ISO system, an international standard for all materials, has certified factories and parts factories.
Q: Our advantages?
A: We have a rich design, production and service team. We have our own customs broker and shipping company that we have cooperated with for many years.
