| Material: | Carbon Steel | Side Fence: | 600mm-3000mm |
|---|---|---|---|
| Loading Capacity (T): | ≤ 60 T | Condition: | New |
| Voltage: | 24V | Twist Locks: | Optional |
| Tire: | 12.00R22.5/ 315 80R22.5 11.00R20 | Rim: | 9.00-22.5 8.5-20 |

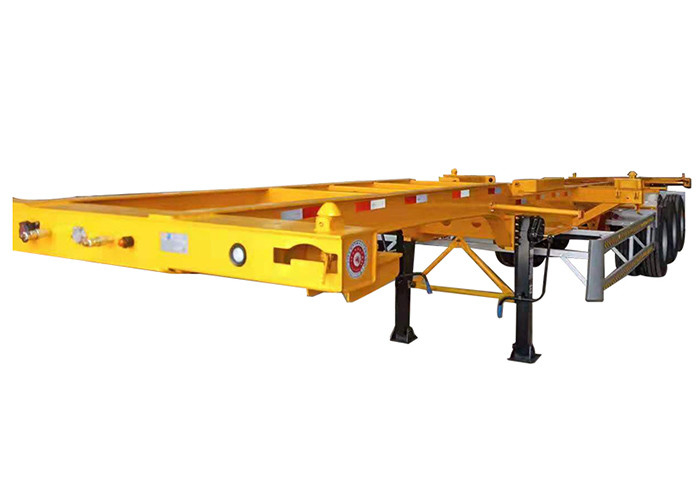

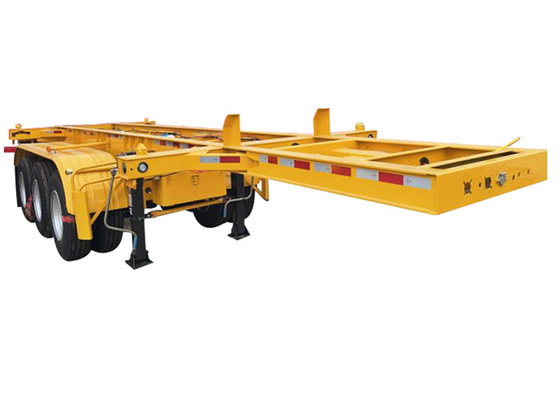

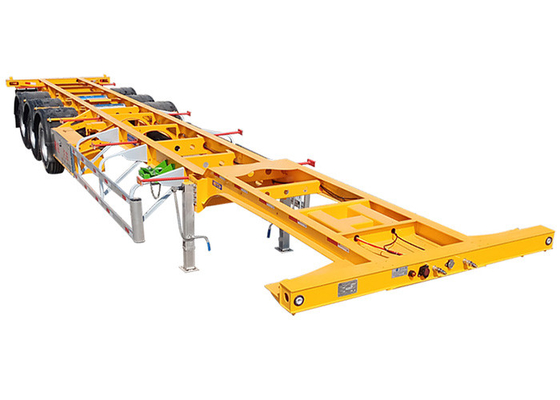

| High Light: | Fuwa Skeleton Container Semi Trailer,Skeleton Container Semi Trailer 24V 13 Ton,24V 13 Ton Flatbed Truck Trailer |
||
1. The length can be from 10meters to 15meters.Most customers choose 40ft length.
2. Side board height can be from 600mm-3000mm.
3. Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.
4. The material can be high strength Mn carbon steel or aluminum material.
5. Flat deck can be straight beam or step deck type.
6. The trailer main beam can be telescopic extension to realize the length extendable.
7. Can be with container twist lock to connect with the container.
8. Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.
|
Tare Weight
|
About 6.5— 7.6T
|
|
Dimension
|
8500mm-13000mm*2490mm-2500mm*2860mm-2900mm (Size can be choose freely)
|
|
Loading Capacity (T)
|
≤ 60 T
|
|
Axle
|
13 T/16T, FUWA /BPW /Huajing Brand
|
|
Rim
|
9.00-22.5 8.5-20
|
|
Tire
|
12.00R22.5/ 315 80R22.5 11.00R20
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type)
|
|
Or Air suspension (China brand or BPW brand )
|
|
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
|
Support leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
|
Main beam
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
|
|
down plate is 16mm ; Material is Q345B Steel .
|
|
|
Side beam
|
16mm or 18mm channel steel ( Material is Q235steel ).
|
|
Side Wall
|
600mm-1500mm ,or can be do box type ,for choose
|
|
Brake chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist Locks
|
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
|
|
Valve
|
WABCO valve (especial for exporting market)
|
|
Light
|
LED light (especial for exporting market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways (7 wire harness)
|
|
Tool box
|
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) |
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|
Shipping Terms:
|

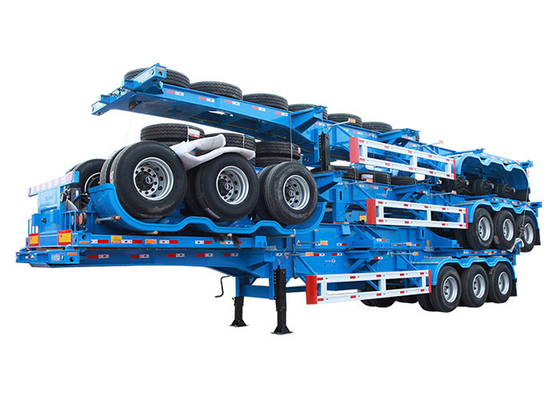

By bulk cargo carrier, RORO or 40HQ container.
|
Side Wall Semi Trailer Of Details:
Side Wall Semi Trailer Of Our Advantages:
