| Transmission Model: | HW19710 | Emission Standard: | Euro 2/3/4/5 |
|---|---|---|---|
| Drive Wheel: | 6X4 | Tire Number: | 10+1 |
| Horsepower: | 371/375/420hp | Cab: | HW76 |
| Engine Model: | WD615.47 | Tyre: | 1200R20 |
| High Light: | HW76 Truck Tractor Head,ruck Tractor Head 420Hp,420Hp Howo A7 Tractor Head |
||

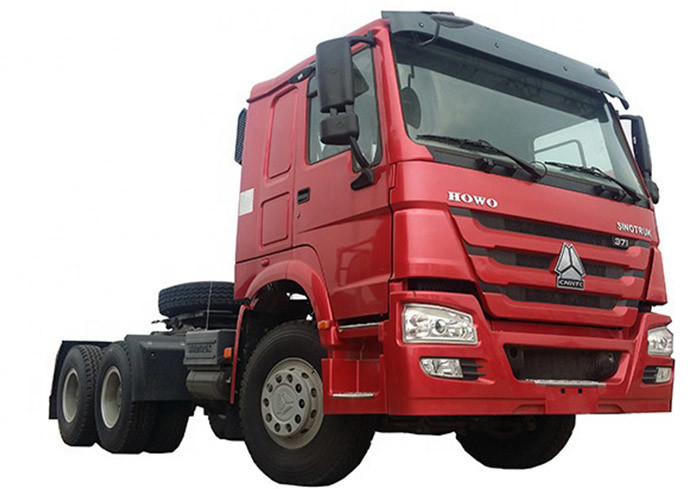

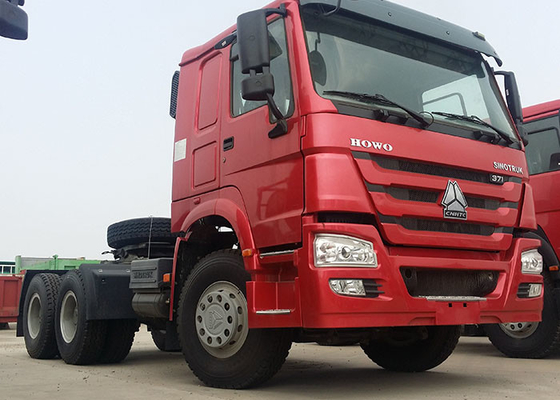

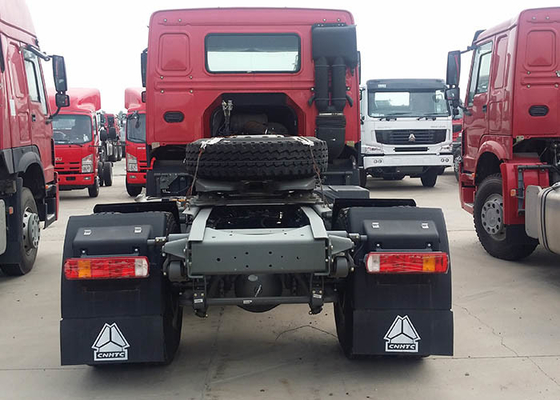

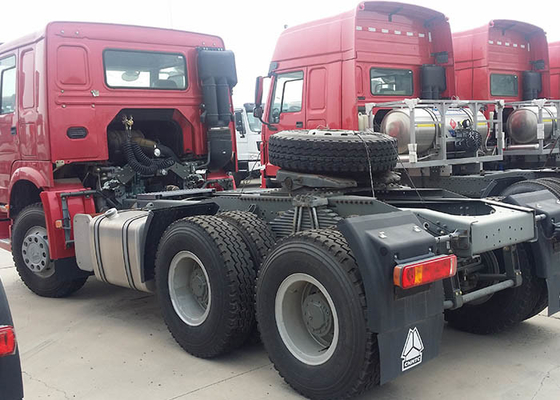

6x4 New Sinotruk Howo Truck Tractor Head 371Hp 375Hp 420Hp diesel engine 10 Tires
Truck Tractor Head Of Product description:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
This model is the proven product of SINOTRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded 16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Truck Tractor Head Of Product parameters:
| SINOTRUK HOWO TRACTOR TRUCK | ||||||
| SPECIFICATION | ||||||
| Engine | Modal | WD615.69 | WD615.47 | D12,42 | ||
| Emission | Euro 2 | Euro 2 | Euro 2 | |||
| Displacement | 9.726L | 9.726L | 11.596L | |||
|
Max Torque ( Nm/rpm) |
1350/1100-1600 | 1500/1100-1600 | 1820/1100-1600 | |||
| Type | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |||||
| Transmission |
SINOTRUK HW series 10/12 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. HW19712, 12 forward, 2 reverse HW19710, 10 forward, 2 reverse |
|||||
| Chassis | Three layers frame 8+8+8mm,U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members | |||||
| Front Axle | HF9 for heavy truck, rated load of 9t. drum-type | |||||
| Rear Axles | HC16 with double reduction, central single reduction plus planetary wheel reduction and with differential lock | |||||
| Drive Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Fuel Tank | 400 L Aluminum fuel tank with locking fuel cap, fitted to the off side of the chassis | |||||
| Steering | ZF power steering, model ZF8118,hydraulic steering with power assistance. | |||||
| Braking System |
Service brake: dual circuit compressed air brake. Parking brake(emergency brake):spring energy, compressed air operating on rear wheels |
|||||
| Auxiliary brake: engine exhaust brake | ||||||
| Tyres |
Standard is 12.00R20, with spare parts radial tyres 315/80R22.5, 295/80R22.5, 12R22.5 tubeless tire is optional |
|||||
| Electrical System | Operating voltage | 24V,negative grounded | ||||
| Starter | 24V.7.5Kw | |||||
| Alternator | 3-phase,28V,1500W | |||||
| Batteries | 2*12V,165Ah/180Ah | |||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||||
| Instrument | Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle | |||||
| combined indicators of compressed air pressure, coolant temperature, engine oil pressure | ||||||
| battery charging | ||||||
| Dimensions (mm) | Wheelbase | 3225+1350,3200+1400 | ||||
| Front overhang | 1500 | |||||
| Rear overhang | 725 | |||||
| Approach angle(°) | 16 | |||||
| Departure angel(°) | 70 | |||||
| Overall (L*W*H) mm | 6800*2496*3835 | |||||
| Weight(kg) | Curb weight | 8800 | ||||
| Front axle loading capacity | 9000 | |||||
| Rear axle loading capacity | 18000/18000 | |||||
| Towable Total Mass(kg) | 40000 | |||||
| Performance Parameters | Maximum driving speed(km/h) | 90-102 | ||||
| Economic Speed(km/h) | 72-82 | |||||
| Maximum Gradability(%) | 35 | |||||
| Minimum Turning Diameter(m) | 15 | |||||
| Consumption(L/100km) | 30-40 | |||||
| Cab |
HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. HW 79 (two bed) HW70(No bed) |
|||||
