Product Details:
Payment & Shipping Terms:
|
| Medium: | Sulfur Dioxide | Size: | 20 Feet |
|---|---|---|---|
| Certification: | LR、BV、CSC、CCS | ||
| High Light: | High Capacity T50 SO2 Tank Container,T50 SO2 Tank Container Storage Transportation,T50 SO2 Tank Container 20 feet |
||

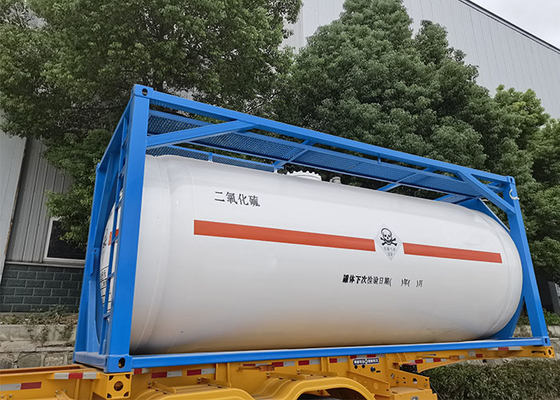

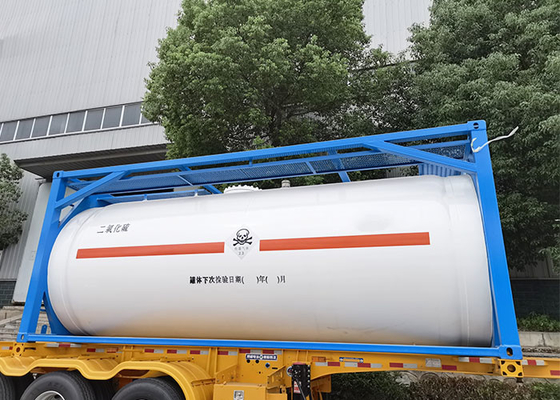

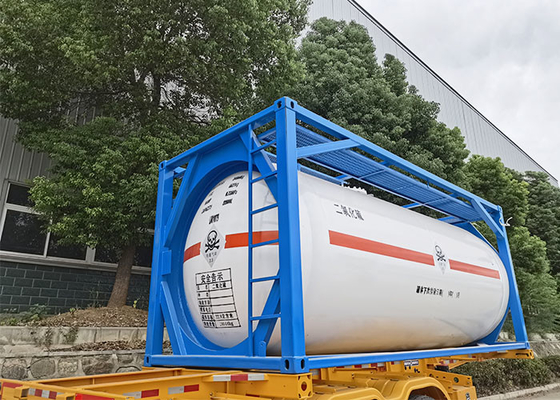

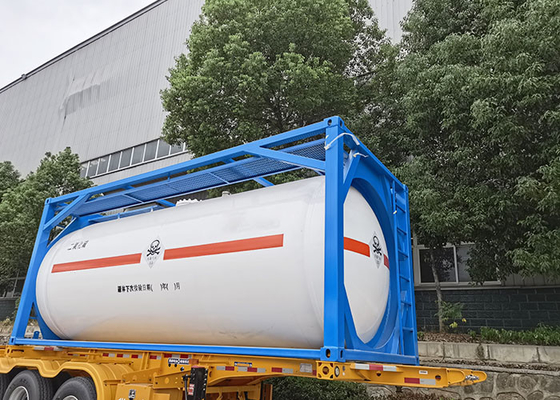

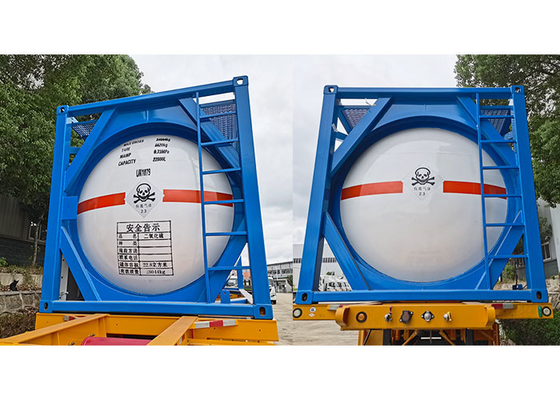

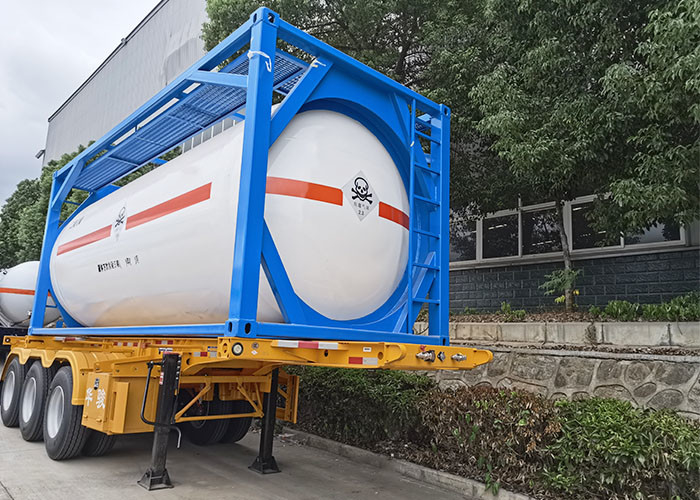

High capacity storage/transportation container tank T50 SO2 Tank Container
Product Description
We are LPG station overall solution provider!
We can provide you with a full set of equipment of LPG storage and filling station. such as ISO tank container,5~200m3 LPG storage tank, LPG pump, LPG compressor, LPG filling scale, Liquid level meter and other LPG accessories. LPG storage tank:5m3 LPG storage tank, 10m3 LPG storage tank, 15m3 LPG storage tank, 20m3 LPG storage tank, 25m3 LPG storage tank, 30m3 bulk LPG storage tank, 35m3 bulk LPG storage tank, 40m3 bulk LPG storage tank, 50m3 bulk LPG storage tank, 60m3 bulk LPG storage tank, 80m3 bulk LPG storage tank, 100m3 bulk LPG storage tank,120m3 bulk LPG storage tank, 150m3 bulk LPG storage tank, 200m3 bulk LPG storage tank A Professional Manufacturer for LPG Gas Station Over 40 years & LPG Station Overall Solution Provider.
parameter:
| Description and Function Target | ||
| Items | Unit | Parameter |
| DESIGN CODES AND REGULATIONS | T50 UN PORTALBE TANK(IMDG,49 CFR,RID/ADR) TIR,UIC,CSC,TC,USDOT,FRA,IMDG-CODE. GB150-98 ASME-5-1 JB/T4781-2005,Recognized Register:BV Certificates. | |
| Tank Shape | 40Feet Column Shape | |
| Design Pressure | 1.8MPA | |
| Working Pressure | 1.8MPA | |
| CONTENTS | LPG/Propane (UN1075) | |
| DESIGN SPECIFIC GRAVITY | 1.25 KG/L | |
| External dimension/Frame Dimension(LxWxH) | Meter | 12.192*2.438*2.591 |
| TOTAL VOLUME(NOMINAL ±1%) | m³ | 52CBM; Filling rate 0.43; |
| Gross Mass | kg | 40000 |
| Tare Weight | kg | 18000 |
| Payload | kg | 22000 |
| Design temperature | ℃ | -40 to +55 |
| Working temperature | -40 to +55 | |
| Testing Pressure | 2.2MPA: Hydraulic Pressure test | |
| Corrosion Degree | 0 | |
| Gastight Test Pressure | 1.8MPA | |
| Vacuum Test Pressure | 0.16MPA | |
| Welding Join Efficiency | 1 | |
| Radiographic Inspection | 100% X-Ray | |
| Tank Materials | GBQ345DR,High quality mild steel for container | |
| Thickness(mm) | 12 | |
| End Enclosure(mm) | 14 Bufferfly flat head | |
| Compound Manhole | DN500, 1.8+25%Mpa Equipped with safety valve opening pressure |
|
| Protective Frame(mm) | 800*750*150 | |
| Liquid Valve | Dg50 FORT VALE | |
| Gas Valve | Dg50 FORT VALE | |
| Liquid Lever | HH/2 FORT VALE | |
| Pressure | Y100 | |
| Thermometer | WSS412 FORT VALE | |
| Built-in Safety Valve Spring | Dg80 | |
| Adiabatic Form | Sunshade | |
| Guardrail of Ladder(mm) | W=400 | |
| Allowable stacking weight | 192000 | |
product details:
Certificate:
Our factory:
FAQ:
1. Are your iso tank container for sale brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
2. Does your iso tank containers for sale meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
3. Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
4. Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
5. Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
