Product Details:
Payment & Shipping Terms:
|
| Size: | 12500*2500*1550mm | Function: | Transport 20ft 40ft Container |
|---|---|---|---|
| King Pin: | 90#/50# | Max Payload: | 60T |
| Tire: | 12R22.5 | Material: | Steel |
| Axle: | 13 Ton Fuwa Brand | ||
| High Light: | 40ft Flatbed Semi Trailer,Flatbed Semi Trailer With Container,Twist Locks Flatbed Semi Trailer |
||
40ft flatbed semi trailer/Flatbed Semi-Trailers with Container Twist Locks for Sale/ container flatbed semi trailers
Our factory Established from 2009, is real factory with CCC BV ISO WMI certificates and
experience in exporting , we can design and manufacture according to ur requests.In order
to provide customers with the mosteconomical solution,we will choose 2 axle or 3 axle
according to the media and loading capacity.
Factory directly sale, good quality with low price.
Product introduction
1) Reinforced main beam and side beam to ensure high loading.
2) Adopting China made best brand FUWA axle, Triangle tyres
3) 12 pcs container lock to transport 1 x40ft container or 2 x 20ft container
parameter:
| product name | 40-foot flat container transport truck | ||
| Transport medium | Bulk cargo | ||
| Dimensions | 12500*2500*1560mm | ||
| Self-respect | About 7 tons | ||
| Warranty/Certificate | 12 months | ||
| Production cycle | 15 days | ||
| Curb quality | 67 tons | ||
| Load | 60 tons | ||
| Specification | |||
| Dimensions | 12500*2500*1560mm | ||
| Tow pin height | 1300mm | ||
| Wheelbase | 1310mm | ||
| Wheel base | 1840mm | ||
| Frame body configuration | |||
| Item | Material | Specification | |
| Beam | Q345 | "The height is 500mm, the upper wing plate is 14mm, the lower wing plate is 16mm, and the vertical plate is 8mm; " |
|
| beam | Q345 channel steel | 100mm channel steel | |
| Edge beam | Q345 channel steel | 160mm channel steel | |
| Bottom plate | Q235 | 3mm | |
| Accessories | |||
| Suspension | 3-axis heavy machinery suspension | Leaf spring | 6 racks-90*13*10 |
| Axle specifications/brand | 13T/Fuhua | Number of axles | 3 pieces |
| Tire specification/brand | 12R22.5 | Number of tires | 12 Article |
| Steel ring specification/brand | 9.0-22.5 | Number of steel rims | 12 |
| Outrigger specifications/brand | 28T/Yahua | Traction pin specifications | 50# or 90# interchangeable |
| Brake system | |||
| Brake valve brand | WABCO | Brake chamber specifications/quantity | T30/30-6 only |
| Brake system | Emergency brake system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air storage tanks | ||
| Electrical circuit system | |||
| Circuit socket | 7-hole socket | Voltage | 24V |
| Lamps | LED lights | Two rear tail lights (including two steering lights, two brake lights, two constant lights), 8 side lights, and two rear triangle reflectors; | |
| Appendix | |||
| 1 tool box | tool:Axle wrench, rocker | ||
| 1 spare tire rack | Water tank | ||
| Lock hands | 8 | ||
Features:
1. Multi functional design,ISO containers,timbers,bulk cargo,bagged cement or grain,animals
transportation
2. Side wall removable,one driver can easily handle it
3. Main beam warranty 2 years
4. World wide semi trailer parts brand like BPW,WABCO,JOST,brand
Henan Lishixin Logistics Equipment Co., Ltd. is located in Zhengzhou Free Trade Zone,
Henan Province, China, with a registered capital of US$3,500,000. Luxxin specializes
in the research and development, mass production and sales of 20FT, 40FT flatbed
semi-trailers, low-bed semi-trailers, skeleton semi-trailers, and other special logistics
and transportation equipment. Relying on the abundant transportation advantages
and resources in Central China, Li Shixin is committed to providing global customers
with high-quality and cost-effective transportation equipment.

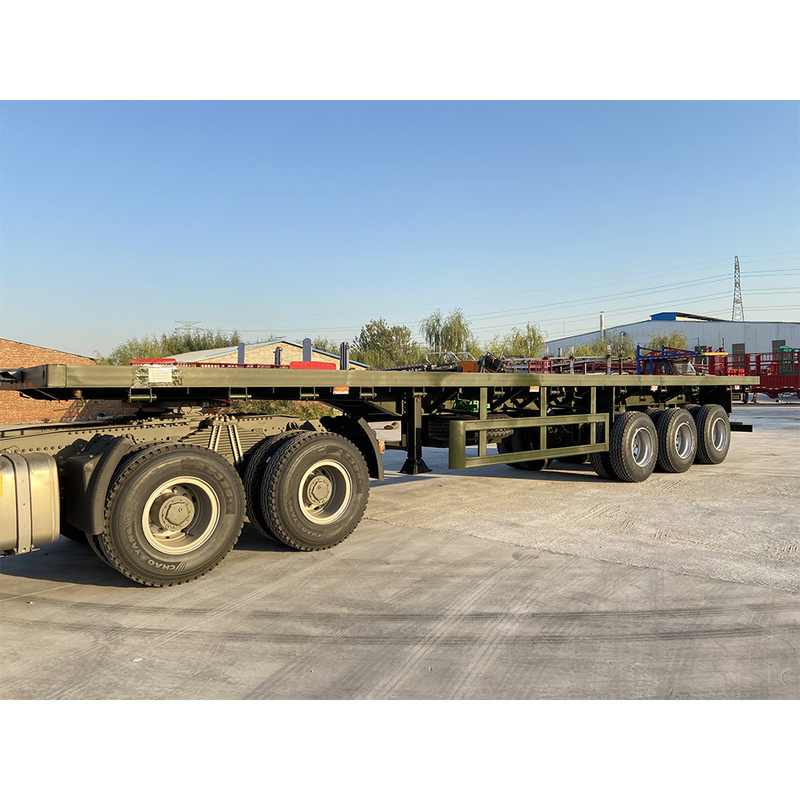

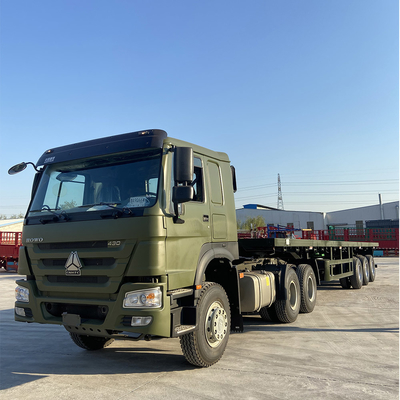

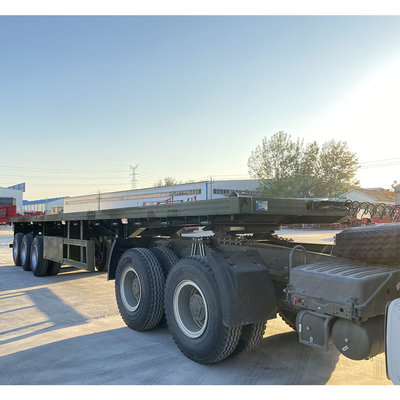

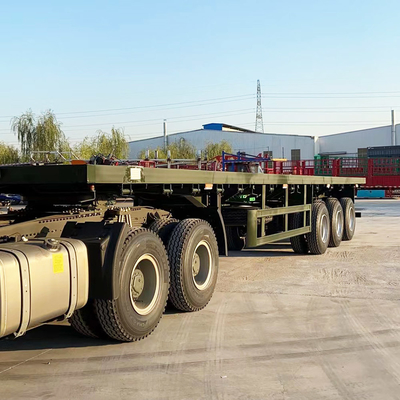

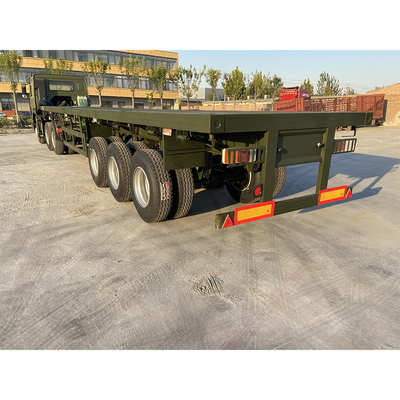

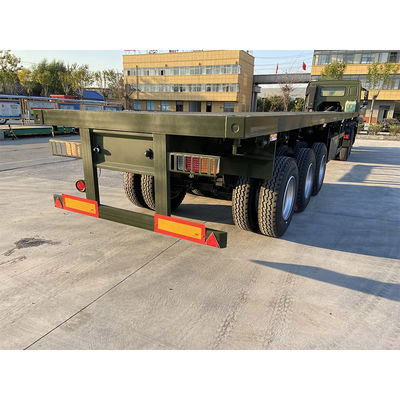

Product display:
details:
factory:
certification
FAQ:
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly. Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set
