Product Details:
Payment & Shipping Terms:
|
| Type: | Semi-trailer | Leaf-Spring: | 10 Pcs |
|---|---|---|---|
| Axle: | 13/16/18 T | Suspension: | Heavy Duty Mechanic Suspension |
| Main Beam Material: | Q345B Manganese Plates | Color: | Custom's Requirement |
| Condition: | New | Brake System: | WABCO |
| High Light: | 4 Axles Flatbed Truck Trailer,Manganese Plates Flatbed Truck Trailer,Q345B Flatbed Truck Trailer |
||
| Dimension(Optional) | Axle No. | Rated Load (Kg) | Tire No. | Tire Size | |
| 20ft | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact With Supplier) | |
| 40ft 45ft 48ft 53ft | 3 | 60000 | 12 | ||
| 40ft 45ft 48ft 53ft | 4 | 75000 | 16 | ||
| Wheel Base (Mm) | 1310 | ||||
| Leaf-Spring Pcs | 10 | ||||
| Axle | 13/16/18 T | ||||
| Suspension | Heavy Duty Mechanic Suspension With Leaf Springs | ||||
| Main Beam Material | Q345B Manganese Plates, Automatic Submerged Arc Welded | ||||
| Brake System | Dual Line Braking System With Automatic Braking System/Chambers | ||||
| Brake Air Chamber | Double Model | ||||
| Kingpin | 2' Or 3.5' Interchangeable | ||||
| Landing Gear | 28T Loading Capacity With 80T Static Lifting Capacity. | ||||
| Platform | 4-6 Mm Diamond Steel Plate | ||||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
| Brake Air Chamber | Four Double And Two Single Chamber | ||||
| Electrical System | 24V, 7core Socket, Lights According To European Standards. | ||||
|
Mainbeam Size |
Upper Plate | 14mm | |||
| Lower Plate | 16mm | ||||
| Mid Web | 8 Mm | ||||
| Height | 500-520mm | ||||
| Tool Box | 1 Box Of Standard Tools | ||||
| Spare Tire Carrier | 2 Sets | ||||
| Color And Logo | Depends On The Buyer's Requirement. | ||||
| Pin Height | According To The Height Of The Tractor Saddle. | ||||
| Painting | Three Coats Painting; Any Color Will Be Available | ||||
| Other Specifications | The Frame Can Be Flat Plate Style And Skeleton Style.Twist Lock Settings Installed 12 Pics, 8 Pics, And 4pcs To Satisfy The Containers With Different Sizes For Convince. | ||||
| Application | For 2x20ft Or 1x40ft Containers Transport | ||||

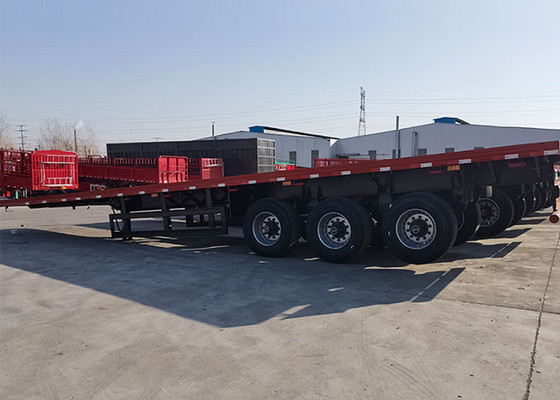

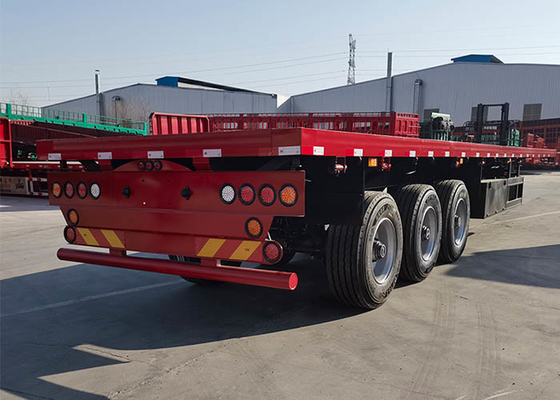

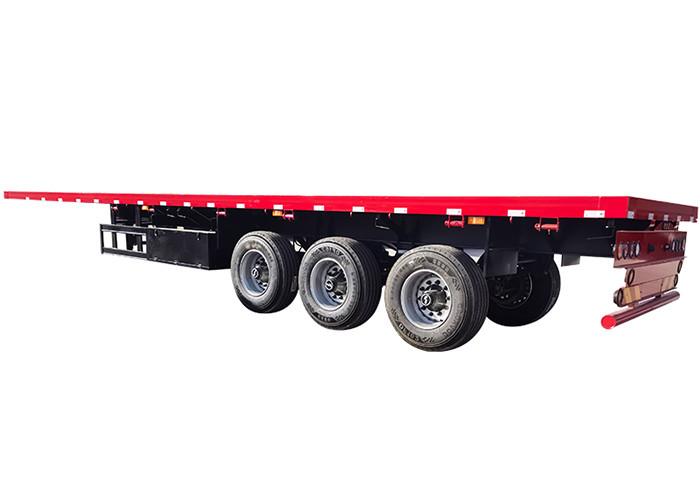

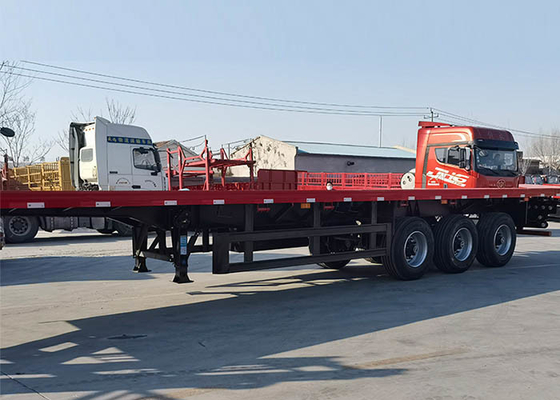

Flatbed Truck Trailer Of Details:
Workshop of Dump Semi Truck Trailer:
Flatbed Truck Trailer Of Advantages:
1. Extensive usage Fast and efficient. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.
2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
3. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles. The quality of this product is reliable,extensive usage, has become the preferred models of middle&long-distance freight vehicles.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
