Product Details:
Payment & Shipping Terms:
|
| Type: | Semi-trailer | Tare Weight: | About 7.1T |
|---|---|---|---|
| Loading Capacity(ton): | ≤60T | Dimension(mm): | 12500x2500x1550mm |
| Axles: | 3 Axles, 13T/16T ,FUWA/ BPW | Color: | Custom's Requirement |
| Tire: | 12 Units, 12.00R22.5 Or 315/80R22.5 | Rim: | 9.00-22.5 Or 9.75-22.5 |
| High Light: | 60 Tons Flatbed Truck Semi Trailer,FUWA Flatbed Truck Semi Trailer,3Axles Flatbed Truck Trailer 40 FT |
||
40 ft Flatbed Semi Trailer is the most popular model, container flatbed trailer is designed for transporting 40/20ft containers and loose cargo. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.
| Tare Weight | About 7.1T |
| Dimension(mm) | 12500x2500x1550mm |
| Loading capacity(ton) | ≤60T |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) (specially intended for oversea market) |
| valve | WABCO valve (specially intended for oversea market) |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |

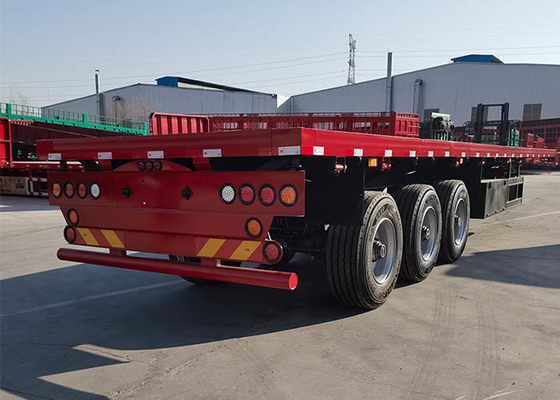

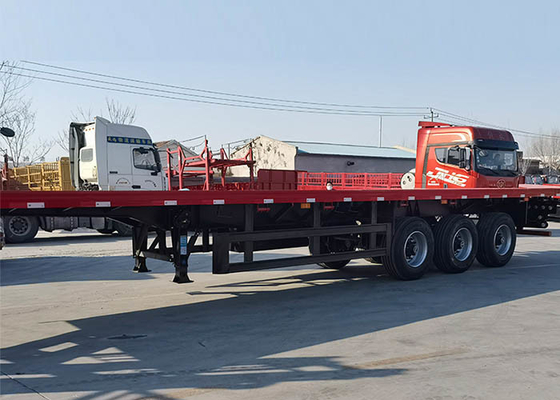

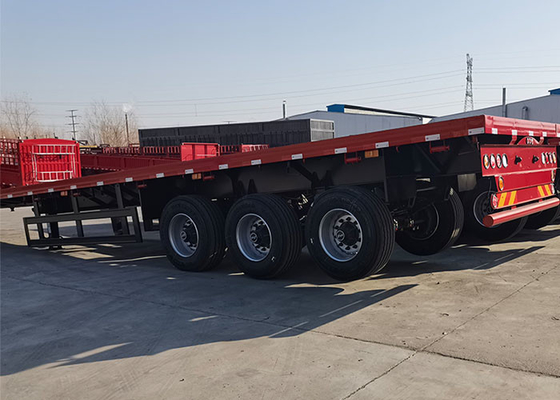

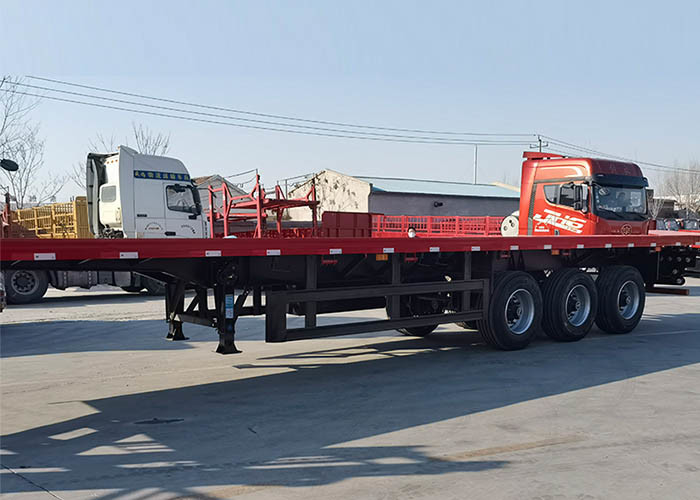

Flatbed Truck Trailer Of Details:
Workshop of Dump Semi Truck Trailer:
Flatbed Truck Trailer Of Advantages:
1. Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
6. use the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %.
7. Hight Quality container locks, make sure the stable and safety of the loads.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
